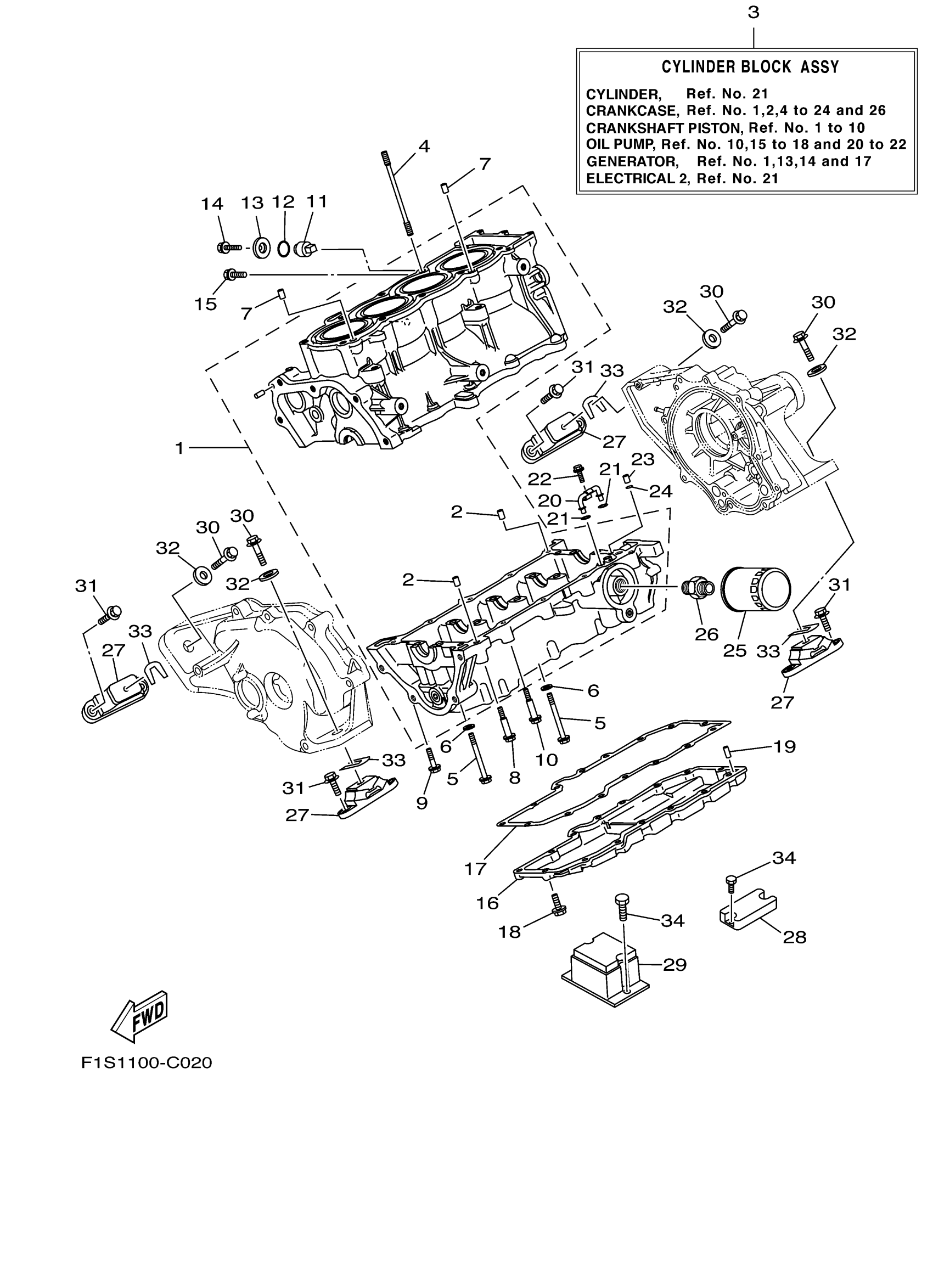

Yamaha FX1100CC (FX High Output (Cali.)) F1S11 2004 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6B6-15100-00-00

$2,995.44

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

CYLINDER BLOCK ASSY

6B6-W009B-01-8P

Unavailable

4

BOLT, STUD

90116-10619-00

$9.17

5

BOLT, WASHER BASED

90105-093A5-00

$8.98

6

WASHER, PLATE(1AA)

90201-096J9-00

$2.61

7

PIN, DOWEL(3VD)

99530-10114-00

$2.13

8

BOLT

90109-06051-00

$5.00

9

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

10

BOLT, FLANGE

90105-06M17-00

$5.29

11

ANODE

67F-11325-00-00

$17.13

12

GROMMET, ANODE

67F-11328-01-00

$3.50

13

ANODE COVER ASSY

69J-11301-11-00

$17.37

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

16

PAN, OIL

6B6-1310A-01-00

Unavailable

17

GASKET

6B6-13557-01-00

$38.49

18

BOLT, WITH WASHER(61B)

97513-06520-00

Unavailable

19

PIN, DOWEL

93603-14M15-00

$3.86

20

PIPE, DELIVERY 1

60E-13161-00-00

$24.98

21

O-RING(26H)

93210-06667-00

Unavailable

22

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

23

PIN, DOWEL

99530-08012-00

$4.89

24

. O-RING

93210-08001-00

$1.51

25

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

Unavailable

26

BOLT, UNION

90401-20007-00

$13.86

27

MOUNT RUBBER

67X-44517-10-00

$101.50

28

STOPPER LWR MOUNT RUBBER

60E-44574-00-94

$48.47

29

STOPPER, UPPER MOUNT

6B6-44532-00-94

$110.59

30

BOLT, WITH WASHER

90119-08858-00

$2.30

31

BOLT, WITH WASHER

90119-08829-00

$3.88

32

WASHER, PLATE

90201-099U3-00

$2.16

33

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

33

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

33

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

33

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

33

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

34

BOLT

90101-06917-00

Unavailable
