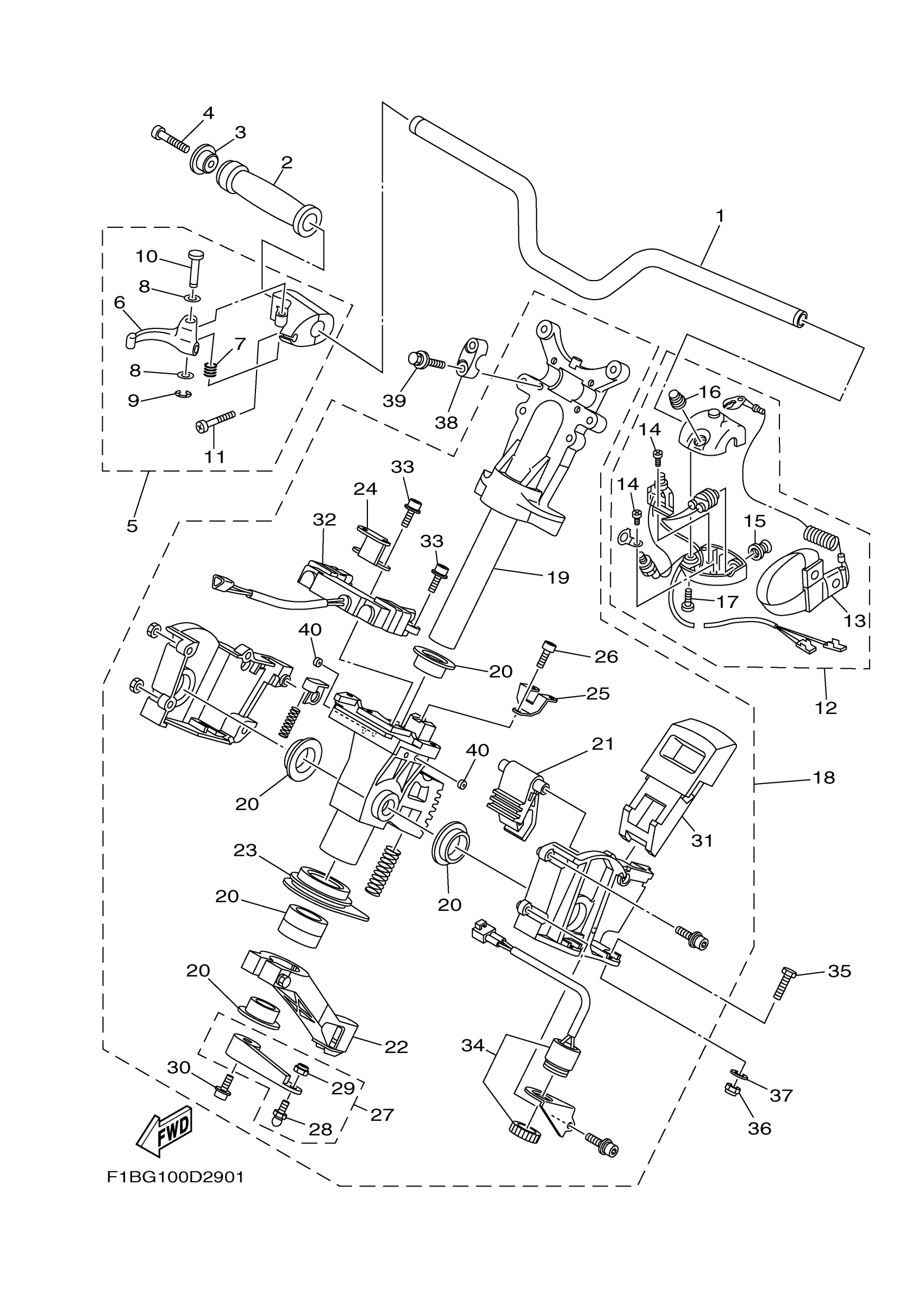

Yamaha FX1100BE (FX Cruiser High Output 50TH Anniversary Edition) F1X7 2006 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F1S-61552-00-00

$168.17

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

F1S-U155F-00-00

$63.18

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

12

SWITCH BOX ASSY

F1S-68310-01-00

$234.83

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

18

STEERING MASTER ASSY

F1S-61400-19-00

$1,457.56

19

. SHAFT ASSY

F1S-67410-10-00

$366.65

20

. TUBE & BUSHING SET

F1S-6773D-00-00

Unavailable

21

. LOCK 1

F1S-61782-00-00

$56.05

22

. CABLE STOPPER ASSY

F1S-6146A-00-00

$130.29

23

. SEAL, RUBBER

F1S-6143C-00-00

$34.49

24

. STAY 1

F1S-65938-00-00

$19.68

25

. STAY 2

F1S-65939-00-00

$16.99

26

SCREW

F1B-613C1-10-00

Unavailable

27

. ARM ASSY

F1S-6153R-00-00

$56.99

28

STUD, JOINT BALL

EU0-61461-02-00

$14.38

29

NUT, SELF-LOCKING

95720-06300-00

$1.82

30

. BOLT

F1S-61355-00-00

$10.99

31

LEVER ASSY

F1B-6151M-03-00

$39.38

32

. SENSOR ASSY

F1B-68303-10-00

Unavailable

33

. BOLT

F1S-61355-00-00

$10.99

34

BUZZER

F1S-68341-00-00

$113.62

35

BOLT (62K)

97095-08035-00

Unavailable

36

NUT, NYLON (6J8)

95780-08300-00

$10.55

37

WASHER, PLATE

90201-099U3-00

$2.16

38

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

39

BOLT, WITH WASHER

90119-089U1-00

$3.23

40

. PLUG

F1W-6358B-00-00

$19.68
