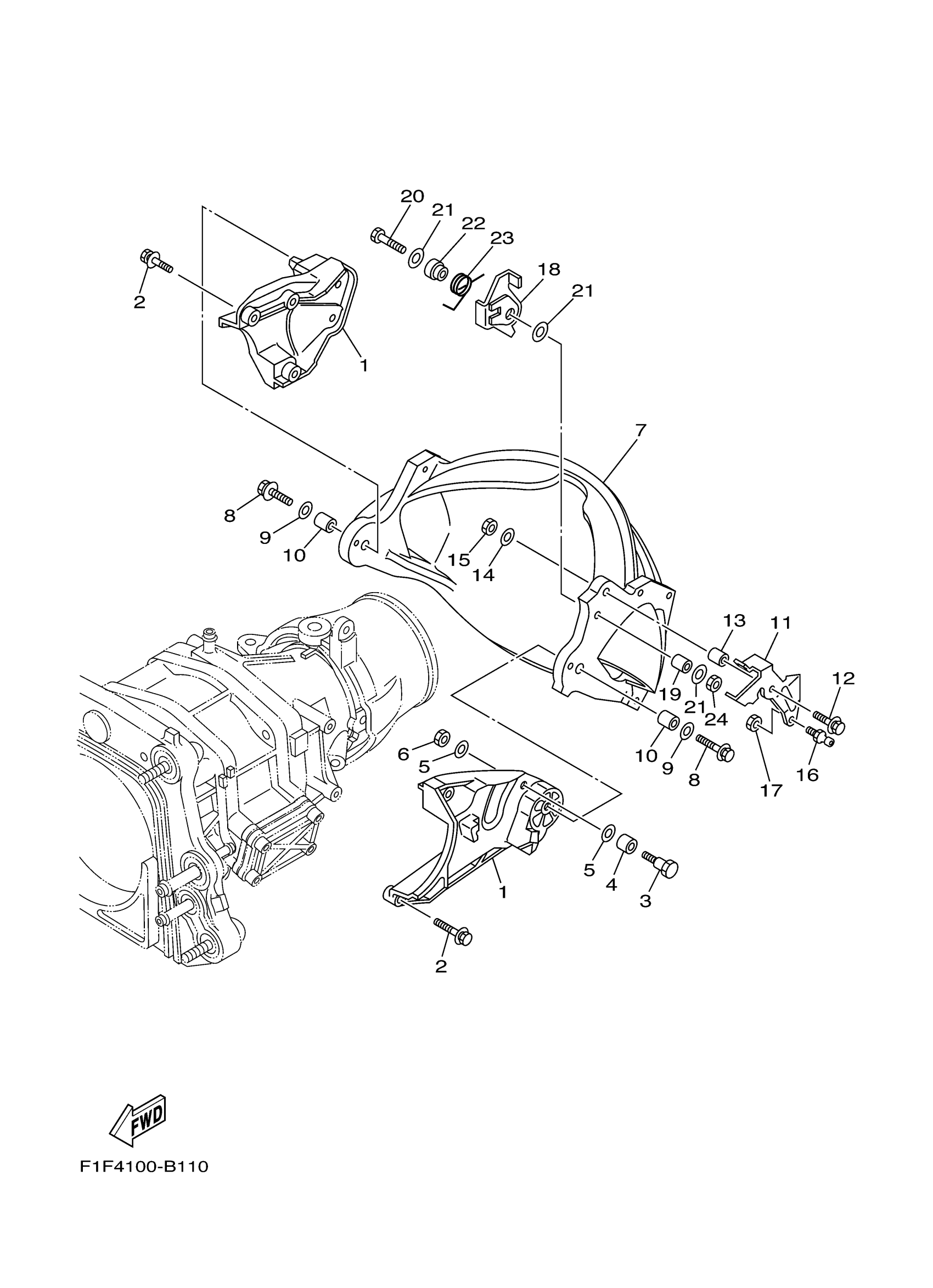

Yamaha FX1100BE (FX Cruiser High Output 50TH Anniversary Edition) F1X7 2006 JET UNIT 3 Diagram

#

Description
Price

1

BRACKET 1

66V-51341-00-94

$83.57

2

BOLT, WITH WASHER

90119-06892-00

$4.01

3

BOLT

90109-08851-00

$4.24

4

COLLAR

90387-10M09-00

$14.06

5

WASHER

9299R-08600-00

$2.16

6

NUT

9538R-08600-00

$1.34

7

GATE, REVERSE

66V-51314-01-00

$291.03

8

BOLT, WITH WASHER

90119-08841-00

$1.07

9

WASHER, FENDER MOLD

90201-088T2-00

$1.15

10

COLLAR

90387-08M30-00

$7.59

11

LEVER, SHIFT ROD

66V-44121-00-00

Unavailable

12

BOLT,WITH WASHER

90119-06890-00

$1.15

13

COLLAR

90387-06M74-00

Unavailable

14

WASHER, PLATE

90201-068T1-00

$1.87

15

NUT

9538R-06600-00

$0.79

16

STUD, JOINT BALL

66V-U146E-00-00

$10.07

17

NUT

9538R-06600-00

$0.79

18

LEVER, SHIFT ROD

66V-44125-00-00

$40.28

19

COLLAR

90387-06M74-00

Unavailable

20

BOLT

90101-06833-00

$2.46

21

WASHER, PLATE

90201-068T1-00

$1.87

22

COLLAR

90387-06M84-00

Unavailable

23

SPRING, TORSION

90508-14M43-00

$1.79

24

NUT

9538R-06600-00

$0.79
