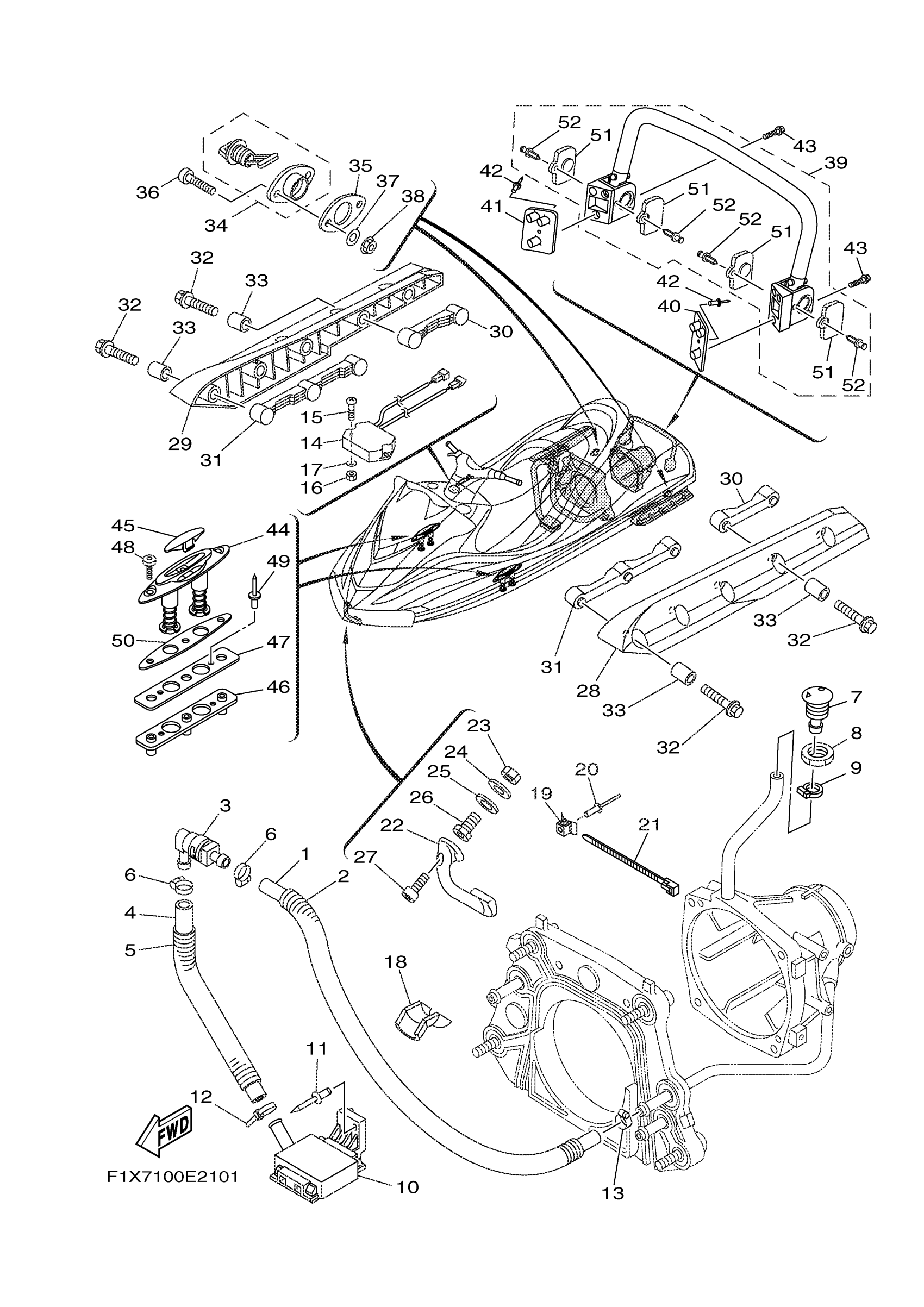

Yamaha FX1100BE (FX Cruiser High Output 50TH Anniversary Edition) F1X7 2006 HULL DECK Diagram

#

Description

Price

1

HOSE (L860)

90445-20804-00

Unavailable

2

HOSE

90446-27M73-00

$21.99

3

JOINT, HOSE

68N-5112T-00-00

Unavailable

4

HOSE (L500)

90445-20800-00

Unavailable

5

HOSE(63M)

90446-27M55-00

$16.99

6

BAND, HOSE 18

90601-118UF-00

Unavailable

7

SPOUT

FN8-6269B-00-00

Unavailable

8

NUT

EU0-61652-00-00

Unavailable

9

BAND, HOSE 18

90601-118UF-00

Unavailable

10

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

11

RIVET, BLIND

90267-489U8-00

Unavailable

12

BAND

90601-200U1-00

Unavailable

13

CLIP

90467-200A0-00

Unavailable

14

SENSOR, COMPASS

F1X-U8K22-01-00

Unavailable

15

SCREW, PAN HEAD

9788R-05025-00

Unavailable

16

NUT, FLANGE

9572R-05300-00

Unavailable

17

WASHER

9299R-05200-00

Unavailable

18

TRIM, 1

F1S-U828H-01-00

Unavailable

19

CLAMP COMP (EU0)

90600-91736-00

Unavailable

20

RIVET, BLIND

90267-48802-00

Unavailable

21

CLAMP

90464-32801-00

Unavailable

22

BOW EYE 1

F1K-61624-00-00

Unavailable

23

NUT.HEX.(COARS)

99780-12600-00

Unavailable

24

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

25

WASHER

F0X-61637-00-00

Unavailable

26

NUT

F0X-61652-01-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

28

STABILIZER LH

F1S-U883N-01-00

Unavailable

29

STABILIZER RH

F1S-U883P-01-00

Unavailable

30

BRACKET,STABILIZER

F1F-U883T-02-00

Unavailable

31

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

32

BOLT,WASHER BASED

90105-088F9-00

Unavailable

33

SPACER

F1K-U8169-00-00

Unavailable

34

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

35

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

36

SCREW, PAN HEAD

9788R-05025-00

Unavailable

37

WASHER

9299R-05200-00

Unavailable

38

NUT, FLANGE

9572R-05300-00

Unavailable

39

LADDER, STEP ASSY

F1X-U278A-00-00

Unavailable

40

BRACKET, LADDER LH

F1X-U278F-01-00

Unavailable

41

BRACKET, LADDER RH

F1X-U278G-01-00

Unavailable

42

RIVET, BLIND

90267-489U8-00

Unavailable

43

BOLT

90111-08803-00

Unavailable

44

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

45

COVER

F1X-U826D-01-00

Unavailable

46

BRACKET

F1X-U826C-10-00

Unavailable

47

PACKING

F1X-U2157-00-00

Unavailable

48

BOLT

F1W-U2624-00-00

Unavailable

49

RIVET, BLIND

90267-489U6-00

Unavailable

50

PACKING

F4G-U2284-10-00

Unavailable

51

. INNER, COVER SIDE 1

F2C-U377H-00-00

Unavailable

52

. PIN

F2C-U1314-00-00

Unavailable
