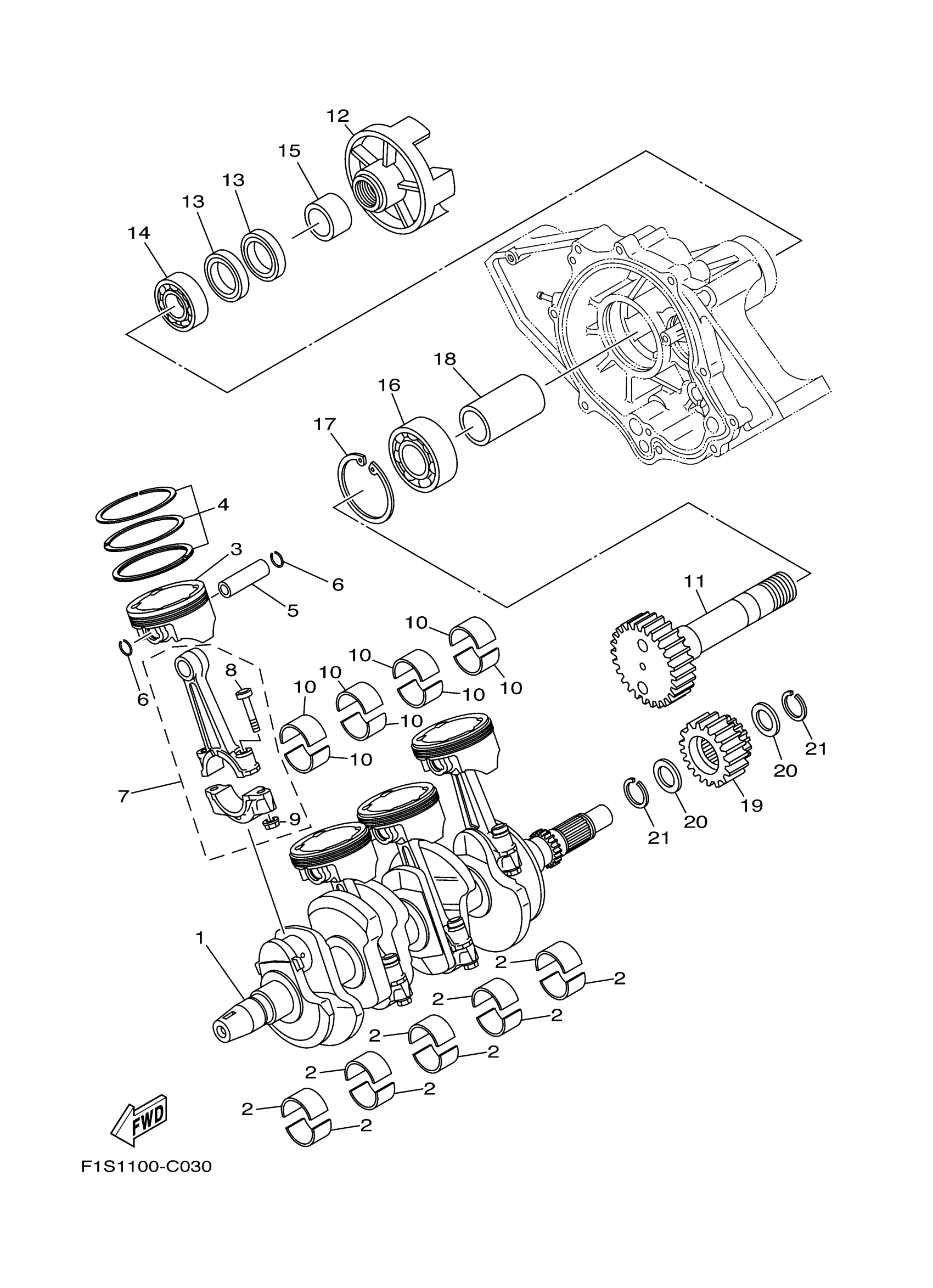

Yamaha FX1100BE (FX Cruiser High Output 50TH Anniversary Edition) F1X7 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

60E-11411-11-00

$1,529.87

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-00-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-10-00

$14.05

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-20-00

$18.49

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-30-00

$14.05

2

PLANE BEARING, CRANKSHAFT 1

60E-11416-40-00

$16.50

3

PISTON (STD)

6B6-11631-00-B0

$66.87

4

PISTON RING SET

6B6-11603-01-00

Unavailable

5

PIN, PISTON

4XV-11633-00-00

$24.31

6

CLIP (1J7)

90468-12069-00

$6.22

7

CONNECTING ROD ASSY

5PW-11650-00-00

Unavailable

8

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.09

9

NUT (11H)

90179-08327-00

$6.52

10

PLANE BEARING, CONNECTING ROD

60E-11656-00-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

60E-11656-10-00

$12.15

10

PLANE BEARING, CONNECTING ROD

60E-11656-20-00

$12.15

10

PLANE BEARING, CONNECTING ROD

60E-11656-30-00

$12.15

11

SHAFT, TRANSFER

6B6-17572-00-00

$314.91

12

FLANGE, COUPLING

66E-45813-10-94

$101.95

13

OIL SEAL

93101-35004-00

$25.36

14

BEARING(55X)

93306-07801-00

Unavailable

15

COLLAR

6B6-11478-00-00

$61.18

16

BRG. R-B 6306 72MM 352.5GK

93306-30610-00

Unavailable

17

CIRCLIP (70R)

93420-72065-00

$6.83

18

COLLAR, GEAR

6B6-17585-00-00

$46.25

19

GEAR, TRANSFER DRIVE

6B6-17586-00-00

$202.97

20

WASHER

90209-25008-00

$4.55

21

CIRCLIP (2H7)

93440-28062-00

Unavailable
