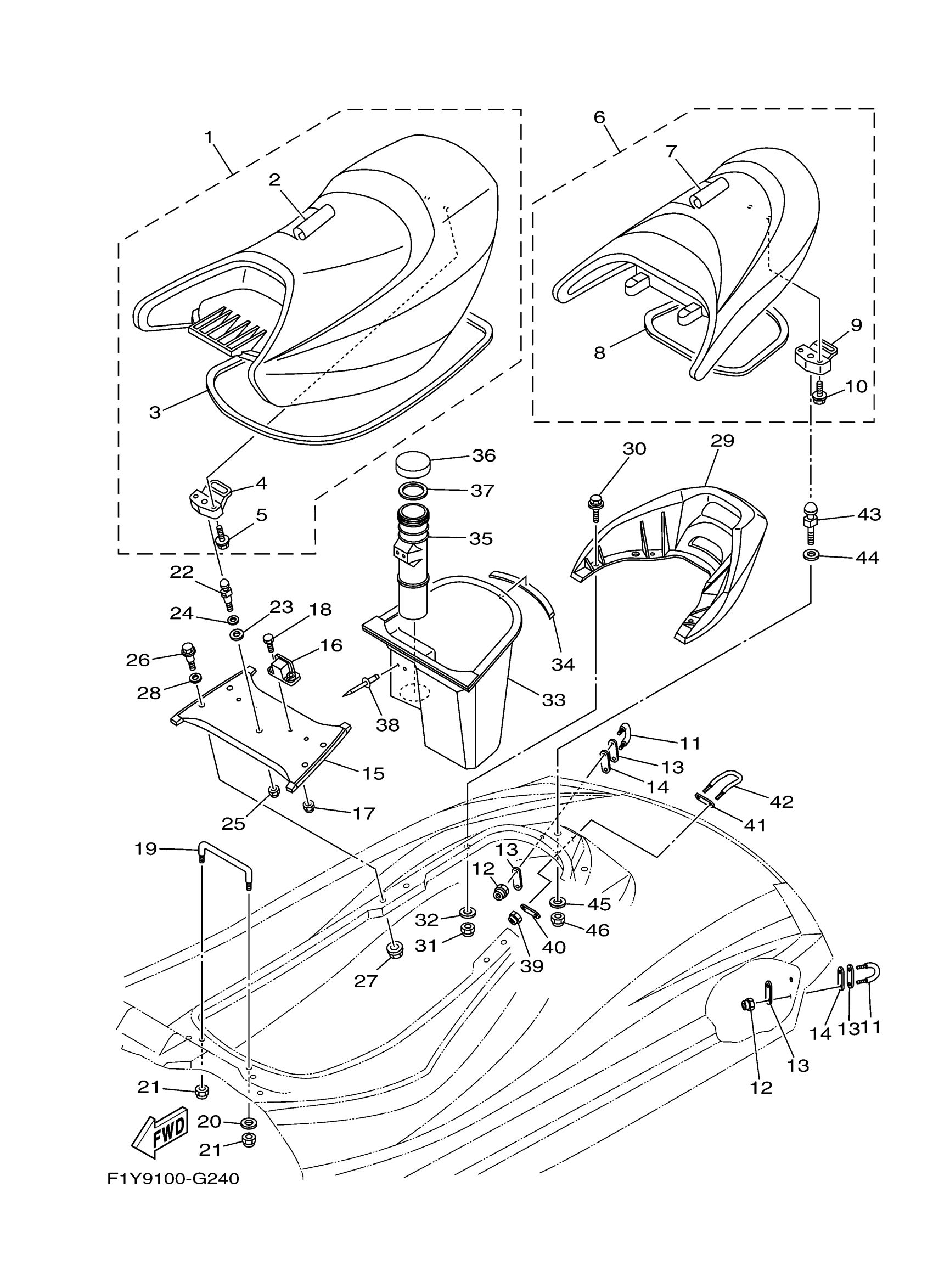

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F1S-U371A-51-00

Unavailable

2

. COVER, SEAT 1

F1S-U371B-50-00

Unavailable

3

. PACKING

F1B-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSY

F1S-U372A-11-00

Unavailable

7

. COVER, SEAT

F1S-U372B-10-00

Unavailable

8

. PACKING 5

F1B-U266D-00-00

Unavailable

9

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

10

BOLT, WITH WASHER

90119-06808-00

Unavailable

11

STERN EYE (BLACK)

F1K-61628-00-00

Unavailable

12

NUT, NYLON (6J8)

95780-08300-00

Unavailable

13

PLATE A

GP7-U4953-10-00

Unavailable

14

PACKING

F1B-U1653-03-00

$4.99

15

BEAM, DECK 1

F1B-U8952-01-00

Unavailable

16

STAY,SEAT 2

GU2-6378D-02-00

Unavailable

17

NUT, NYLON

9572R-06300-00

Unavailable

18

BOLT

90101-069U0-00

Unavailable

19

STAY, SEAT 1

F0X-6378C-00-00

Unavailable

20

WASHER, PLATE

90201-099U3-00

Unavailable

21

NUT, NYLON (6J8)

95780-08300-00

Unavailable

22

PIN

F1B-U3774-00-00

Unavailable

23

PACKING 1

F0X-6375E-00-00

Unavailable

24

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

25

NUT, NYLON

9572R-10300-00

Unavailable

26

BOLT

F1B-U2624-00-00

Unavailable

27

NUT, SELF-LOCKING

90185-08011-00

Unavailable

28

WASHER

9299R-10200-00

Unavailable

29

GRIP, HAND (YAMAHA BLACK)

F1S-U271B-01-00

Unavailable

30

BOLT, WITH WASHER

90119-08907-00

Unavailable

31

NUT, NYLON (6J8)

95780-08300-00

Unavailable

32

WASHER

9299R-08200-00

Unavailable

33

LOCKER, UNDER 2

F1B-U4742-01-00

Unavailable

34

.. PACKING,6

F0X-U266E-01-00

Unavailable

35

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

36

. CAP, CASE

EW2-U5912-01-00

Unavailable

37

PACKING, CASE

EW2-U5913-01-00

Unavailable

38

RIVET, 1

F3J-U516R-00-00

Unavailable

39

NUT, NYLON (6J8)

95780-08300-00

Unavailable

40

PLATE A

GP7-U4953-10-00

Unavailable

41

PLATE A

GP7-U4953-10-00

Unavailable

42

SKI TOWS

F1B-U1629-00-00

Unavailable

43

PIN

GH1-U3774-00-00

Unavailable

44

WASHER, PLATE

90201-109U6-00

Unavailable

45

WASHER

9299R-10200-00

Unavailable

46

NUT, NYLON

9572R-10300-00

Unavailable
