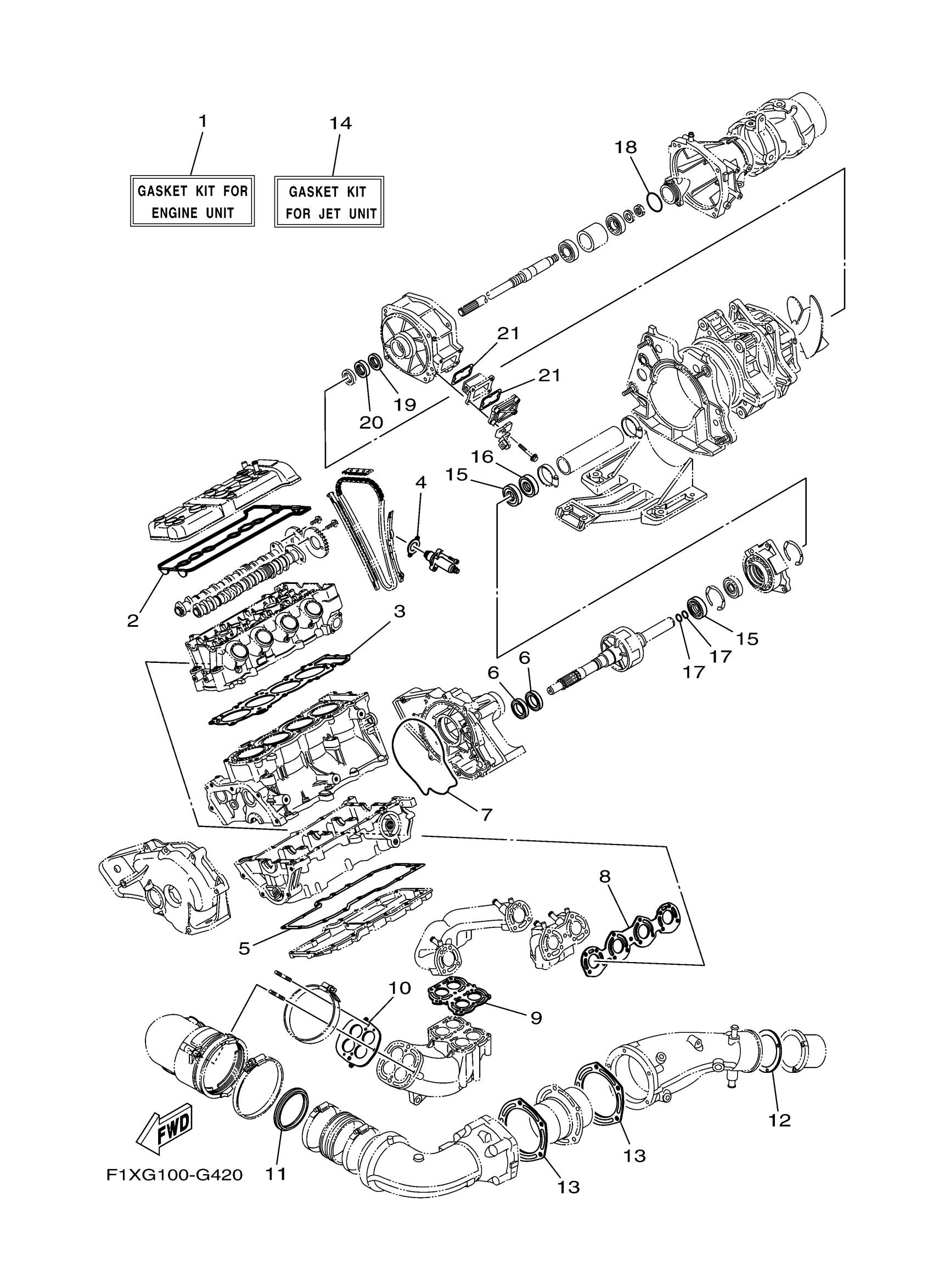

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 REPAIR KIT 2 CA NY Diagram

GASKET KIT FOR ENGINE UNIT

6AA-W0001-00-00

Unavailable

GASKET, HEAD COVER 1

60E-11193-01-00

$53.70

. GASKET, CYLINDER HEAD 1

6B6-11181-00-00

$81.61

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

GASKET

6B6-13557-01-00

$38.49

OIL SEAL

93101-35004-00

$25.49

GASKET

6B6-13475-01-00

$25.27

GASKET, EXHAUST PIPE

60E-14613-01-00

$56.87

GASKET, MUFFLER DAMPER 1

60E-14739-02-00

$56.87

GASKET, MUFFLER DAMPER 2

60E-14749-02-00

$56.05

. SEAL, EXHAUST

60E-14642-00-00

$40.22

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

. GASKET, EXHAUST OUTER COVER

6AA-41124-00-00

$33.99

GASKET KIT FOR JET UNIT

60E-W0001-21-00

Unavailable

OIL SEAL(62T)

93101-25M55-00

$24.36

. OIL SEAL

93102-25009-00

$29.63

O-RING

93210-19001-00

$3.49

. O-RING

93210-464A3-00

$2.95

OIL SEAL

93101-28002-00

$13.40

OIL SEAL

93101-28M66-00

Unavailable

. O-RING

66V-42414-00-00

$5.18
