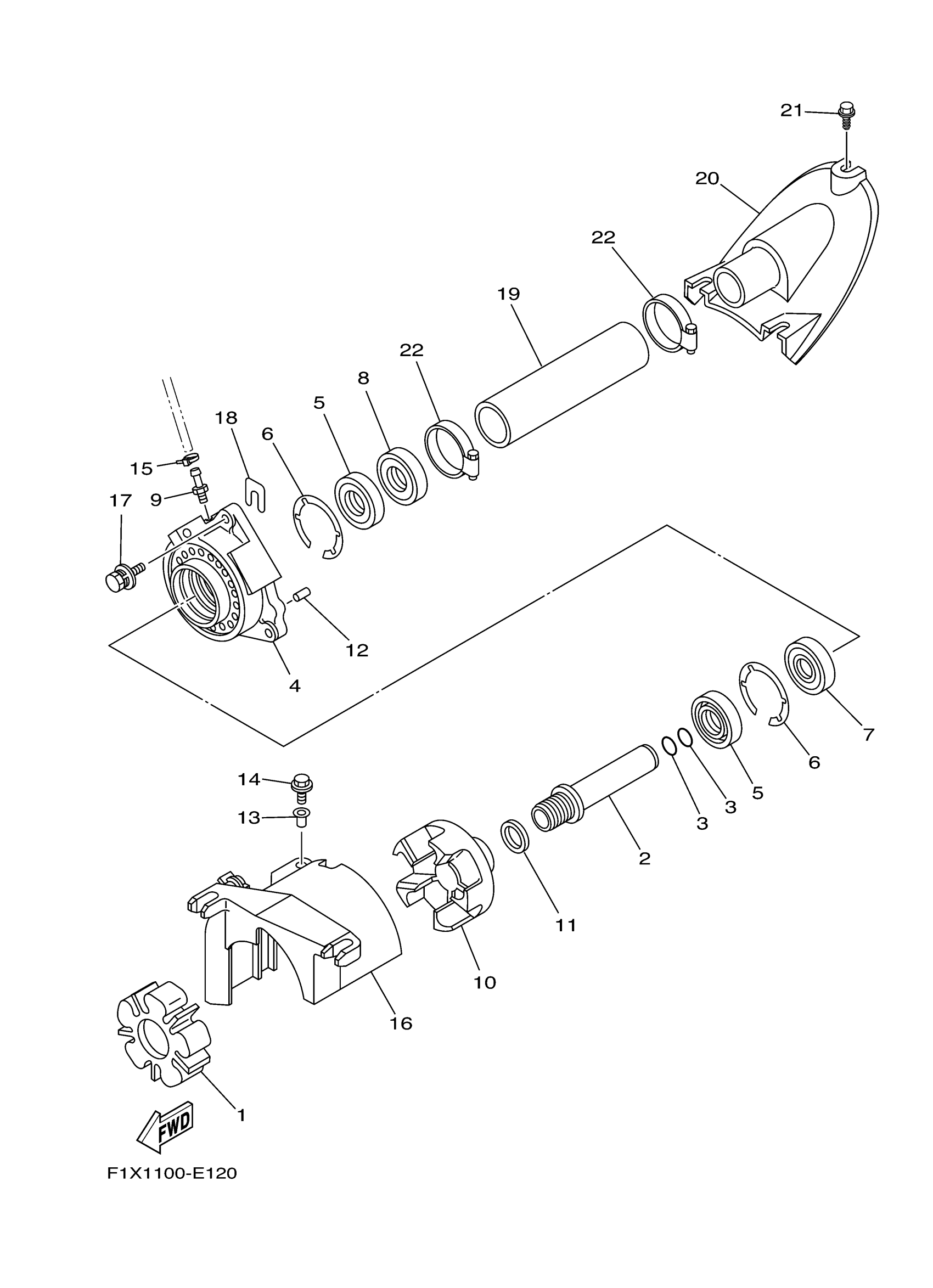

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6D3-4581J-01-00

Unavailable

2

SHAFT, COUPLER

60E-R1323-01-00

Unavailable

3

O-RING

93210-19001-00

$3.49

4

HOUSING, BEARING

61X-G5332-00-00

$134.54

5

OIL SEAL(62T)

93101-25M55-00

$24.36

6

CIRCLIP

93430-47M04-00

$5.18

7

BEARING(62G)

93306-205U6-00

$55.29

8

. OIL SEAL

93102-25009-00

$29.63

9

NIPPLE, HOSE

61L-45378-00-00

$11.35

10

FLANGE, COUPLING

66E-45813-10-94

$107.56

11

WASHER, PLATE

90201-27008-00

Unavailable

12

PIN, DOWEL (614)

93606-12019-00

$3.05

13

COLLAR

90387-06M60-00

$6.37

14

BOLT, WITH WASHER

90119-06892-00

$3.79

15

CLAMP

90465-10098-00

$1.68

16

COVER

60E-R1381-01-00

$84.83

17

BOLT, WITH WASHER

90119-08907-00

$5.45

18

SHIM (0.5)

GD0-U7249-00-05

$1.94

19

PIPE, 1

F1W-U883B-00-00

Unavailable

20

JOINT, PIPE

F1W-U883E-00-00

$13.63

21

SCREW

90149-069UA-00

Unavailable

22

BAND, HOSE 52

90601-152U3-00

$5.67
