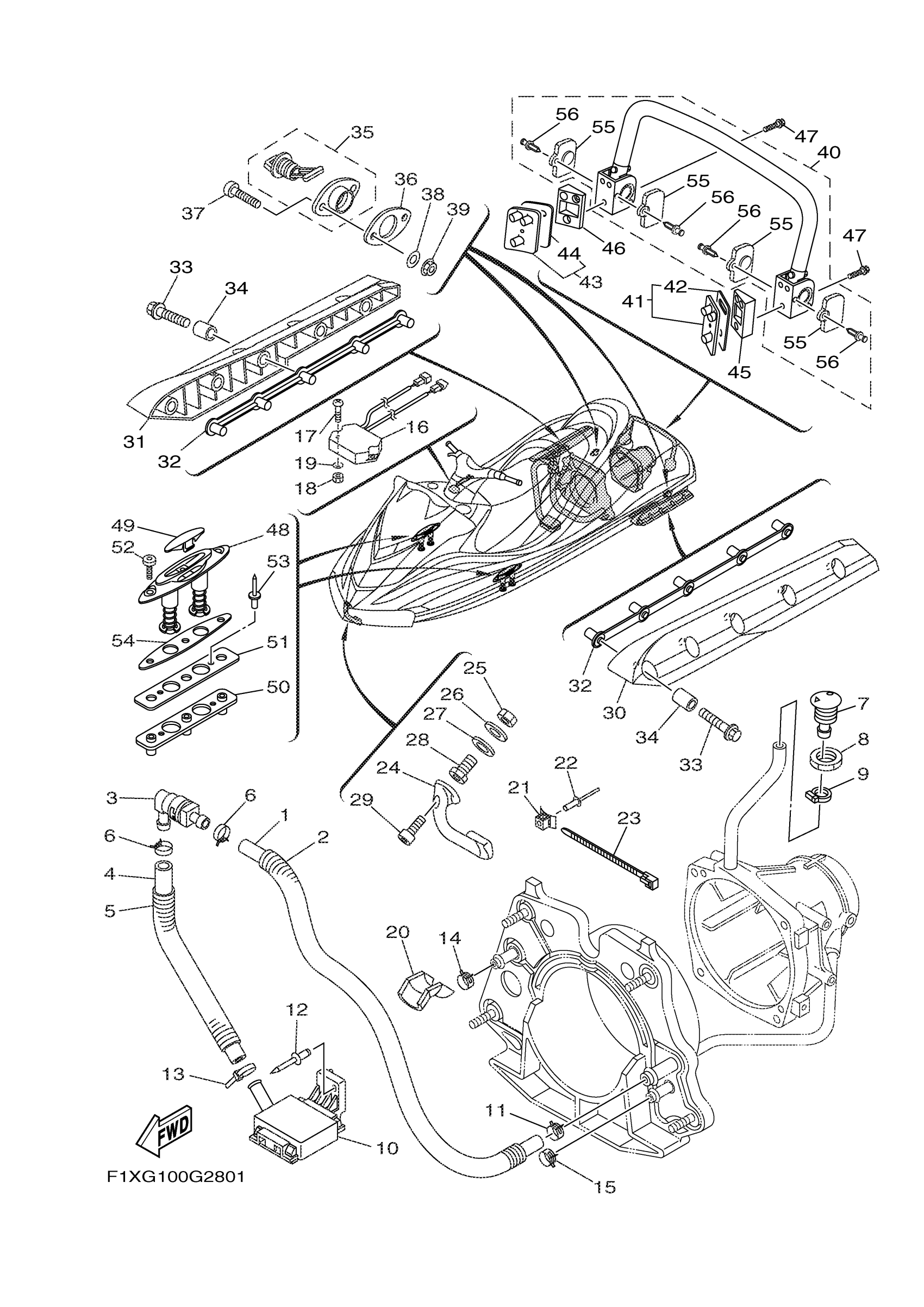

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 HULL DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.67

2

HOSE

90446-27M73-00

$18.55

3

JOINT, HOSE

68N-5112T-00-00

$47.39

4

HOSE (L500)

90445-20800-00

$12.67

5

HOSE(63M)

90446-27M55-00

$14.15

6

CLIP

90467-18804-00

$2.87

7

SPOUT

FN8-6269B-00-00

$17.09

8

NUT

EU0-61652-00-00

$11.77

9

BAND, HOSE 18

90601-118UF-00

$2.22

10

STRAINER, BILGE

F1B-U761D-02-00

$5.35

11

CLIP

90467-21800-00

$3.02

12

RIVET, BLIND

90267-489U8-00

$1.37

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-21800-00

$3.02

15

CLIP

90467-200A0-00

$7.59

16

SENSOR, COMPASS

F1X-U8K22-01-00

$522.37

17

SCREW, PAN HEAD

9788R-05025-00

$2.66

18

NUT, FLANGE

9572R-05300-00

$1.51

19

WASHER

9299R-05200-00

$4.60

20

TRIM, 1

F1S-U828H-01-00

$6.42

21

CLAMP COMP (EU0)

90600-91736-00

Unavailable

22

RIVET, BLIND

90267-48802-00

$1.98

23

CLAMP

90464-32801-00

$1.29

24

BOW EYE 1

F1K-61624-00-00

$43.69

25

NUT.HEX.(COARS)

99780-12600-00

$2.80

26

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

27

WASHER

F0X-61637-00-00

$1.24

28

NUT

F0X-61652-01-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.02

30

STABILIZER LH

F1S-U883N-01-00

$32.82

31

STABILIZER RH

F1S-U883P-01-00

$32.82

32

BRACKET,STABILIZER

F1X-U883T-02-00

$43.27

33

BOLT,WASHER BASED

90105-088F9-00

$2.91

34

SPACER

F1K-U8169-00-00

Unavailable

35

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.91

36

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

37

SCREW, PAN HEAD

9788R-05025-00

$2.66

38

WASHER

9299R-05200-00

$4.60

39

NUT, FLANGE

9572R-05300-00

$1.51

40

LADDER, STEP ASSY

F1X-U278A-10-00

Unavailable

41

BRACKET, LADDER LH

F1X-U278F-01-00

$31.33

42

. PACKING, BRACKET 1

F1X-U278H-10-00

Unavailable

43

BRACKET, LADDER RH

F1X-U278G-01-00

$31.33

44

. PACKING, BRACKET 1

F1X-U278H-10-00

Unavailable

45

BRACKET 1

F1X-U278K-00-00

Unavailable

46

BRACKET 2

F1X-U278L-00-00

Unavailable

47

BOLT, WITH WASHER

90119-08844-00

$1.37

48

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

49

COVER

F1X-U826D-01-00

$2.00

50

BRACKET

F1X-U826C-10-00

$12.20

51

PACKING

F1X-U2157-00-00

$1.72

52

BOLT

F1W-U2624-00-00

$2.44

53

RIVET, BLIND

90267-489U6-00

Unavailable

54

PACKING

F4G-U2284-10-00

$3.02

55

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.43

56

. PIN

F2C-U1314-00-00

$2.58
