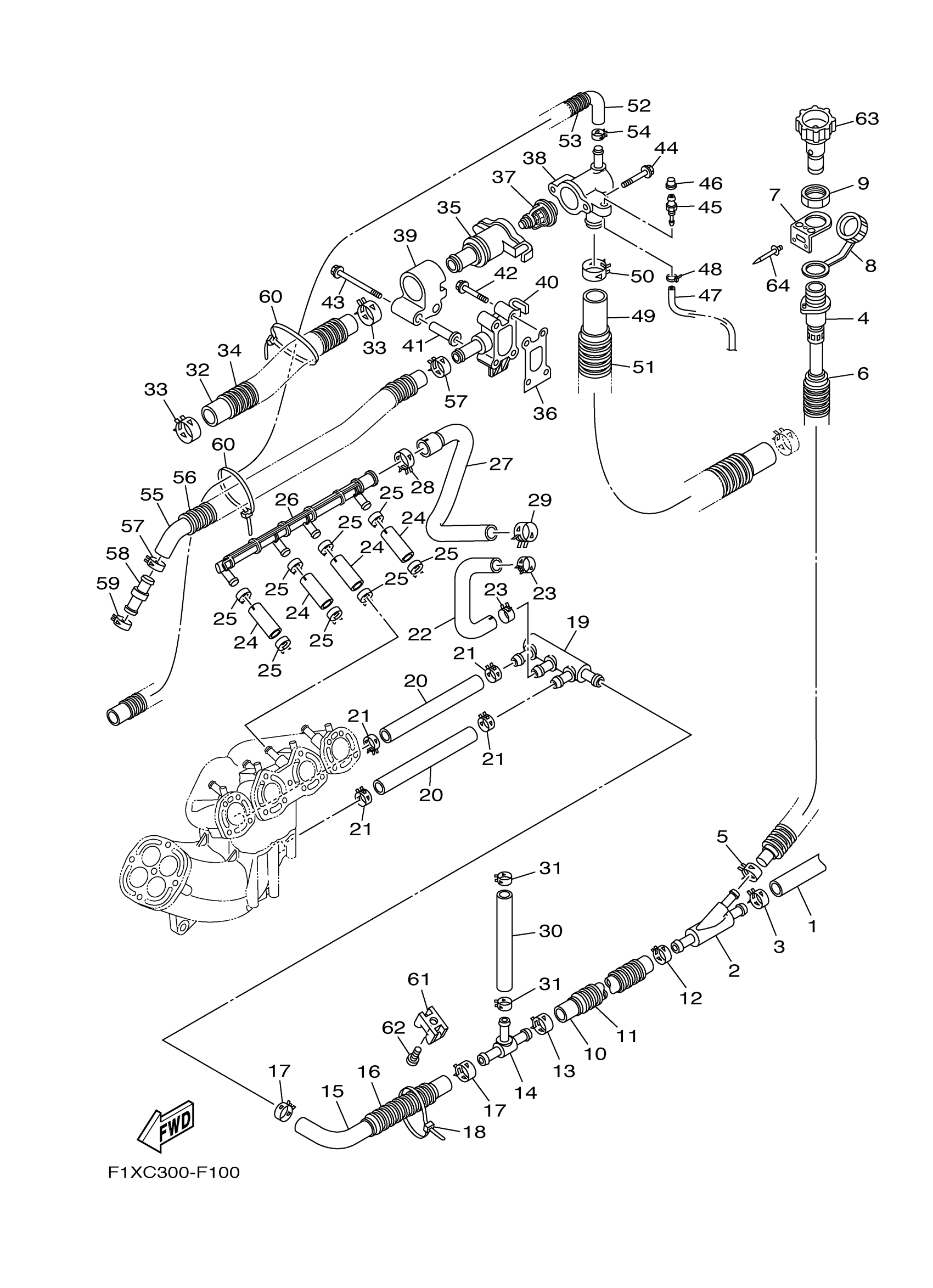

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 EXHAUST 4 CA NY Diagram

#

Description
Price

1

HOSE 1

60E-E243A-00-00

Unavailable

2

JOINT, HOSE 1

60E-12581-00-00

$15.49

3

CLIP

90467-200A0-00

$7.40

4

JOINT ASSY

60E-12580-00-00

Unavailable

5

CLIP

90467-150A0-00

$3.33

6

HOSE

90446-24M83-00

Unavailable

7

STAY

60E-12443-00-00

$2.95

8

CAP,1

682-84385-01-00

$9.08

9

NUT

EU0-61652-00-00

$11.48

10

HOSE (L370)

90445-21804-00

Unavailable

11

HOSE, WITH SPRING (L300)

90447-22003-00

$4.55

12

CLIP

90467-200A0-00

$7.40

13

CLIP

90467-200A0-00

$7.40

14

JOINT, HOSE 3

60E-12584-00-00

$6.36

15

HOSE 2

60E-1243E-00-00

$72.71

16

HOSE, WITH SPRING (L100)

90447-22001-00

$6.21

17

CLIP

90467-200A0-00

$7.40

18

BAND, SWITCH CORD

437-83936-11-00

Unavailable

19

JOINT, HOSE 2

60E-12582-00-00

Unavailable

20

HOSE (L150)

90445-18003-00

$10.99

21

CLIP

90467-160A0-00

$2.95

22

HOSE,3

6B6-1243F-00-00

$41.99

23

CLIP

90467-160A0-00

$2.95

24

HOSE 1

6B6-12576-10-00

$2.19

25

CLIP

90467-170A0-00

$2.80

26

JOINT 1

60E-12469-00-00

$20.37

27

HOSE 2

6B6-12577-00-00

$127.26

28

CLIP

90467-240A1-00

$2.95

29

CLIP

90467-210A0-00

$5.45

30

HOSE (L150)

90445-18003-00

$10.99

31

CLIP

90467-160A0-00

$2.95

32

HOSE (L205)

90445-26002-00

$80.29

33

CLIP

90467-240A0-00

$6.82

34

HOSE (L100)

90447-28005-00

$3.64

35

HOUSING, THERMOSTAT

60E-12417-10-94

$99.98

36

GASKET

60E-12435-00-00

$3.64

37

THERMOSTAT

60E-12411-01-00

$116.65

38

COVER, THERMOSTAT

60E-12413-10-94

$113.62

39

JOINT

6B6-12499-00-00

$13.99

40

JOINT

6D3-12446-00-00

$39.38

41

COLLAR

90387-06083-00

$11.35

42

BOLT, FLANGE

90105-06035-00

$2.27

43

BOLT, FLANGE

90105-06054-00

$2.27

44

BOLT, FLANGE

90105-06035-00

$2.27

45

NIPPLE, GREASE

61L-5169A-00-00

$7.40

46

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

47

HOSE, DELIVERY

6AP-5110K-00-00

Unavailable

48

CLAMP

90465-10098-00

$1.68

49

HOSE (L900)

90445-25003-00

Unavailable

50

CLIP

90467-240A0-00

$6.82

51

TUBE (L800)

90447-28002-00

Unavailable

52

HOSE 8

6P6-12552-00-00

Unavailable

53

TUBE (L1150)

90447-22002-00

$22.71

54

CLIP

90467-120A0-00

$4.55

55

HOSE (L530)

90445-21004-00

$25.49

56

HOSE(63M)

90446-27M55-00

Unavailable

57

CLIP

90467-200A0-00

$7.40

58

CONNECTION

60E-51142-00-00

$3.18

59

CLIP

90467-200A0-00

$7.40

60

CLAMP

90465-14M66-00

Unavailable

61

BRACKET 1

60E-1244E-00-00

$7.27

62

SCREW, WITH WASHER(6L2)

97985-05210-00

Unavailable

63

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

64

RIVET (EU0)

90267-48938-00

$5.00
