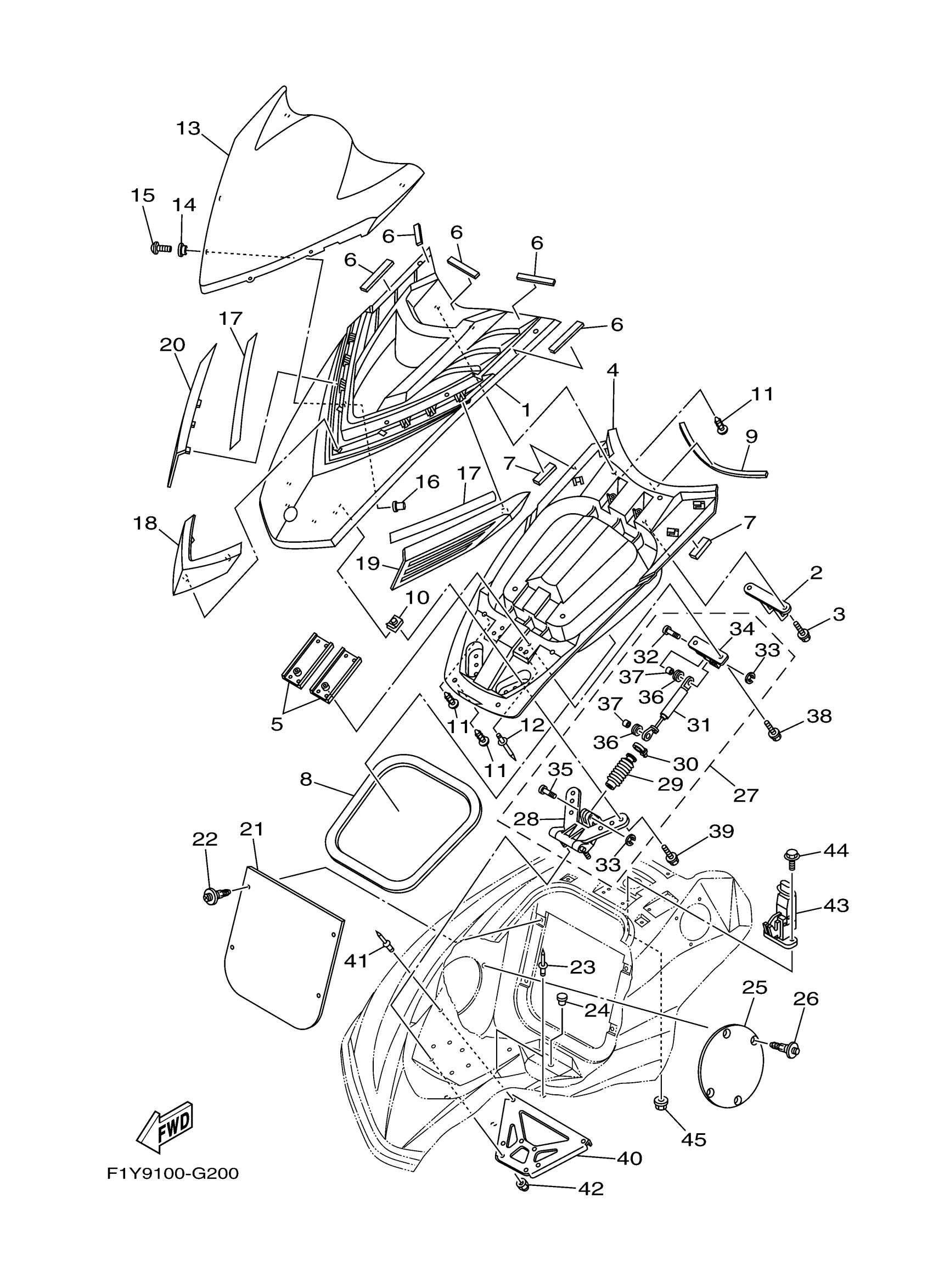

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (LIGHT GRAY METALLIC P)

F1X-U517B-10-P0

Unavailable

2

HOOK, LID LOCK

F0X-6517F-01-00

$47.99

3

BOLT, WITH WASHER

90119-06830-00

Unavailable

4

VENTILATOR COVER COMP, 2

F1X-U2103-01-00

Unavailable

5

PLATE, HATCH

F1B-65148-00-00

$15.89

6

DAMPER 2

F0X-U515E-02-00

$0.98

7

PACKING 3

F1X-U266B-00-00

Unavailable

8

PACKING 1

F1B-U2663-00-00

Unavailable

9

PACKING 3

F1B-U266B-00-00

Unavailable

10

NUT, SPRING(GJ3)

90183-06902-00

$8.53

11

SCREW(GH1)

90149-05903-00

$2.31

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

VISOR

F1X-U515N-01-00

Unavailable

14

BUSH, SOLID (16G)

90381-05041-00

$6.46

15

BOLT, HEXAGON SOCKET BUTTON

90111-05017-00

$2.56

16

NUT

90179-05800-00

Unavailable

17

TAPE, FITTING

F1X-U3635-10-00

Unavailable

18

ORNAMENT, CENTER

F1X-U517V-00-00

$153.02

19

ORNAMENT, LH

F1X-U517W-01-00

Unavailable

20

ORNAMENT, RH

F1X-U517X-01-00

Unavailable

21

PLATE, LOCKER BOW

F1S-U475F-00-00

Unavailable

22

RIVET

90269-08801-00

$0.83

23

RIVET, 1

F3J-U516R-00-00

$2.36

24

. PLUG, BLIND

90605-502U1-00

$2.16

25

COVER, INSPECTION 2

F1S-U7228-00-00

Unavailable

26

RIVET

90269-08801-00

$0.83

27

HINGE ASSY.

F1B-6515A-01-00

Unavailable

28

. HINGE, LID

F1B-6517D-00-00

$189.38

29

. COVER , SPRING

F1B-6518F-00-00

$23.47

30

. CLAMP

90464-44001-00

Unavailable

31

DAMPER 1

F1B-6515D-01-00

$175.74

32

. SHAFT B

F1B-6515J-00-00

Unavailable

33

CIRCLIP (701)

93430-06024-00

$3.52

34

. STAY, DAMPER

F1B-6514U-00-00

Unavailable

35

. SHAFT A

F1B-6515H-00-00

Unavailable

36

. GROMMET

90480-10006-00

Unavailable

37

. COLLAR

90387-07008-00

Unavailable

38

BOLT, WITH WASHER

90119-06830-00

Unavailable

39

BOLT, WITH WASHER

90119-06896-00

$5.03

40

PLATE, HINGE LID

F1B-6518E-00-00

$45.44

41

RIVET, BLIND

90267-48020-00

$7.27

42

NUT, NYLON

9572R-06300-00

$2.80

43

LOCK, LID

F1X-6517C-00-00

Unavailable

44

BOLT, WITH WASHER

90119-06837-00

$3.21

45

NUT, SELF-LOCKING

90185-06014-00

$5.91
