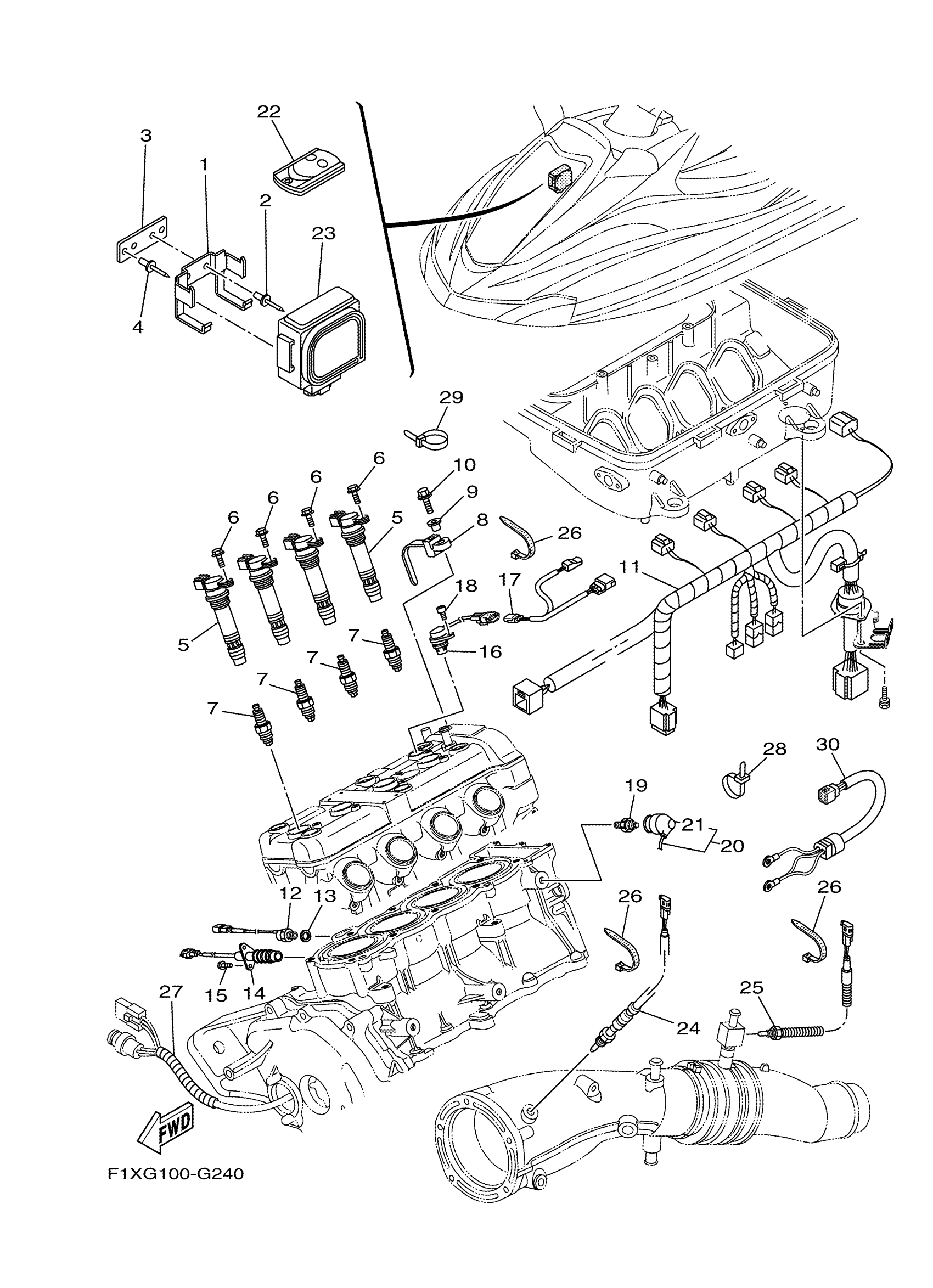

Yamaha FX1100ALG (WaveRunner FX Cruiser High Output CA) F1XJ 2008 ELECTRICAL 3 CA NY Diagram

#

Description
Price

1

BRACKET

F1W-U826C-00-00

$18.17

2

RIVET (EU0)

90267-48938-00

$5.00

3

PLATE

F1W-U8376-00-00

$2.80

4

RIVET (EU0)

90267-48938-00

$5.00

5

IGNITION COIL ASSY

6D3-82310-01-00

$207.56

6

BOLT, FLANGE

95814-06016-00

$1.82

7

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$7.28

8

CLAMP

90465-12M53-00

$5.00

9

COLLAR

90387-06M05-00

$6.45

10

BOLT, FLANGE

95814-06016-00

$1.82

11

WIRE HARNESS ASSY 2

60E-8259M-30-00

$360.59

12

THERMOSENSOR ASSY

60E-85790-02-00

Unavailable

13

WASHER, PLATE

92990-10600-00

$2.57

14

THERMO SWITCH ASSY

60E-82560-A1-00

$104.53

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

16

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

17

CONDENSER 1

60E-81325-10-00

$61.99

18

BOLT,SOCKET

91380-06016-00

Unavailable

19

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

20

LEAD WIRE ASSY

60E-81315-01-00

$41.99

21

CAP

60E-82532-01-00

Unavailable

22

TRANSMITTER COMP

6AA-86261-10-00

$256.05

23

RECIVER COMP

6AA-86265-10-00

Unavailable

24

SENSOR, EXT, TEMP.

6AA-85881-00-00

$315.14

25

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

26

CLAMP

90465-13M18-00

$1.71

27

HOSE, WITH SPRING

90447-19004-00

Unavailable

28

CLAMP (6E5)

90465-13M11-00

Unavailable

29

CLAMP (6E5)

90465-13M11-00

Unavailable

30

WIRE, LEAD

6AA-82531-00-00

$80.29
