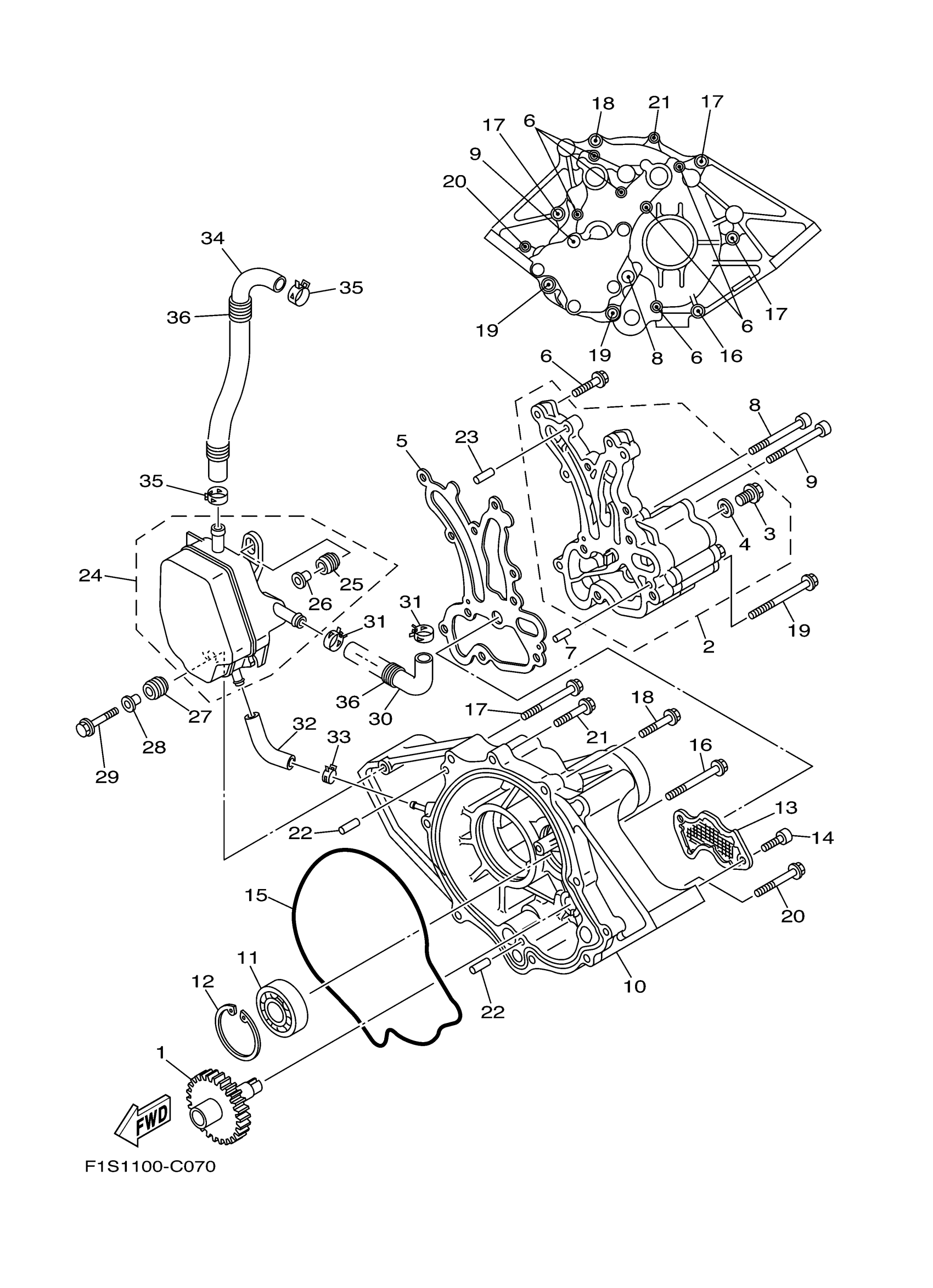

Yamaha FX1100AF (WaveRunner FX Cruiser HO) F1XA 2007 OIL PUMP Diagram

#

Description
Price

1

DRIVEN GEAR ASSY

6B6-13360-00-00

$133.32

2

OIL PUMP ASSY

6B6-13300-01-00

$410.30

3

BOLT, FLANGE

95817-08012-00

$3.71

4

GASKET

90430-08119-00

Unavailable

5

GASKET

6B6-13563-01-00

$30.99

6

BOLT, WITH WASHER(61B)

97513-06525-00

$1.75

7

PIN, DOWEL

93603-12221-00

$0.91

8

BOLT, HEXAGON SOCKET HEAD

90110-08039-00

$5.45

9

BOLT, HEXAGON SOCKET HEAD

90110-08040-00

$7.27

10

COVER, PUMP GEAR WITH PIN

99999-03984-00

$484.83

11

BEARING

93306-30441-00

$57.39

12

CIRCLIP(26H)

99009-52500-00

$10.02

13

STRAINER, OIL

6B6-13411-00-00

$46.95

14

BOLT,SOCKET

91317-06016-00

$1.15

15

GASKET

6B6-13475-01-00

$25.27

16

BOLT, WITH WASHER

90119-08045-00

$4.09

17

BOLT, WITH WASHER

90119-08034-00

$3.33

18

BOLT, WITH WASHER

90119-08043-00

$4.55

19

BOLT, WITH WASHER

90119-08073-00

$5.00

20

BOLT, WITH WASHER

97513-06555-00

$2.80

21

BOLT, WITH WASHER (62X)

97513-06535-00

Unavailable

22

PIN, DOWEL

93608-16M16-00

$2.41

23

PIN, DOWEL

93606-25M00-00

$1.82

24

SEPERATOR, OIL

60E-11164-00-00

Unavailable

25

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

26

. COLLAR

90387-06119-00

$4.37

27

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

28

. COLLAR

90387-06119-00

$4.37

29

BOLT, WITH WASHER

90119-06294-00

Unavailable

30

PIPE, BREATHER 3

60E-11126-01-00

$22.71

31

CLIP

90467-170A0-00

$2.80

32

PIPE, BREATHER 4

6B6-11125-00-00

$7.27

33

CLIP

90467-110A1-00

$4.07

34

PIPE, BREATHER 1

60E-11166-01-00

$23.99

35

CLIP

90467-170A0-00

$2.80

36

TUBE (L260)

90447-19005-00

$3.64
