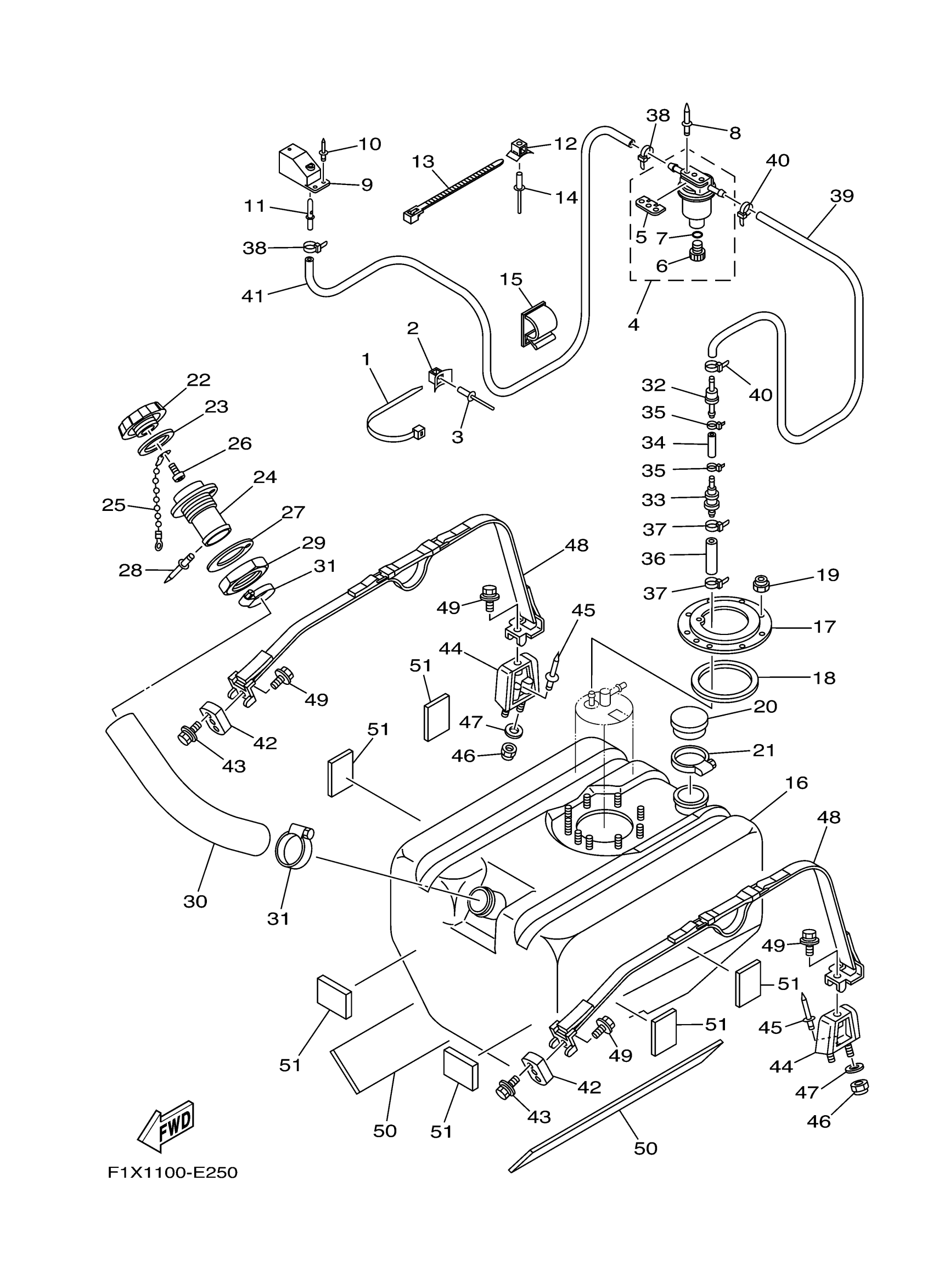

Yamaha FX1100AF (WaveRunner FX Cruiser HO) F1XA 2007 FUEL TANK Diagram

#

Description
Price

1

CLAMP

90464-99804-00

$4.17

2

CLAMP COMP (EU0)

90600-91736-00

$6.22

3

RIVET, BLIND

90267-48802-00

$1.98

4

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

5

. PLATE, FILTER

EW2-62142-00-00

$44.99

6

. PLUG, DRAIN

70R-24543-00-00

$9.08

7

. O-RING

70R-24489-00-00

$5.00

8

RIVET, BLIND

90267-489U2-00

$1.43

9

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

10

RIVET, BLIND

90267-489U6-00

$1.37

11

PIPE, VENTILATION

F1G-62149-00-00

$11.35

12

CLAMP COMP (EU0)

90600-91736-00

$6.22

13

CLAMP

90464-32801-00

$1.23

14

RIVET, BLIND

90267-489U6-00

$1.37

15

CLAMP

90464-17800-00

$3.33

16

TANK, FUEL

F1B-U7711-01-00

Unavailable

17

RING

F1B-U7773-00-00

$20.81

18

PACKING, SEAL

F1B-67747-00-00

$16.66

19

NUT, NYLON

9572R-06300-00

$2.80

20

COVER

FN8-6771K-00-00

$11.85

21

BAND, HOSE 62

90601-162U5-00

$6.17

22

CAP, FUEL FILLER

GP7-U7831-11-00

$34.30

23

PACKING

GP7-U7832-01-00

$5.35

24

SOCKET

GP7-U7833-11-00

$10.75

25

CHAIN BALL

GP7-U7835-00-00

$4.51

26

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

27

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

28

RIVET, BLIND

90267-329UR-00

$1.15

29

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

30

HOSE

F1B-U7844-01-00

Unavailable

31

BAND, HOSE 55

90601-155U4-00

$5.87

32

. CHECK VALVE

F1B-67767-00-00

Unavailable

33

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

34

HOSE

90699-50100-00

$26.99

35

CLAMP

90465-10098-00

$1.68

36

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

37

CLAMP

90465-10098-00

$1.68

38

CLAMP

90465-10098-00

$1.68

39

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

40

CLAMP

90465-10098-00

$1.68

41

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

42

NUT, SPECIAL

F1B-U2873-00-00

Unavailable

43

BOLT, WITH WASHER

90119-08800-00

$4.09

44

BRKT, BAND

F1B-6774J-00-00

$156.05

45

RIVET, BLIND

90267-489UE-00

Unavailable

46

NUT, NYLON

9572R-06300-00

$2.80

47

WASHER

9299R-06200-00

$0.43

48

BELT, TANK 1

F1B-67743-03-00

Unavailable

49

BOLT, WITH WASHER

90119-08800-00

$4.09

50

MAT 1

F1B-U759B-00-00

Unavailable

51

MAT 2

F1B-U759C-00-00

Unavailable
