ENGINE HATCH 1

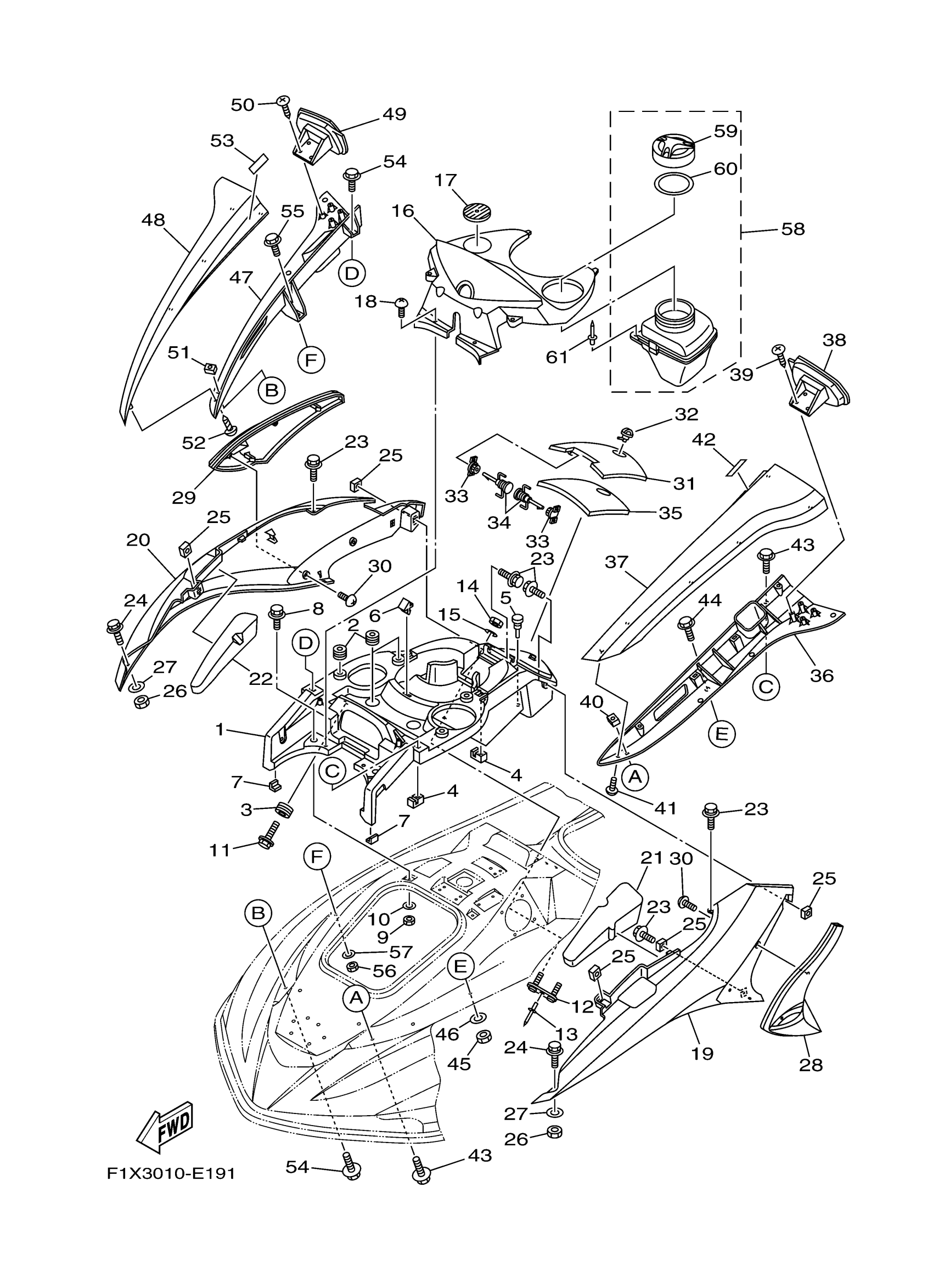

Yamaha FX1100AF (WaveRunner FX Cruiser HO) F1XA 2007 ENGINE HATCH 1 Diagram
#
1
CENTER COVER COMP.
F1X-U550A-00-00
Unavailable
2
. DAMPER 1
F1X-U828E-01-00
Unavailable
3
. GROMMET
90480-19800-00
Unavailable
4
NUT
F1X-U517E-01-00
Unavailable
5
. PLUG
90605-502U2-00
Unavailable
6
PACKING 4
F1K-U266C-10-00
$4.99
7
TRIM, HATCH 1
F1B-U5115-00-00
Unavailable
8
BOLT, WITH WASHER
90119-06880-00
Unavailable
9
NUT, NYLON
9572R-06300-00
Unavailable
10
WASHER
9299R-06200-00
Unavailable
11
BOLT, WITH WASHER
90119-05803-00
Unavailable
12
BRACKET
F1X-U5372-00-00
Unavailable
13
RIVET (EU0)
90267-48938-00
Unavailable
14
NUT, NYLON
9572R-06300-00
Unavailable
15
WASHER
9299R-06200-00
Unavailable
16
COVER METER
F1X-U8262-19-P0
Unavailable
16
COVER METER (LIGHT GRAY METALLIC P)
F1X-U8262-20-P1
Unavailable
17
MAT
F1X-U3844-01-00
Unavailable
18
SCREW(GH1)
90149-05903-00
Unavailable
19
COVER,SIDE 1 (LIGHT GRAY METALLIC P)
F1X-U377B-10-P0
Unavailable
19
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC T)
F1X-U377B-30-P0
Unavailable
20
COVER,SIDE 2 (LIGHT GRAY METALLIC P)
F1X-U377C-10-P0
Unavailable
20
COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC T)
F1X-U377C-30-P0
Unavailable
21
INNER, COVER SIDE 1
F1X-U377H-01-00
Unavailable
22
INNER, COVER SIDE 2
F1X-U377J-01-00
Unavailable
23
BOLT, WITH WASHER
90119-06880-00
Unavailable
24
BOLT, WITH WASHER
90119-06880-00
Unavailable
25
NUT
F1X-U517E-01-00
Unavailable
26
NUT, NYLON
9572R-06300-00
Unavailable
27
WASHER
9299R-06200-00
Unavailable
28
ORNAMENT, SIDE LH
F1X-U377F-00-00
Unavailable
29
ORNAMENT, SIDE RH
F1X-U377G-00-00
Unavailable
30
SCREW(GH1)
90149-05903-00
Unavailable
31
LID HATCH
F1X-U517H-00-00
Unavailable
32
LOCK
F1X-62875-01-00
Unavailable
33
GEAR ASSY
F1B-60210-00-00
Unavailable
34
PIN, HINGE
F1B-6517R-00-00
Unavailable
35
PACKING CASE
F1X-U519D-01-00
Unavailable
36
COVER, MIRROR LOWER
F1X-U596K-10-P0
Unavailable
36
COVER, MIRROR LOWER (LIGHT GRAY METALLIC P)
F1X-U596K-20-P0
Unavailable
37
COVER, MIRROR UPPER
F1X-U596H-10-P0
Unavailable
37
COVER, MIRROR UPPE
F1X-U596H-29-P0
Unavailable
38
MIRROR LH (LIGHT GRAY METALLIC P)
F1X-U596B-10-00
Unavailable
39
SCREW(GH1)
90149-05903-00
Unavailable
40
NUT
F1X-U517E-01-00
Unavailable
41
SCREW(GH1)
90149-05903-00
Unavailable
42
. PACKING 3
F1K-U266B-00-00
Unavailable
43
BOLT, WITH WASHER
90119-06880-00
Unavailable
44
BOLT, WITH WASHER
90119-06880-00
Unavailable
45
NUT, NYLON
9572R-06300-00
Unavailable
46
WASHER
9299R-06200-00
Unavailable
47
COVER, MIRROR LOWER
F1X-U596L-10-P0
Unavailable
47
COVER, MIRROR LOWER (LIGHT GRAY METALLIC P)
F1X-U596L-20-P0
Unavailable
48
COVER, MIRROR UPPER
F1X-U596J-10-P0
Unavailable
48
COVER, MIRROR UPPE
F1X-U596J-29-P0
Unavailable
49
MIRROR RH (LIGHT GRAY METALLIC P)
F1X-U596C-10-00
Unavailable
50
SCREW(GH1)
90149-05903-00
Unavailable
51
NUT
F1X-U517E-01-00
Unavailable
52
SCREW(GH1)
90149-05903-00
Unavailable
53
. PACKING 3
F1K-U266B-00-00
Unavailable
54
BOLT, WITH WASHER
90119-06880-00
Unavailable
55
BOLT, WITH WASHER
90119-06880-00
Unavailable
56
NUT, NYLON
9572R-06300-00
Unavailable
57
WASHER
9299R-06200-00
Unavailable
58
CASE ASSY 1
F1X-U591A-02-00
Unavailable
59
. CAP, CASE
F1X-U591C-01-00
Unavailable
60
PACKING,CASE
F1X-U591D-02-00
Unavailable
61
RIVET, 1
F3J-U516R-00-00
Unavailable
