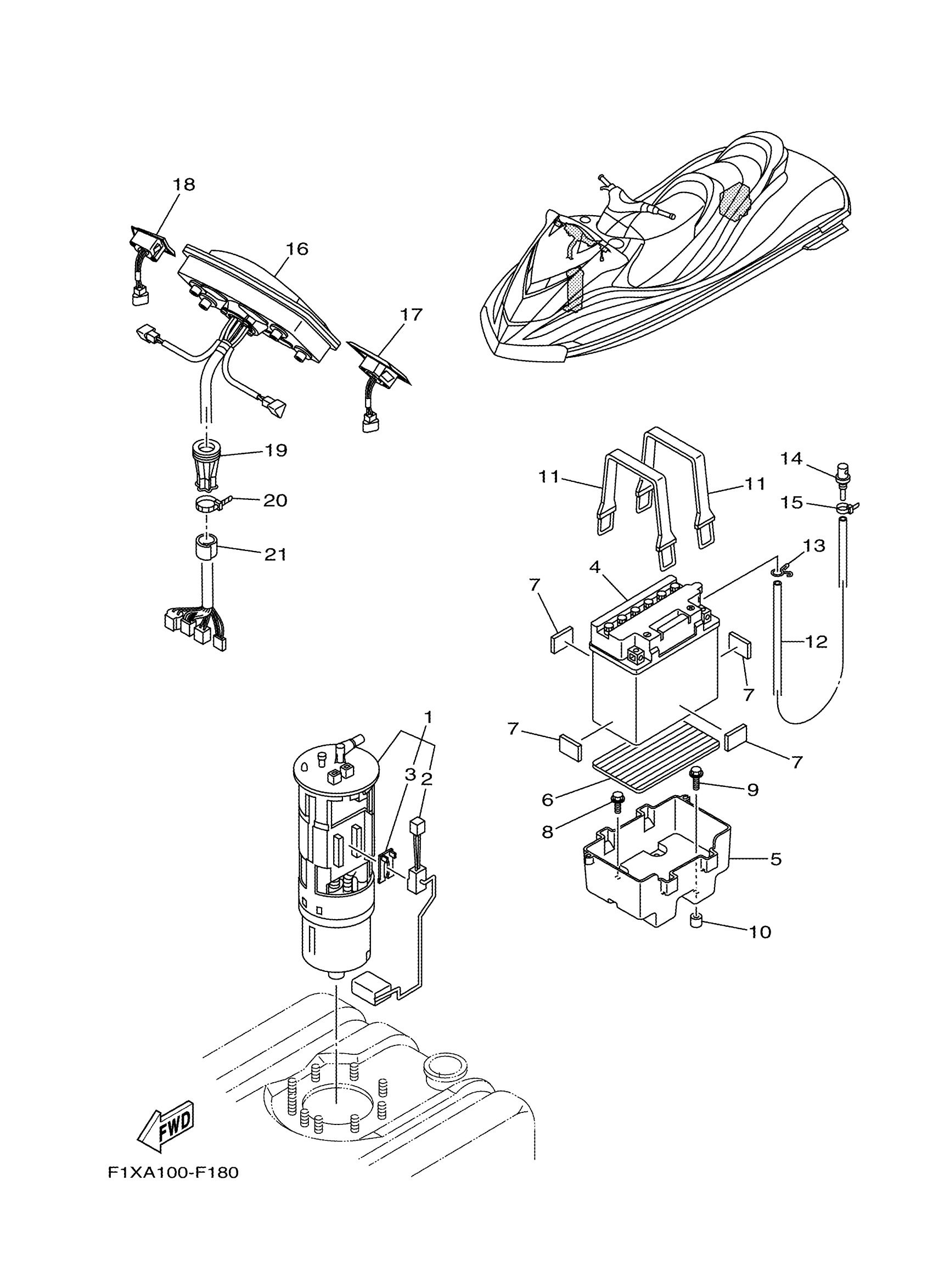

Yamaha FX1100AF (WaveRunner FX Cruiser HO) F1XA 2007 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

$187.33

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PAD, BATTERY

F1S-U8221-00-00

$2.88

7

PAD, BATTERY

EU0-U8221-31-00

$1.80

8

BOLT, WITH WASHER

90119-069US-00

$2.66

9

BOLT, WITH WASHER

90119-06820-00

$3.65

10

PLATE, BATTERY

F1B-6821G-01-00

$4.03

11

BAND,BATTERY 1

EU0-U821D-00-00

$10.28

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

$1.42

14

NIPPLE

GJ3-6215F-00-00

$8.94

15

CLAMP

90465-10098-00

$2.24

16

METER ASSY

F1X-6820A-03-00

Unavailable

17

SWITCH ASSY.

F1X-68090-00-00

$189.54

18

SWITCH ASSY.

F1X-68090-10-00

$297.00

19

GROMMET

F3J-U822E-01-00

$5.87

20

CLAMP

90464-32801-00

$1.29

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable
