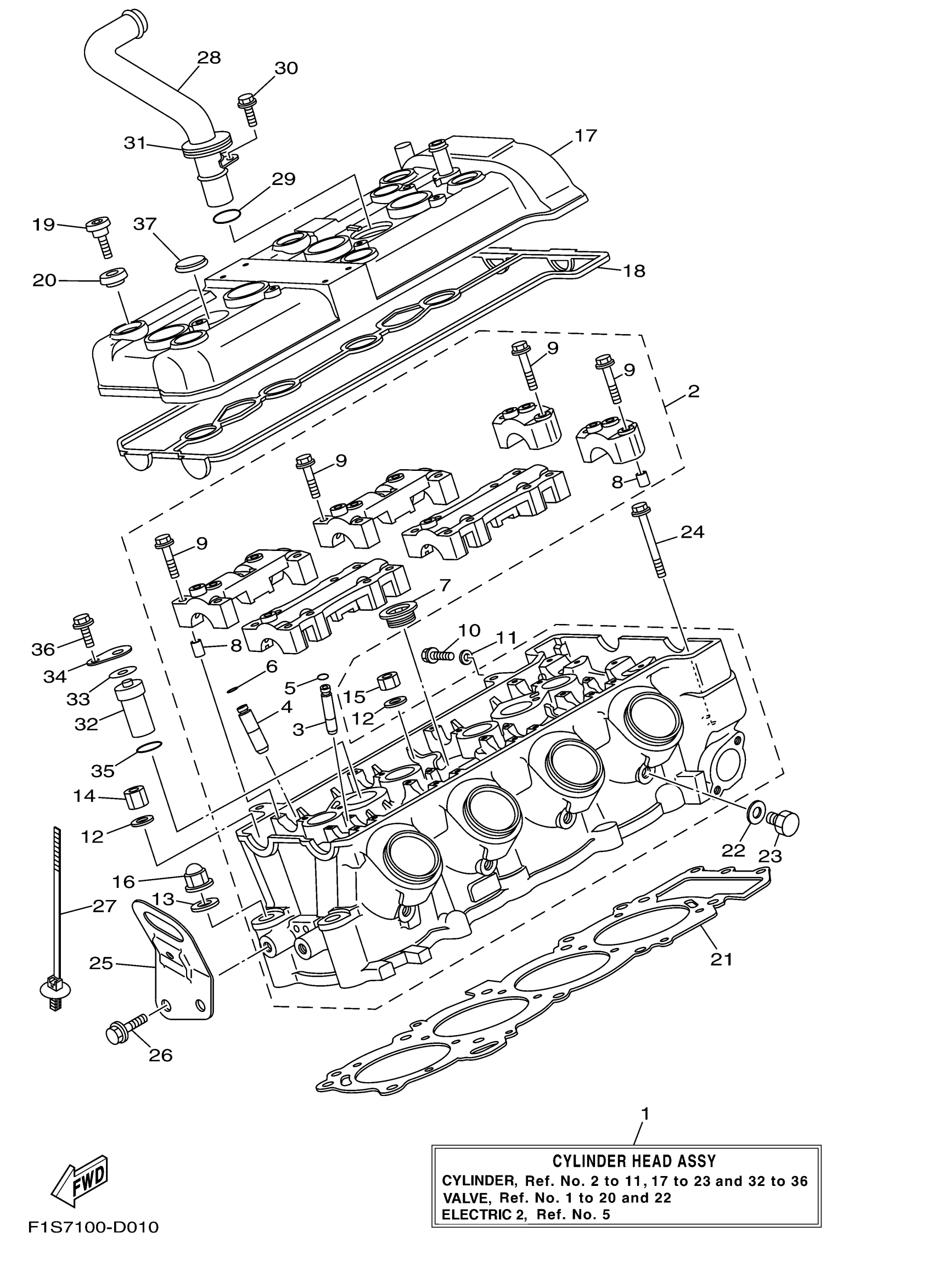

Yamaha FX1100AF (WaveRunner FX Cruiser HO) F1XA 2007 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

6B6-W009A-01-94

Unavailable

2

CYLINDER HEAD ASSY

6B6-11102-00-00

Unavailable

3

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

4

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

5

CIRCLIP(1HX)

93440-07149-00

$8.49

6

CIRCLIP(1WG)

93440-10153-00

$2.39

7

PLUG, STRAIGHT SCREW

90340-27001-00

$19.99

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

. BOLT, FLANGE

90105-06026-00

Unavailable

10

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

11

GASKET 256113960000

90430-06014-00

Unavailable

12

WASHER, PLATE

90201-10033-00

$8.49

13

WASHER, PLATE

90201-10019-00

Unavailable

14

NUT

90179-10006-00

$9.49

15

NUT (26H)

90179-10414-00

$11.49

16

NUT, CAP

90176-10001-00

Unavailable

17

COVER, CYLINDER HEAD 1

6B6-11191-02-94

Unavailable

18

GASKET, HEAD COVER 1

60E-11193-01-00

Unavailable

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

21

. GASKET, CYLINDER HEAD 1

6B6-11181-00-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

23

BOLT

91380-06012-00

Unavailable

24

BOLT, WITH WASHER

97513-06555-00

Unavailable

25

HANGER, ENGINE 2

60E-1111E-00-00

Unavailable

26

BOLT, WITH WASHER(61B)

97513-08520-00

Unavailable

27

CLAMP

90464-20005-00

Unavailable

28

PIPE 2

6B6-12482-00-00

Unavailable

29

O-RING (716)

93210-18417-00

Unavailable

30

BOLT,SOCKET

91317-06016-00

Unavailable

31

SEAL, PIPE 1

60E-12494-00-00

Unavailable

32

PIPE 3

60E-12483-10-00

Unavailable

33

GASKET 1

60E-12474-01-00

Unavailable

34

PLATE 2

60E-12537-01-00

Unavailable

35

O-RING (716)

93210-18417-00

Unavailable

36

BOLT,SOCKET

91317-06016-00

Unavailable

37

SEAL, PIPE 2

60E-12495-00-00

Unavailable
