- FX10ZW (FX NYTRO) 8GL50 2010
TRACK SUSPENSION 2

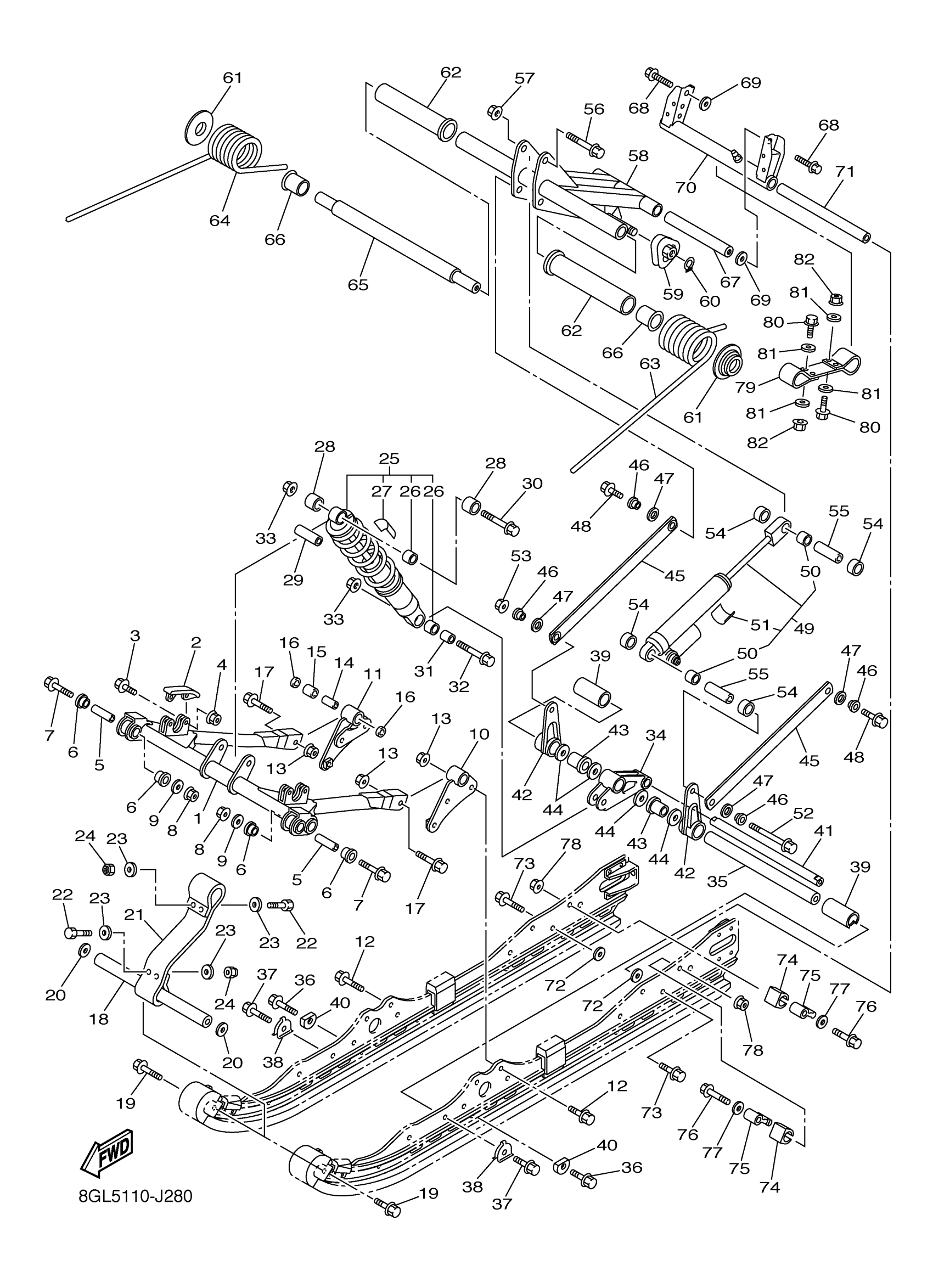

Yamaha FX10ZW (FX NYTRO) 8GL50 2010 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8GL-47331-00-00
Unavailable
2
RUNNER, SLIDING 2
8F3-47422-10-00
$71.99
3
BOLT, FLANGE
95817-06020-00
$3.81
4
NUT, U FLANGE
95604-06200-00
$8.49
5
SHAFT 1
8GL-47465-00-00
Unavailable
6
BUSH, SOLID(2WR)
90381-18068-00
$39.99
7
BOLT, FLANGE
90105-10135-00
$5.60
8
NUT, S/L FLANGE
95602-10200-00
$4.82
9
WASHER, PLATE
90201-10046-00
$7.49
10
BRACKET 1
8GL-47415-00-00
Unavailable
11
BRACKET 4
8GL-47418-00-00
Unavailable
12
. BOLT, FLANGE
95812-10025-00
Unavailable
13
NUT, S/L FLANGE
95602-10200-00
$4.82
14
COLLAR
90387-1012A-00
$21.99
15
BEARING
93315-31758-00
$40.99
16
OIL SEAL
93109-17071-00
Unavailable
17
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
18
SHAFT 3
8FU-47485-00-00
Unavailable
19
BOLT, FLANGE
95817-10030-00
Unavailable
20
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
21
STOPPER 1
8GL-47495-00-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
WASHER, PLATE
90201-06036-00
Unavailable
24
NUT, NYLON
95707-06300-00
Unavailable
25
SHOCK ABSORBER 2
8GL-47481-30-00
Unavailable
26
BUSH, BIMETAL FORMED
90384-17N50-00
Unavailable
27
LABEL, WARNING
4AA-22259-60-00
Unavailable
28
SPACER
8FU-47341-00-00
Unavailable
29
COLLAR
90387-10034-00
Unavailable
30
BOLT, FLANGE
90105-10335-00
Unavailable
31
COLLAR
90387-10064-00
Unavailable
32
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
$4.82
34
BRACKET, ARM PIVOT
8GL-47349-00-00
Unavailable
35
SHAFT 5
8GL-47487-00-00
Unavailable
36
BOLT, FLANGE
95817-10030-00
Unavailable
37
BOLT, FLANGE
90105-10334-00
Unavailable
38
WASHER
8GL-47384-00-00
Unavailable
39
COLLAR
90387-26010-00
Unavailable
40
SPACER
8GL-47341-00-00
Unavailable
41
SHAFT 4
8GL-47486-00-00
Unavailable
42
BRACKET 2
8GL-47416-00-00
Unavailable
43
BUSH
90386-25002-00
Unavailable
44
WASHER, PLATE (5F7)
90201-256E4-00
Unavailable
45
RELAY ROD ASSY
8GL-47490-00-00
Unavailable
46
COLLAR 2
8HR-47366-10-00
Unavailable
47
WASHER, PLATE
90201-16027-00
Unavailable
48
BOLT, FLANGE
95817-10030-00
Unavailable
49
SHOCK ABSORBER
8GL-47480-60-00
Unavailable
50
BUSH, BIMETAL FORMED
90384-17N50-00
Unavailable
51
LABEL, WARNING
4AA-22259-60-00
Unavailable
52
BOLT, FLANGE
90105-10375-00
Unavailable
53
NUT, S/L FLANGE
95602-10200-00
$4.82
54
SPACER
8FU-47341-00-00
Unavailable
55
COLLAR
90387-10034-00
Unavailable
56
BOLT, FLANGE
90105-10335-00
Unavailable
57
NUT, S/L FLANGE
95602-10200-00
$4.82
58
ARM, PIVOT 2
8GL-47332-00-00
Unavailable
59
HOOK 2
8ES-47447-00-00
Unavailable
60
CIRCLIP(13H)
99009-14400-00
Unavailable
61
PLATE, GUIDE
8ES-47467-00-00
Unavailable
62
PROTECTOR
8GL-47445-01-00
Unavailable
63
SPRING, REAR 1
8GL-47473-20-00
Unavailable
64
SPRING, REAR 2
8GL-47474-20-00
Unavailable
65
SHAFT 2
8GL-47475-00-00
Unavailable
66
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
67
SHAFT 6
8GC-47488-00-00
Unavailable
68
BOLT, FLANGE
95817-10030-00
Unavailable
69
WASHER, PLATE
90201-19008-00
Unavailable
70
BRACKET 3
8GC-47417-10-00
Unavailable
71
SHAFT 3
8FU-47485-00-00
Unavailable
72
WASHER PLATE (789)
90201-10136-00
Unavailable
73
BOLT, FLANGE
95817-10030-00
Unavailable
74
STOPPER 2
8GC-47496-00-00
Unavailable
75
COLLAR
8GN-47338-00-00
Unavailable
76
BOLT, HEXAGON
97017-10050-00
Unavailable
77
WASHER, PLATE
90201-10061-00
Unavailable
78
NUT, S/L FLANGE
95602-10200-00
$4.82
79
STOPPER 2
8GL-47496-10-00
Unavailable
80
BOLT, HEXAGON
97017-06025-00
Unavailable
81
WASHER, PLATE
90201-06036-00
Unavailable
82
NUT, NYLON
95707-06300-00
Unavailable
