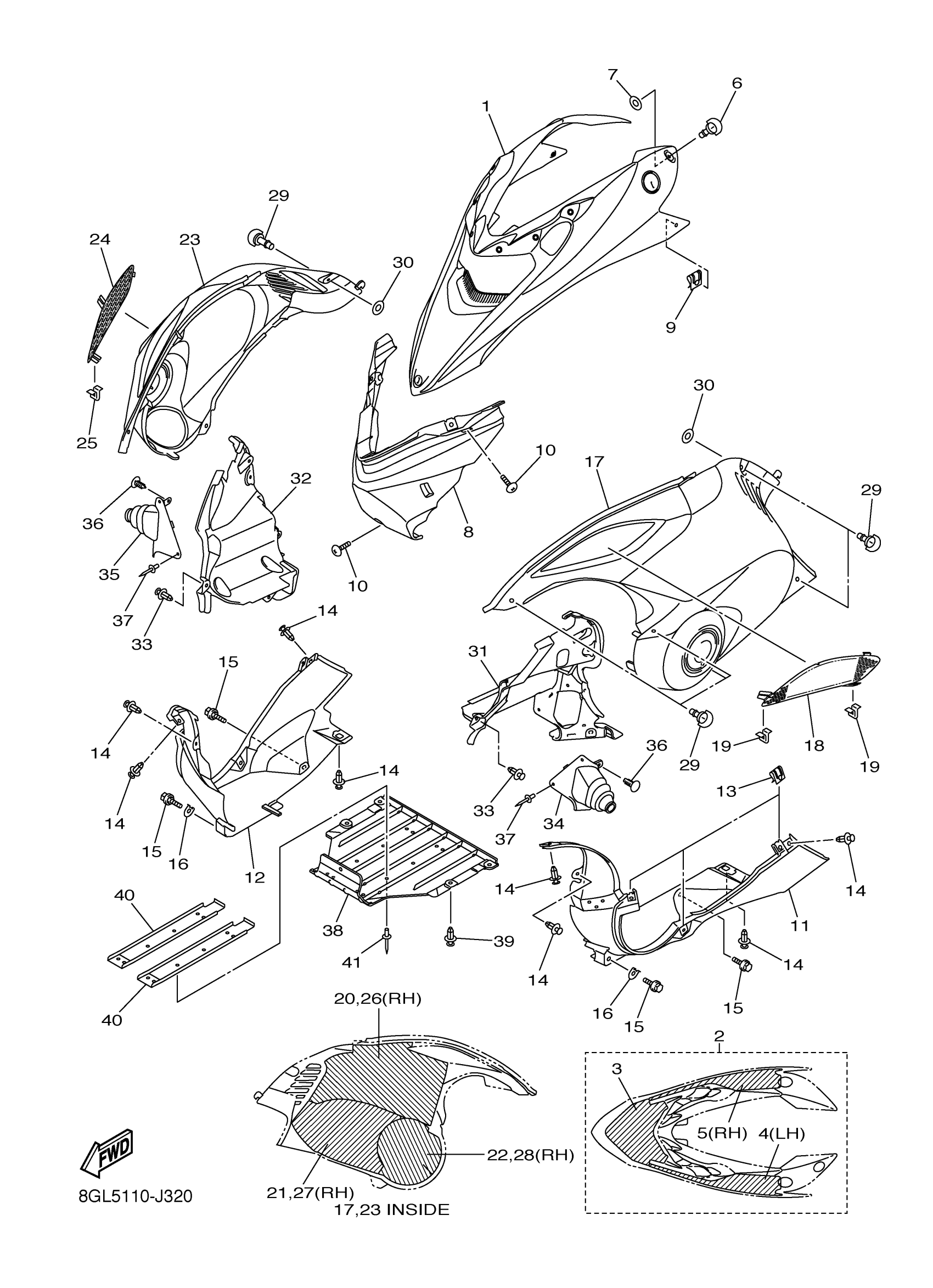

Yamaha FX10ZW (FX NYTRO) 8GL50 2010 SHROUD Diagram
#
1
SHROUD
8GL-77111-40-00
Unavailable
2
LINING SET
8GL-W7726-00-00
$58.99
3
DAMPER, NOISE 11
8GL-77271-00-00
Unavailable
4
DAMPER, NOISE 12
8GL-77272-00-00
Unavailable
5
DAMPER, NOISE 13
8GL-77273-00-00
Unavailable
6
HEAD
3FV-28386-00-00
$40.99
7
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
8
PANEL, SUB FRAME 1
8GL-21912-00-00
Unavailable
9
PLATE, SPRING
4XV-2177L-01-00
$6.99
10
SCREW(2XF)
90149-06263-00
$9.49
11
HOOD 1
8GL-21982-00-00
$166.99
12
HOOD 2
8GL-21983-00-00
$172.99
13
PLATE, SPRING
4XV-2177L-01-00
$6.99
14
RIVET
90269-08006-00
$2.97
15
BOLT
90109-06174-00
$9.49
16
PLATE 1
8GL-77185-00-00
Unavailable
17
HOOD 3
8GL-2197H-00-00
Unavailable
18
LOUVER 5
8GL-77109-01-00
Unavailable
19
CLIP
90468-06001-00
Unavailable
20
DAMPER, NOISE 14
8GL-77274-00-00
Unavailable
21
DAMPER, NOISE 15
8GL-77275-00-00
Unavailable
22
DAMPER, NOISE 16
8GL-77276-00-00
Unavailable
23
HOOD 4
8GL-2198H-00-00
Unavailable
24
LOUVER 6
8GL-77108-00-00
Unavailable
25
CLIP
90468-06001-00
Unavailable
26
DAMPER, NOISE 17
8GL-77277-00-00
Unavailable
27
DAMPER, NOISE 18
8GL-77278-00-00
Unavailable
28
DAMPER, NOISE 19
8GL-77279-00-00
Unavailable
29
HEAD
3FV-28386-00-00
$40.99
30
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
31
FRAME UNDER 1
8GL-2196A-00-00
Unavailable
32
FRAME, UNDER 2
8GL-2196E-00-00
Unavailable
33
RIVET
90269-08006-00
$2.97
34
COVER 1
8GL-2198F-00-00
Unavailable
35
COVER 3
8GL-2198J-00-00
Unavailable
36
RIVET
90269-05003-00
Unavailable
37
RIVET, BLIND
90267-48024-00
Unavailable
38
PROTECTOR
8GL-2193A-00-00
Unavailable
39
RIVET
90269-08006-00
$2.97
40
PATCH 10
8GL-21997-00-00
Unavailable
41
RIVET, BLIND
90267-48018-00
Unavailable
