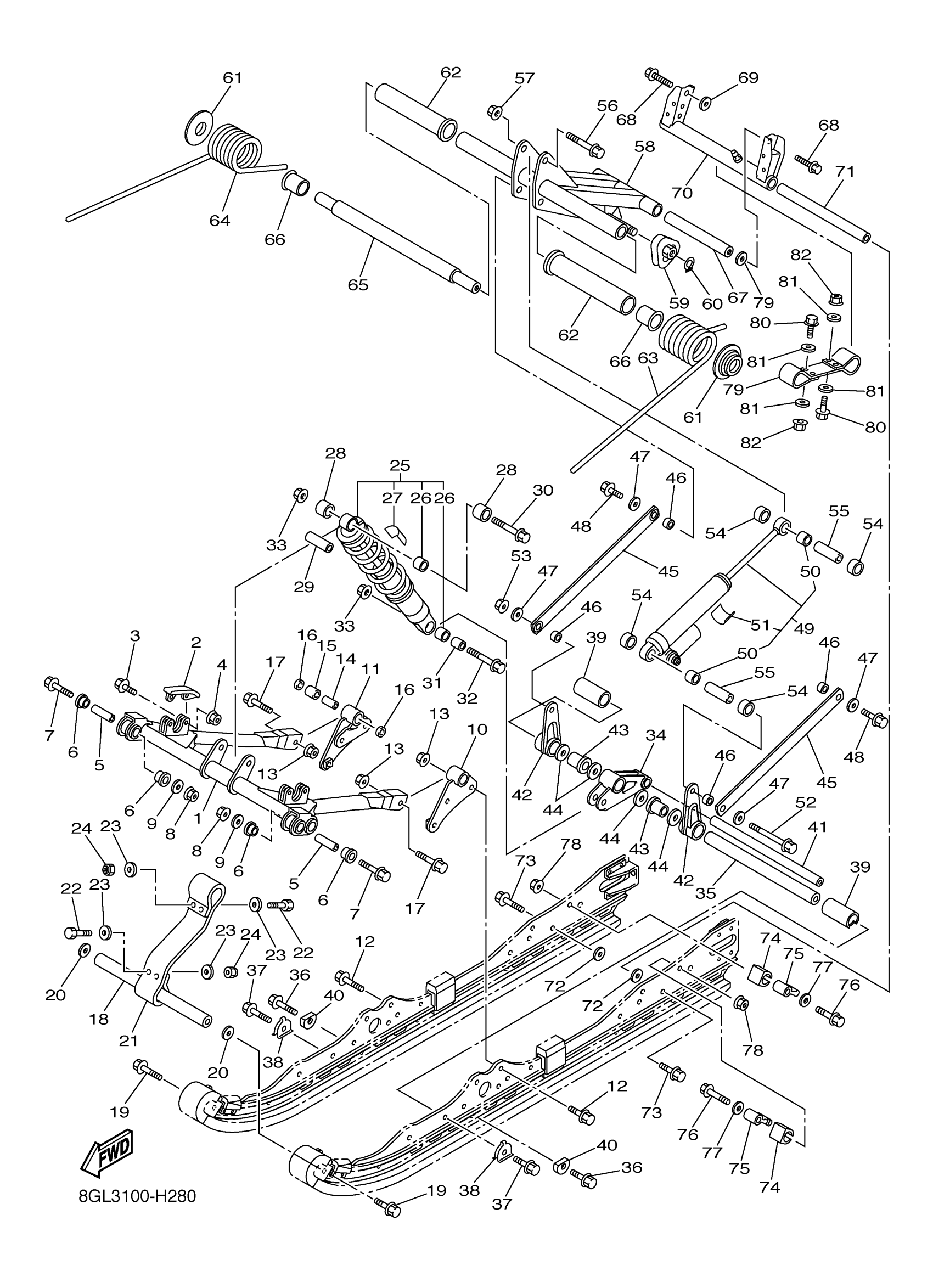

Yamaha FX10YW (FX NYTRO) 8GL30 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8GL-47331-00-00

$380.75

2

RUNNER, SLIDING 2

8F3-47422-01-00

$15.63

3

BOLT, FLANGE

95817-06020-00

$2.69

4

NUT, U FLANGE

95604-06200-00

$2.35

5

SHAFT 1

8GL-47465-00-00

$12.32

6

BUSH, SOLID(2WR)

90381-18068-00

$33.86

7

BOLT, FLANGE

90105-10135-00

$5.14

8

NUT, S/L FLANGE

95602-10200-00

$2.29

9

WASHER, PLATE

90201-10046-00

$4.66

10

BRACKET 1

8GL-47415-00-00

$68.38

11

BRACKET 4

8GL-47418-00-00

$68.38

12

. BOLT, FLANGE

95812-10025-00

$2.45

13

NUT, S/L FLANGE

95602-10200-00

$2.29

14

COLLAR

90387-1012A-00

$17.77

15

BEARING

93315-31758-00

$33.76

16

OIL SEAL

93109-17071-00

$6.72

17

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

18

SHAFT 3

8FU-47485-00-00

$45.37

19

BOLT, FLANGE

95817-10030-00

$6.17

20

WASHER, PLATE (26H)

90201-102G9-00

$6.38

21

STOPPER 1

8GL-47495-00-00

$69.89

22

BOLT, HEXAGON

97017-06025-00

$2.98

23

WASHER, PLATE

90201-06036-00

$6.26

24

NUT, NYLON

95707-06300-00

$3.20

25

SHOCK ABSORBER 2

8GL-47481-30-00

$540.99

26

BUSH, BIMETAL FORMED

90384-17N50-00

$11.02

27

LABEL, WARNING

4AA-22259-60-00

$6.02

28

SPACER

8FU-47341-00-00

$6.65

29

COLLAR

90387-10034-00

$23.43

30

BOLT, FLANGE

90105-10335-00

$10.46

31

COLLAR

90387-10064-00

Unavailable

32

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

33

NUT, S/L FLANGE

95602-10200-00

$2.29

34

BRACKET, ARM PIVOT

8GL-47349-00-00

Unavailable

35

SHAFT 5

8GL-47487-00-00

$148.32

36

BOLT, FLANGE

95817-10030-00

$6.17

37

BOLT, FLANGE

90105-10334-00

$10.88

38

WASHER

8GL-47384-00-00

$11.38

39

COLLAR

90387-26010-00

Unavailable

40

SPACER

8GL-47341-00-00

$13.22

41

SHAFT 4

8GL-47486-00-00

$90.83

42

BRACKET 2

8GL-47416-00-00

Unavailable

43

BUSH

90386-25002-00

$30.52

44

WASHER, PLATE (5F7)

90201-256E4-00

$9.78

45

RELAY ROD ASSY

8GL-47490-00-00

$66.57

46

COLLAR

90387-10066-00

$6.05

47

WASHER, PLATE

90201-16027-00

$7.09

48

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

49

SHOCK ABSORBER

8GL-47480-30-00

$726.99

50

BUSH, BIMETAL FORMED

90384-17N50-00

$11.02

51

LABEL, WARNING

4AA-22259-60-00

$6.02

52

BOLT, FLANGE

90105-10338-00

Unavailable

53

NUT, S/L FLANGE

95602-10200-00

$2.29

54

SPACER

8FU-47341-00-00

$6.65

55

COLLAR

90387-10034-00

$23.43

56

BOLT, FLANGE

90105-10335-00

$10.46

57

NUT, S/L FLANGE

95602-10200-00

$2.29

58

ARM, PIVOT 2

8GL-47332-00-00

$271.25

59

HOOK 2

8ES-47447-00-00

$17.94

60

CIRCLIP(13H)

99009-14400-00

$2.48

61

PLATE, GUIDE

8ES-47467-00-00

$16.89

62

PROTECTOR

8GL-47445-01-00

$11.20

63

SPRING, REAR 1

8GL-47473-20-00

$238.18

64

SPRING, REAR 2

8GL-47474-20-00

$244.83

65

SHAFT 2

8GL-47475-00-00

$94.55

66

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

67

SHAFT 6

8GC-47488-00-00

$37.00

68

BOLT, FLANGE

95817-10030-00

$6.17

69

WASHER, PLATE

90201-19008-00

$3.37

70

BRACKET 3

8GC-47417-10-00

$81.34

71

SHAFT 3

8FU-47485-00-00

$45.37

72

WASHER PLATE (789)

90201-10136-00

$7.26

73

BOLT, FLANGE

95817-10030-00

$6.17

74

STOPPER 2

8GC-47496-00-00

$4.22

75

COLLAR

8GN-47338-00-00

$28.02

76

BOLT, HEXAGON

97017-10050-00

Unavailable

77

WASHER, PLATE

90201-10061-00

$5.22

78

NUT, S/L FLANGE

95602-10200-00

$2.29

79

STOPPER 2

8GL-47496-10-00

Unavailable

80

BOLT, HEXAGON

97017-06025-00

$2.98

81

WASHER, PLATE

90201-06036-00

$6.26

82

NUT, NYLON

95707-06300-00

$3.20
