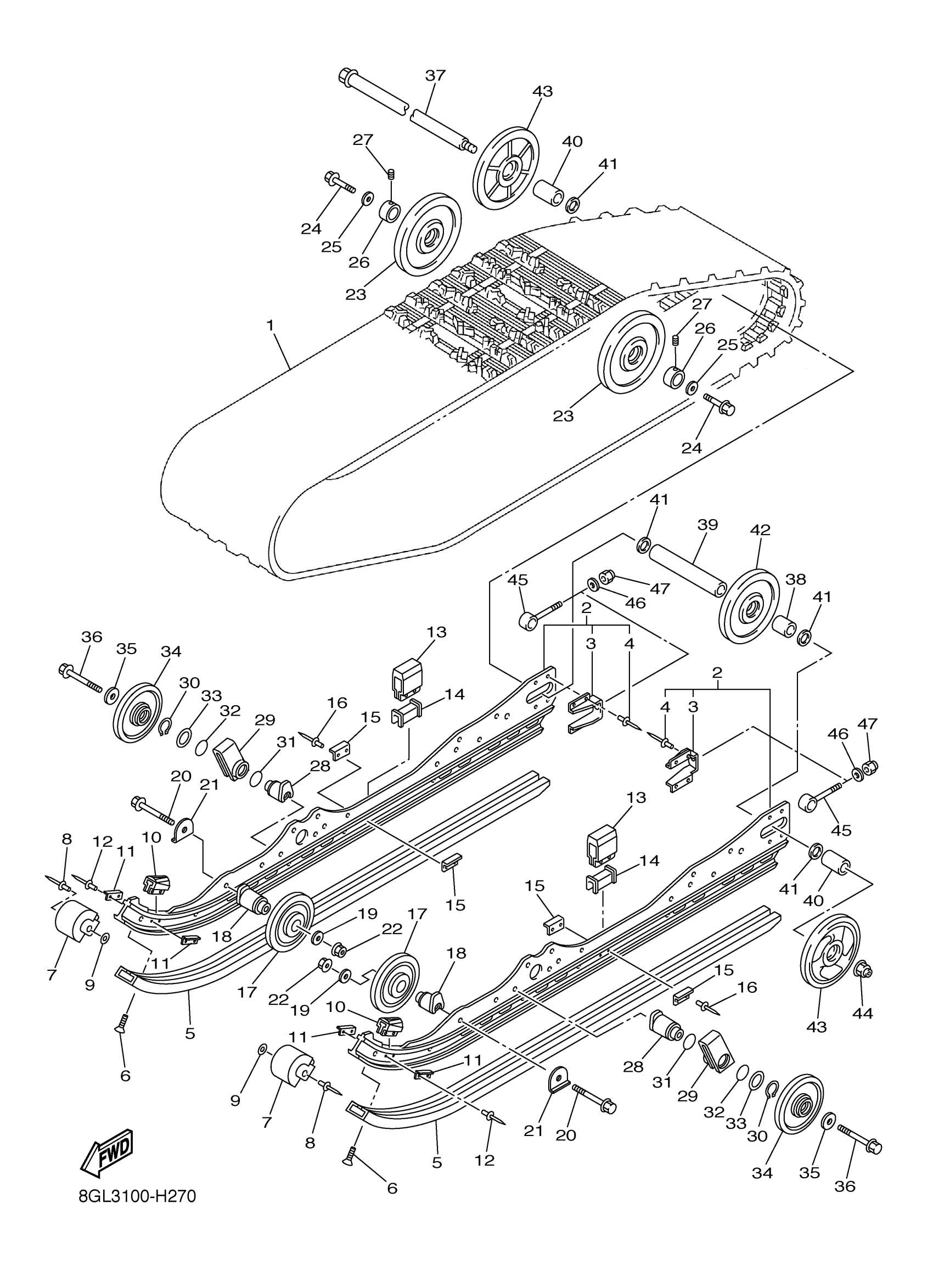

Yamaha FX10YW (FX NYTRO) 8GL30 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8FA-47110-10-00

Unavailable

2

FRAME, SLIDING

8GL-W4741-10-00

$269.08

3

BRACKET

8DM-4741B-00-00

$39.86

4

RIVET

8V0-47468-00-00

$7.54

5

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

$27.82

6

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

7

RUNNER, SLIDING 2

8GL-47422-00-00

$24.80

8

RIVET BLIND

90267-48194-00

$2.20

9

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

10

DAMPER 1

8ES-47456-00-00

$6.28

11

PLATE, DAMPER

8K2-47458-01-00

$2.45

12

RIVET, BLIND

90267-48199-00

$2.62

13

DAMPER 2

8GL-47457-00-00

Unavailable

14

SPACER

8GL-47573-00-00

Unavailable

15

PLATE, DAMPER

8AX-47458-00-00

$8.08

16

RIVET, BLIND

90267-48199-00

$2.62

17

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

18

BRACKET 7

8ES-47419-00-00

$21.03

19

WASHER, PLATE

90201-10038-00

$5.12

20

BOLT, FLANGE

95812-10080-00

$7.18

21

WASHER, CLAW

90214-10003-00

$19.45

22

NUT, S/L FLANGE

95602-10200-00

$2.29

23

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

24

BOLT

90109-10032-00

$5.86

25

WASHER, PLATE

90201-10064-00

$3.60

26

COLLAR 1

8FS-47365-00-00

$24.06

27

BOLT, SET (8K2)

90113-06039-00

$6.97

28

BRACKET 7

8ES-47419-10-00

$21.03

29

HOOK 1

8ES-47446-00-00

$16.85

30

CIRCLIP(6U2)

93410-35M10-00

$4.54

31

O-RING (16G)

93210-35537-00

$11.32

32

O-RING (21A)

93210-34633-00

$8.31

33

WASHER, PLATE

90201-35013-00

$3.49

34

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

35

WASHER, PLATE

90201-10038-00

$5.12

36

BOLT, FLANGE

95812-10080-00

$7.18

37

REAR AXLE COMP.

8L8-47520-10-00

$67.31

38

COLLAR

90387-20015-00

$23.32

39

COLLAR

90387-20016-00

$20.42

40

COLLAR

90387-20019-00

$22.38

41

WASHER, PLATE

90201-20022-00

$6.78

42

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

43

WEIGHT

8EK-47550-11-00

Unavailable

44

NUT, U FLANGE

95602-14200-00

$9.89

45

COLLAR 3

8DM-47479-00-00

$15.04

46

WASHER, PLATE

92990-10600-00

$2.61

47

NUT, NYLON

95707-10300-00

$6.68
