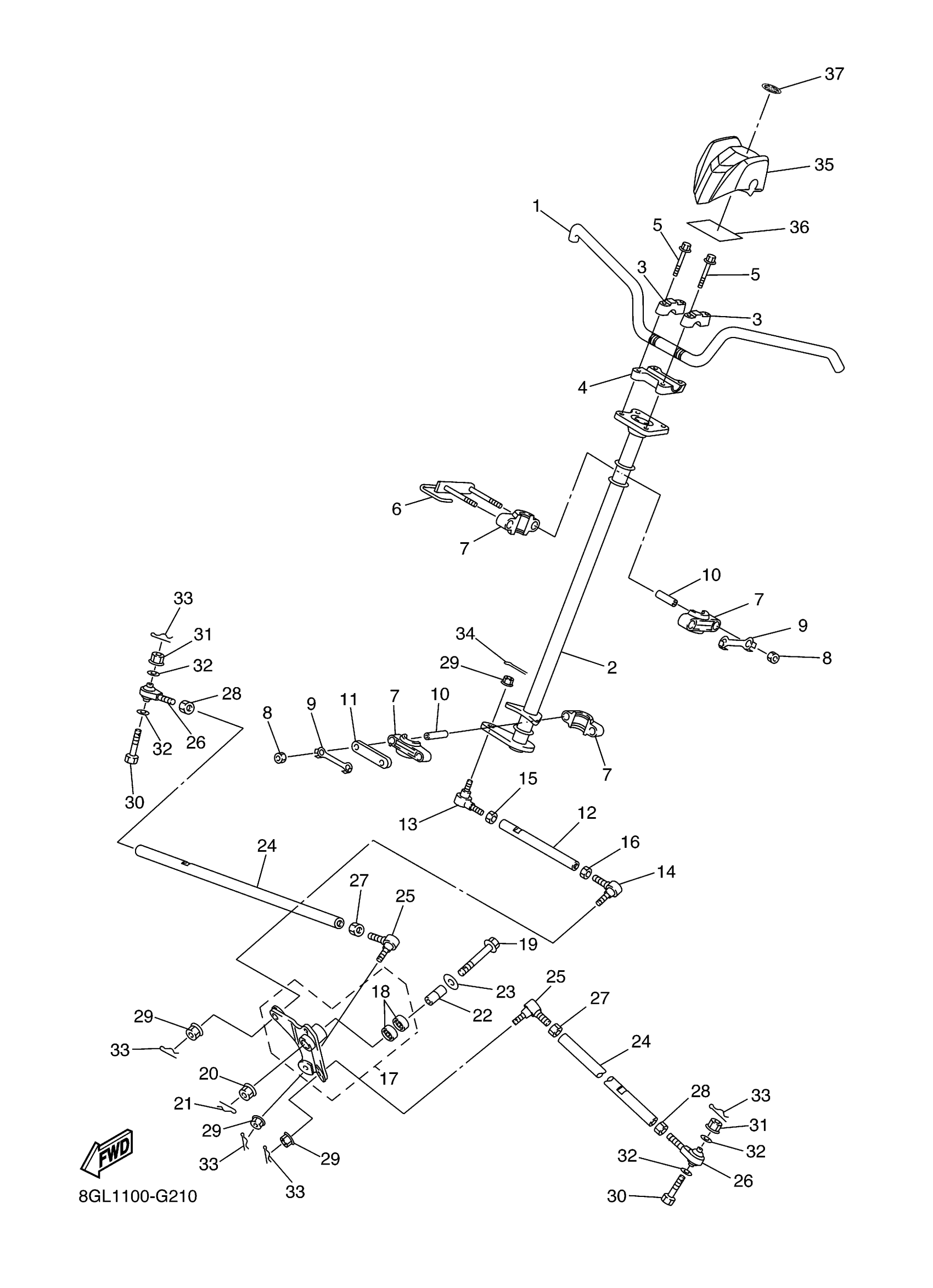

Yamaha FX10YW (FX NYTRO) 8GL30 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8GL-26111-00-00

Unavailable

2

COLUMN, STEERING 2

8GL-23813-00-00

$204.22

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

HOLDER, HANDLE LOWER

8ED-23442-00-00

$49.85

5

BOLT, FLANGE

95817-08055-00

$2.82

6

HOLDER, BEARING

8GL-23872-00-00

$21.23

7

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

8

NUT(6L2)

95333-08600-00

$3.20

9

WASHER, LOCK 1

1UY-23894-01-00

$6.86

10

COLLAR

8HF-2412G-00-00

$6.18

11

HOLDER 2

8FA-23867-00-00

$2.49

12

ROD, STEERING RELAY

8GL-23821-00-00

$38.88

13

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

14

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

15

NUT (682)

95380-10700-00

$5.78

16

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

17

ARM PIVOT ASSY

8GL-2389K-00-00

$167.83

18

BEARING

93317-420A7-00

$39.17

19

BOLT, FLANGE

90105-12070-00

$13.71

20

NUT, SELF-LOCKING

95602-12200-00

$3.82

21

PIN, COTTER

91490-20035-00

$3.25

22

COLLAR

8GL-2412G-00-00

$17.31

23

WASHER, PLATE

90201-13016-00

$5.34

24

ROD, TIE

8HK-23831-00-00

$51.86

25

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

26

JOINT, UNIVERSAL 3

8GC-23847-00-00

$68.89

27

NUT (682)

95380-10700-00

$5.78

28

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

29

NUT, FLANGE(3BM)

95704-10500-00

$1.71

30

BOLT

8GC-23493-00-00

$6.18

31

NUT,FLANGE(J10)

95702-08500-00

$0.80

32

WASHER, PLATE

90201-06018-00

$3.74

33

PIN, COTTER (648)

91490-20015-00

$1.85

34

PIN, COTTER

91490-20025-00

$1.31

35

PROTECTOR, HANDLEBAR

8GL-26124-00-00

$21.78

36

DAMPER

8GL-26113-00-00

$1.42

37

EMBLEM

8AC-2414B-01-00

$33.63
