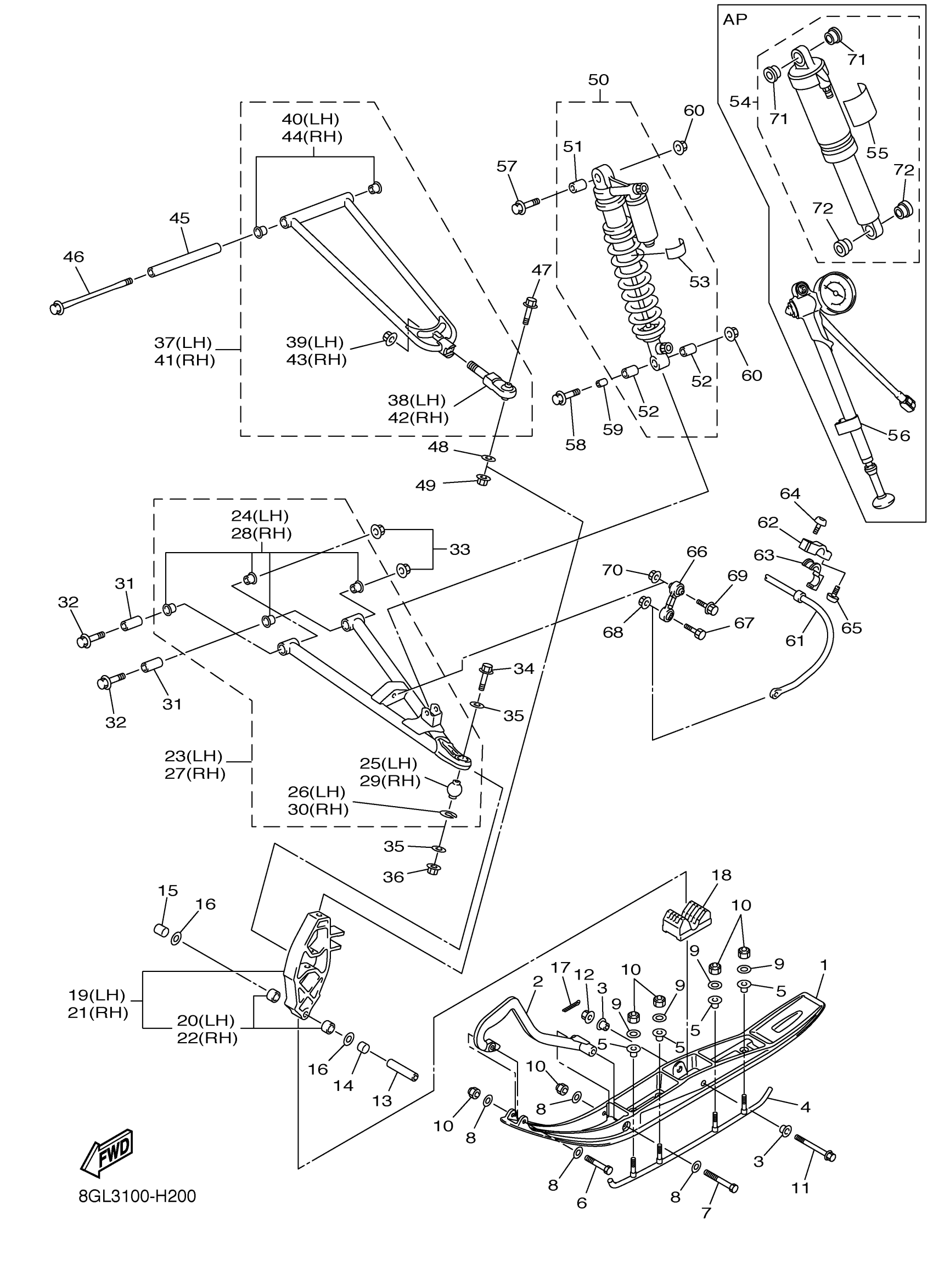

Yamaha FX10YW (FX NYTRO) 8GL30 2009 SKI Diagram

#

Description
Price

1

SKI 1, BLACK

8EX-23711-00-BK

Unavailable

2

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

Unavailable

3

. COLLAR 1

8EX-F3754-00-00

Unavailable

4

RUNNER 1

8GK-F3731-00-00

Unavailable

5

BUSH, SKI 1

8EK-F3751-00-00

$5.66

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

BOLT, HEXAGON

97027-08100-00

$4.55

8

WASHER, PLATE (3L7)

90201-08784-00

$2.54

9

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

10

NUT, NYLON

95717-08300-00

$2.57

11

BOLT, FLANGE

90105-10070-00

$9.46

12

NUT, S/L FLANGE

95602-10200-00

$2.29

13

COLLAR

90387-1012H-00

$20.68

14

COLLAR

90387-16017-00

$4.43

15

COLLAR

90387-16018-00

$25.38

16

WASHER, PLATE

90201-16022-00

$8.31

17

PIN, COTTER

91490-20025-00

$1.31

18

STOPPER 1

8HL-23743-00-00

$66.52

19

STEERING KNUCKLE ASSY (LEFT)

8HK-23501-00-00

$366.77

20

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

21

STEERING KNUCKLE ASSY (RIGHT)

8HK-23502-00-00

$373.09

22

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

23

FRONT LOWER ARM COMP. (LEFT)

8HK-23570-00-P0

Unavailable

24

BUSH, SOLID

90381-18N51-00

$9.77

25

BALL JOINT 2

8GK-23579-01-00

$133.02

26

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

27

FRONT LOWER ARM COMP. (RIGHT) (SILVER 8)

8HK-23580-00-P0

Unavailable

28

BUSH, SOLID

90381-18N51-00

$9.77

29

BALL JOINT 2

8GK-23579-01-00

$133.02

30

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

31

COLLAR

90387-10065-00

$18.89

32

BOLT, FLANGE

90105-10211-00

$5.97

33

NUT, S/L FLANGE

95602-10200-00

$2.29

34

BOLT, FLANGE

90105-10318-00

$8.71

35

WASHER, PLATE

90201-10052-00

$6.28

36

NUT, S/L FLANGE

95602-10200-00

$2.29

37

FRONT UPPER ARM COMP. (LEFT)

8HK-23540-10-P0

$281.29

38

BALL JOINT 1

8GK-23549-00-00

$148.63

39

NUT, U FLANGE

95602-14200-00

$9.89

40

BUSH, SOLID

90381-18N51-00

$9.77

41

FRONT UPPER ARM COMP. (RIGHT)

8HK-23550-10-P0

$287.17

42

BALL JOINT 1

8GK-23549-00-00

$148.63

43

NUT, U FLANGE

95602-14200-00

$9.89

44

BUSH, SOLID

90381-18N51-00

$9.77

45

COLLAR 1

8HK-23373-00-00

$66.52

46

BOLT, FLANGE

90105-10213-00

$15.49

47

BOLT

91312-10045-00

$4.04

48

WASHER, PLATE

90201-10052-00

$6.28

49

NUT, S/L FLANGE

95602-10200-00

$2.29

50

ABSORBER ASSY 1

8GL-2376A-00-00

Unavailable

51

DAMPER, BUSH B

8FA-2331R-00-00

$10.38

52

BUSH, BIMETAL FORMED

90384-15N51-00

$6.37

53

LABEL, WARNING

4AA-22259-60-00

$6.02

54

ABSORBER ASSY 1

8HB-2376A-00-00

Unavailable

55

LABEL,WARNING

8GT-F2259-00-00

Unavailable

56

FOX AIR PUMP

8FP-23703-FS-00

Unavailable

57

BOLT, FLANGE

90105-10122-00

$9.00

58

BOLT, FLANGE

90105-10209-00

$6.82

59

COLLAR

90387-10N59-00

$12.34

60

NUT, S/L FLANGE

95602-10200-00

$2.29

61

BAR, STABILIZER FRONT

8GN-2386E-10-00

$254.17

62

HOLDER, STABILIZER FRONT

8GL-2386C-00-00

$29.85

63

BUSH, STABILIZER FRONT

8GN-2386G-10-00

$8.23

64

BOLT, BUTTON HEAD

92012-08030-00

$5.66

65

BOLT, BUTTON HEAD

92012-08016-00

$6.98

66

JOINT, STABILIZER 1

8GN-2385L-10-00

$92.25

67

BOLT(6TA)

97017-10035-00

$5.80

68

NUT, S/L FLANGE

95602-10200-00

$2.29

69

BOLT, FLANGE

95817-08040-00

$5.43

70

NUT, SELF-LOCKING

95602-08200-00

$2.77

71

BUSH

8HR-2376B-09-00

$33.20

72

BUSH

8HR-2376B-19-00

$31.67
