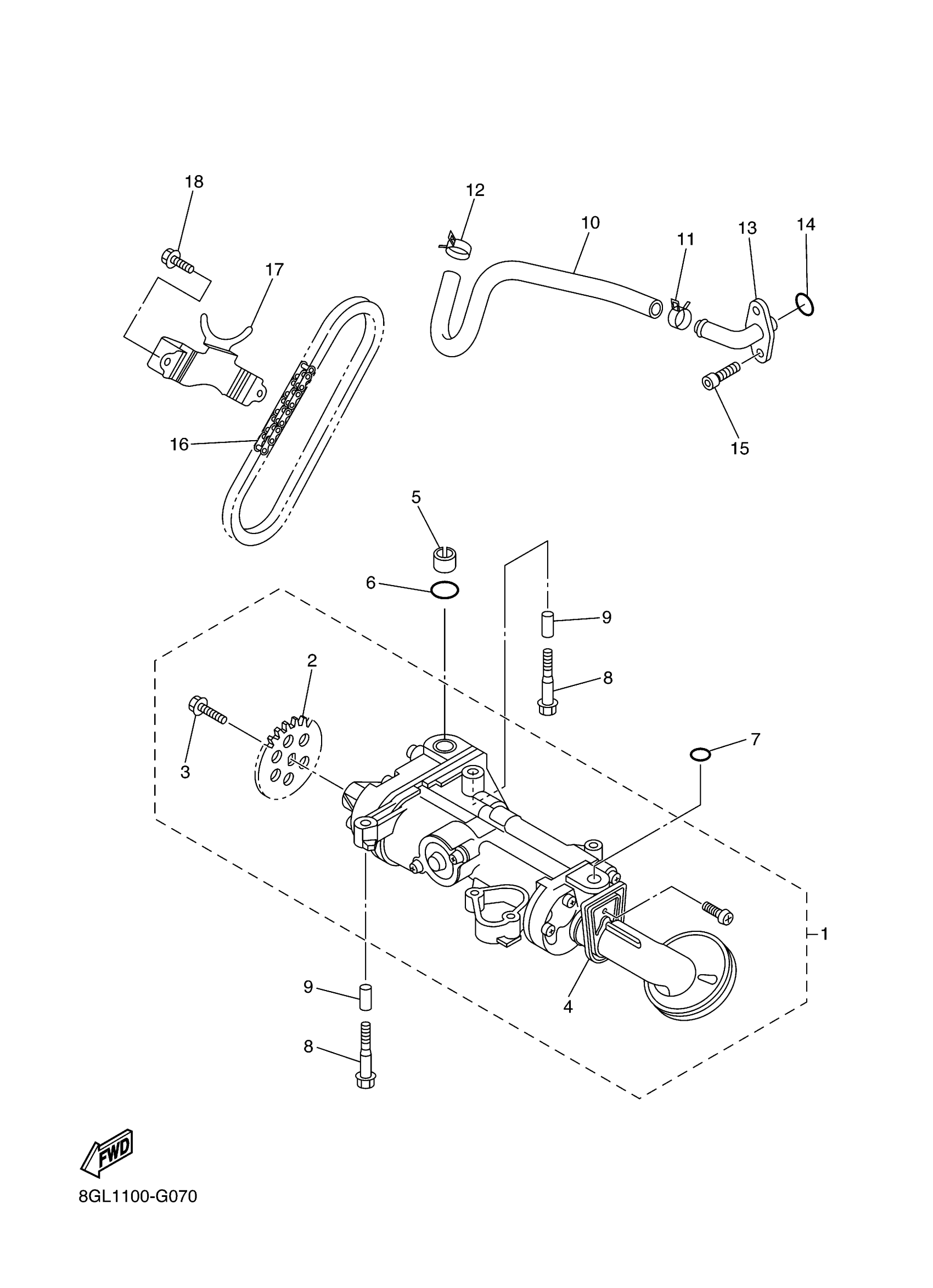

Yamaha FX10YW (FX NYTRO) 8GL30 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8GL-13300-00-00

$484.11

2

SPROCKET, DRIVEN

4XV-13355-00-00

Unavailable

3

BOLT, FLANGE

90105-06066-00

$6.31

4

SPACER, STRAINER

8ES-13427-00-00

$14.55

5

PIPE

8ES-13284-00-00

$3.49

6

O-RING (1L9)

93210-18322-00

$4.77

7

O-RING (26H)

93210-14579-00

$5.69

8

BOLT, FLANGE

95817-06040-00

$4.54

9

PIN, DOWEL(8AH)

91808-22019-00

$6.86

10

HOSE, OIL 1

8GL-13464-00-00

$31.97

11

CLIP(34X)

90467-22097-00

$7.14

12

CLIP(34X)

90467-22097-00

$7.14

13

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$39.06

14

O-RING (26H)

93210-16629-00

$5.86

15

BOLT,SOCKET

91317-06016-00

$1.16

16

CHAIN

94580-25064-00

$9.89

17

HOLDER

8ES-13898-01-00

$25.38

18

BOLT, FLANGE

95817-06012-00

$1.49
