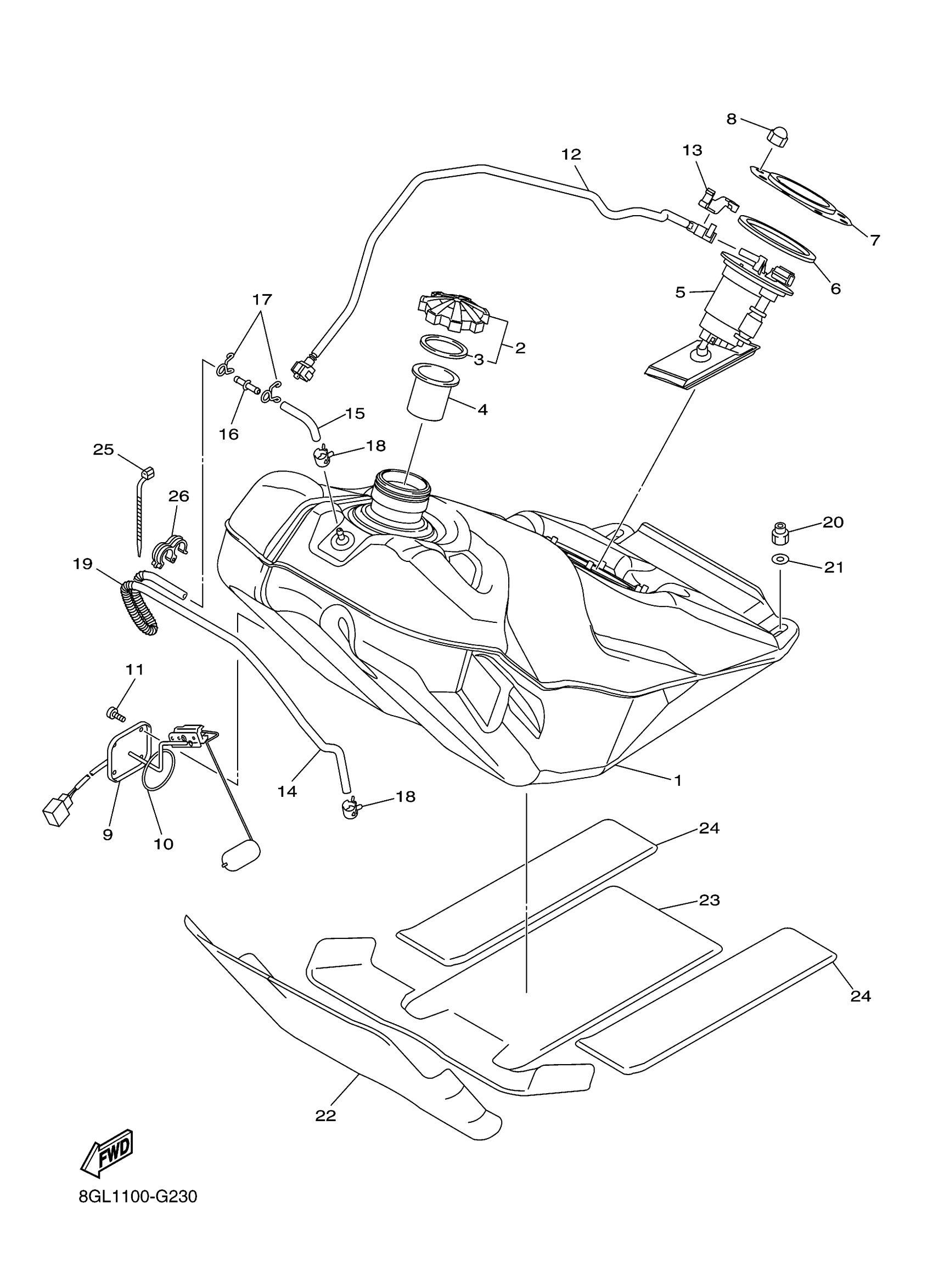

Yamaha FX10YW (FX NYTRO) 8GL30 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8GL-24111-00-00

Unavailable

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FP-24114-00-00

$4.98

5

FUEL PUMP COMP.

8GL-13907-04-00

Unavailable

6

O-RING

8FP-24486-00-00

$17.26

7

BRACKET, FUEL PUMP

8FP-24491-00-00

$15.88

8

NUT (J17)

95380-06800-00

$6.74

9

SENDER UNIT ASSY, FUEL METER

8HK-85752-00-00

$86.02

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

PIPE, FUEL 1

8GL-24311-01-00

Unavailable

13

CLAMP

90464-14004-00

$5.40

14

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$23.43

15

PIPE, JOINT

8FR-24461-00-00

$3.11

16

PIPE, JOINT

8H8-24376-00-00

$4.29

17

CLIP (8L2)

90467-08017-00

$7.51

18

CLIP (8A1)

90467-09026-00

$2.72

19

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

20

NUT, NYLON

95717-08300-00

$2.57

21

WASHER, PLATE (3L7)

90201-08784-00

$2.54

22

INSULATOR, FUEL TANK 1

8GL-2416F-01-00

$74.82

23

PROTECTOR, FUEL TANK

8GL-24141-01-00

$66.14

24

PROTECTOR, FUEL TANK

8GL-24141-10-00

$24.86

25

CLAMP(4FM)

90464-15195-00

$2.77

26

CLAMP(4HM)

90464-13194-00

$1.46
