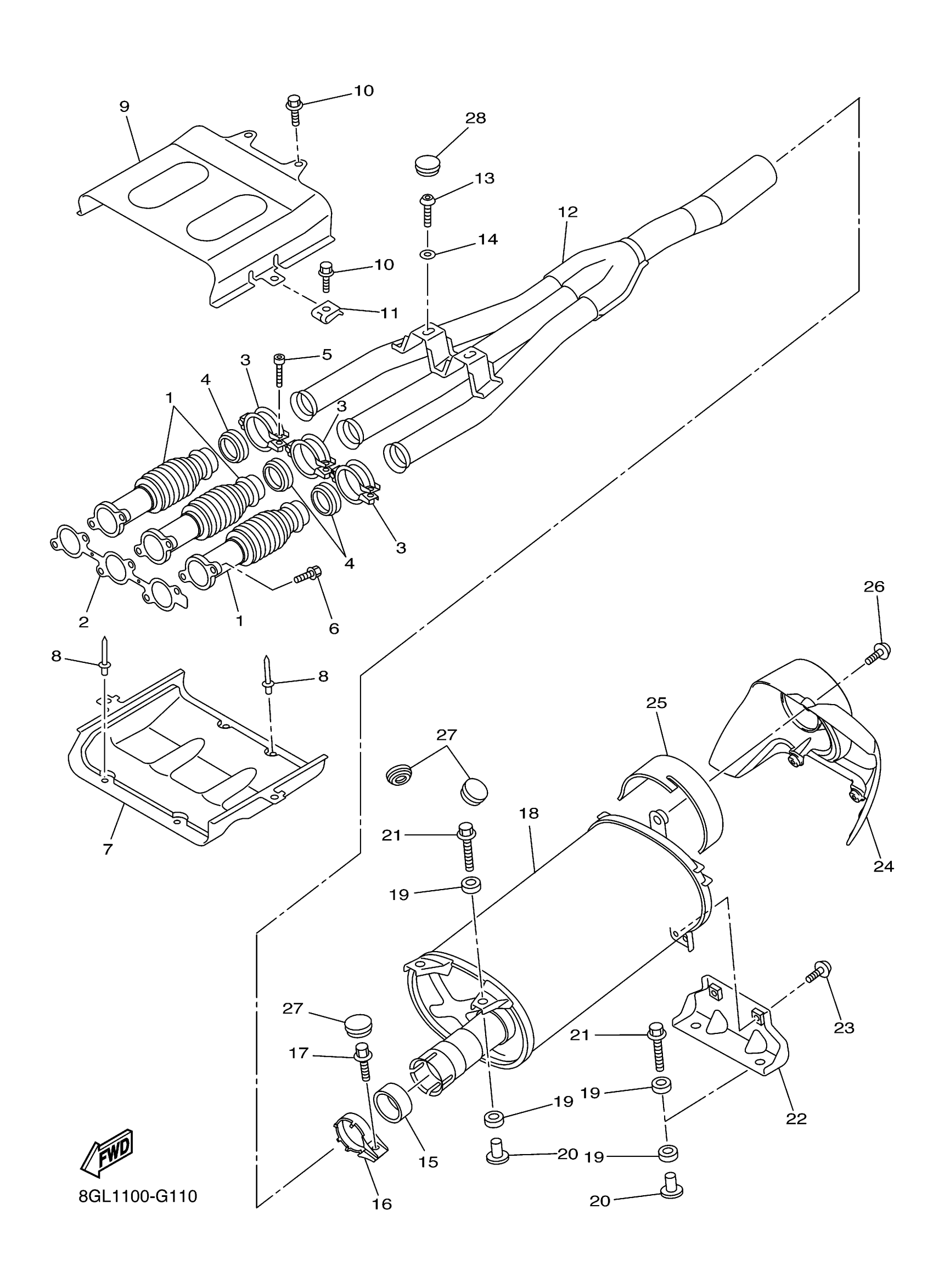

Yamaha FX10YW (FX NYTRO) 8GL30 2009 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

8GL-14615-00-00

$155.22

2

GASKET, EXHAUST PIPE

8GL-14613-00-00

$18.52

3

BAND, MUFFLER

8FA-14715-00-00

$32.47

4

GASKET, EXHAUST PIPE

99999-03989-00

$26.83

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

6

BOLT, FLANGE

95022-08020-00

$6.78

7

COVER, EXHAUST

8GL-14627-00-00

$141.94

8

RIVET, BLIND

90267-47195-00

$3.33

9

EXHAUST COVER ASS'Y

8GL-14637-00-00

$164.68

10

BOLT, FLANGE

95817-06010-00

$3.91

11

NUT, SPRING

90183-060A0-00

$6.08

12

EXHAUST PIPE ASSY 1

8GL-14610-11-00

$524.22

13

BOLT, BUTTON HEAD

92012-08025-00

$5.75

14

WASHER, PLAIN

92990-08200-00

$2.56

15

GASKET, MUFFLER

8GL-14714-00-00

$32.33

16

BAND, SILENCER

8GL-14789-00-00

$25.62

17

BOLT, FLANGE

95812-08020-00

$1.69

18

SILENCER ASSY

8GL-14750-00-00

$730.99

19

DAMPER, MUFFLER

8GL-14737-00-00

$6.38

20

COLLAR

90387-08071-00

$8.11

21

BOLT, WITH WASHER

90119-08112-00

$7.48

22

BRACKET

8GL-14744-00-00

$46.86

23

BOLT, BUTTON HEAD

92012-08012-00

$6.37

24

CAP

8GL-14799-00-00

$42.92

25

PROTECTOR, MUFFLER 1

8GL-14718-00-00

$10.63

26

SCREW, WITH WASHER

90159-06005-00

$6.68

27

PLUG

90338-20004-00

$5.40

28

PLUG

90338-20007-00

$2.75
