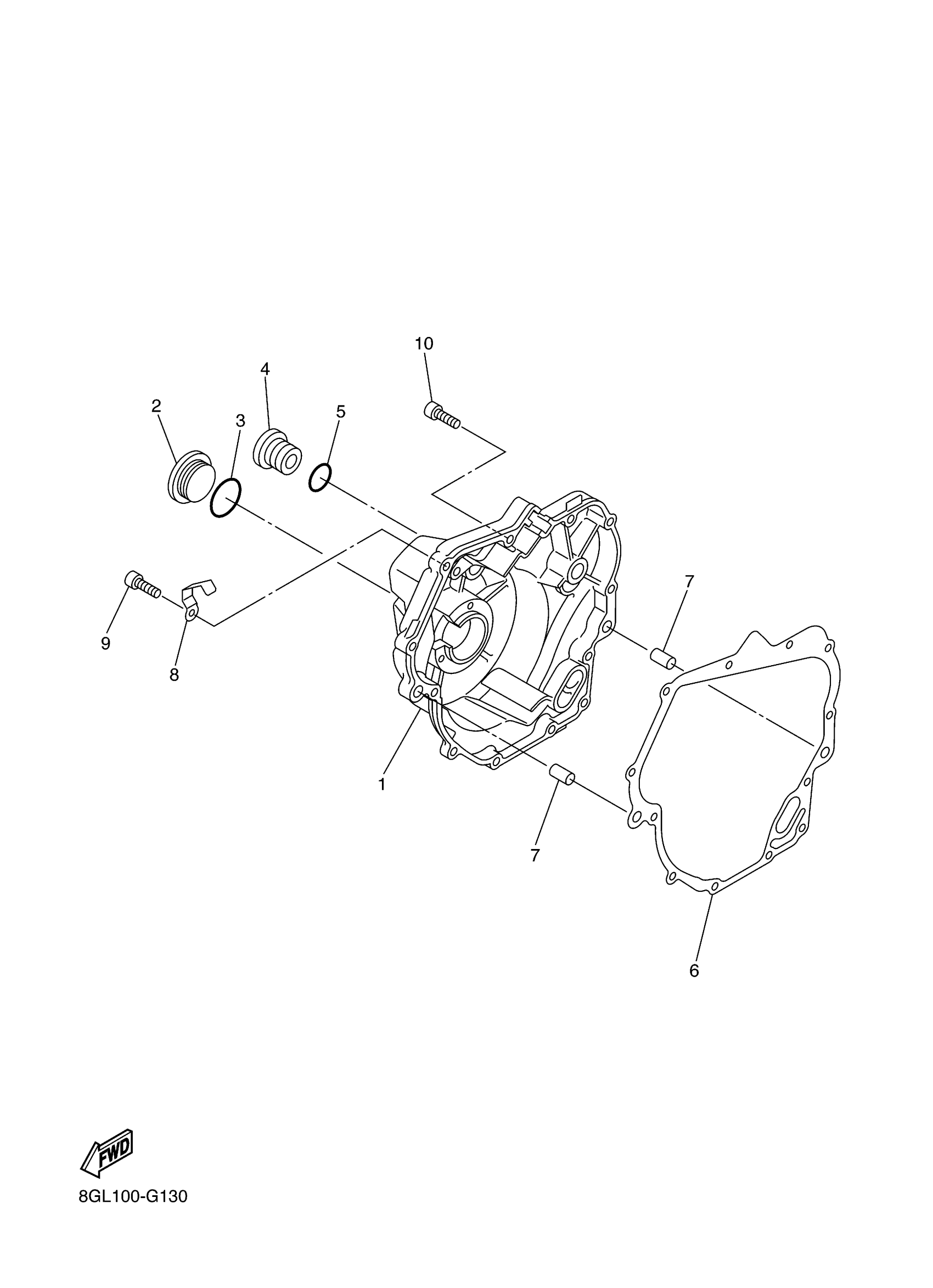

Yamaha FX10YW (FX NYTRO) 8GL30 2009 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 2

8GL-15421-00-00

$207.29

2

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$26.28

3

O-RING (341)

93210-32172-00

$5.78

4

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$11.62

5

O-RING (2H9)

93210-14369-00

$5.80

6

GASKET, CRANKCASE COVER 2

8ES-15461-01-00

$23.40

7

PIN, DOWEL

99530-08012-00

$6.62

8

CLAMP(4AJ)

90462-08225-00

$7.46

9

BOLT

90109-06015-00

$4.00

10

BOLT, HEXAGON SOCKET HEAD

90110-06263-00

$5.25
