- FX10XW (FX NYTRO) 8GL10 2008
ELECTRICAL 1

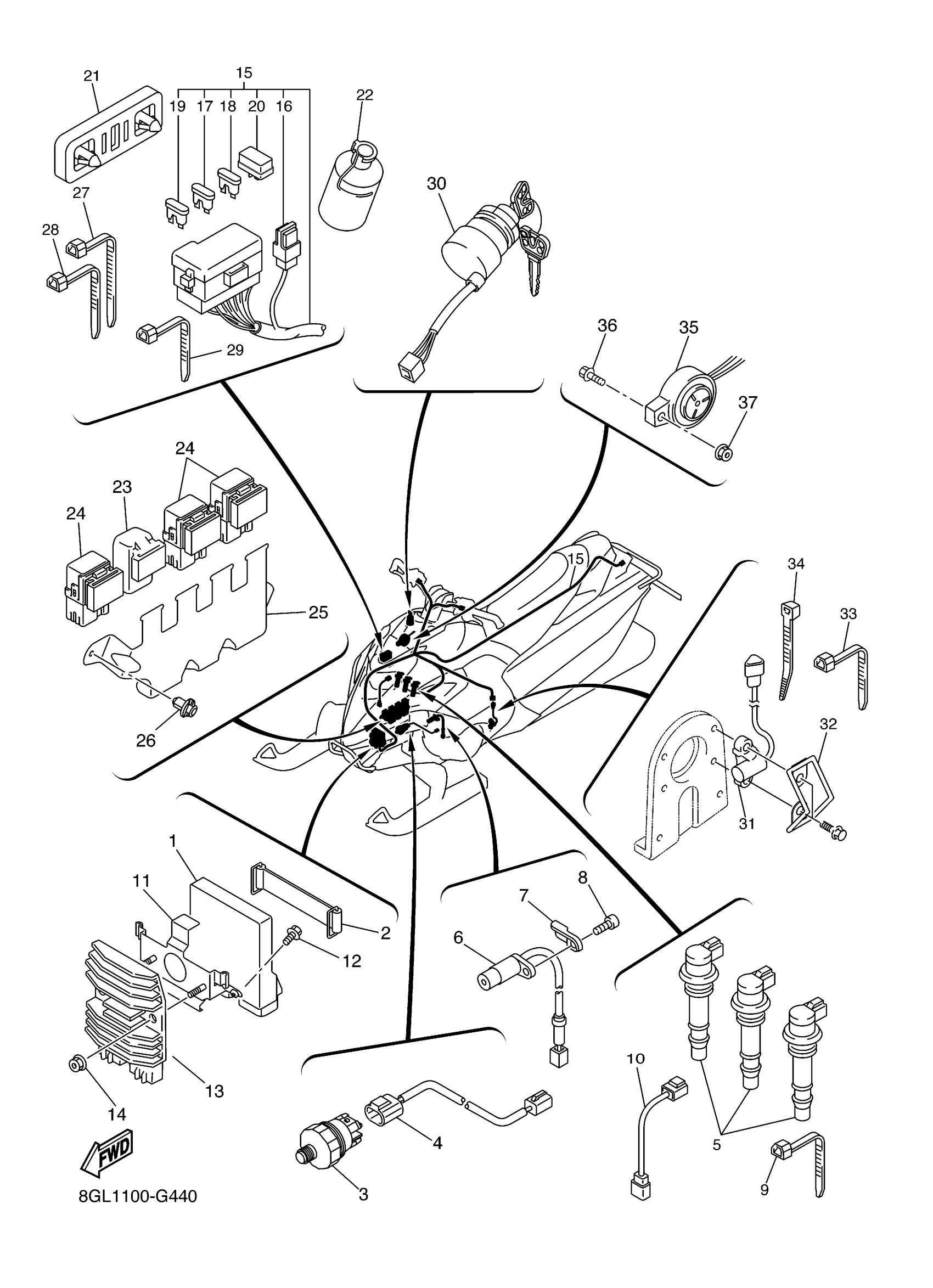

Yamaha FX10XW (FX NYTRO) 8GL10 2008 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8GL-8591A-00-00
Unavailable
2
BAND, BATTERY
2T4-82131-00-00
$8.99
3
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
4
WIRE, SUB-LEAD
8GL-82318-00-00
$26.99
5
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
6
PICK-UP ASSY
8GL-81670-01-00
$140.99
7
PLATE
5VY-15589-02-00
$4.99
8
BOLT,SOCKET
91317-06016-00
$1.25
9
CLAMP(4FM)
90464-15195-00
$4.41
10
LEAD WIRE ASSY
8GL-81515-00-00
Unavailable
11
BRACKET, UNIT
8GL-85991-00-00
$23.99
12
BOLT, FLANGE
95022-06010-00
$5.60
13
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
14
NUT, U FLANGE
95604-06200-00
$8.49
15
WIRE HARNESS ASSY
8GL-82590-00-00
Unavailable
16
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
17
. FUSE (10A)
67F-82151-40-00
Unavailable
18
FUSE
5JJ-82151-20-00
Unavailable
19
. FUSE (3A)
67F-82151-30-00
Unavailable
20
DIODE ASSY
4WA-81980-00-00
Unavailable
21
BRACKET
8FA-83614-00-00
Unavailable
22
COVER
8GL-8252U-00-00
Unavailable
23
RELAY ASSY
5DM-81950-01-00
Unavailable
24
RELAY ASSY (8FP-01)
8FP-81950-01-00
Unavailable
25
HOLDER, RELAY
8GL-81952-00-00
Unavailable
26
RIVET
90269-08006-00
Unavailable
27
CLAMP(4FM)
90464-15195-00
$4.41
28
CLAMP(4FM)
90464-15195-00
$4.41
29
CLAMP
90464-13077-00
Unavailable
30
MAIN SWITCH ASSY
8GL-82510-00-00
Unavailable
31
SENSOR, SPEED
8GL-83755-00-00
Unavailable
32
COVER 2
8GC-2198G-00-00
Unavailable
33
CLAMP(4FM)
90464-15195-00
$4.41
34
CLAMP(3XW)
90464-35132-00
Unavailable
35
BUZZER
8GL-83383-00-00
Unavailable
36
BOLT(3JK)
97027-05020-00
Unavailable
37
NUT, FLANGE
95702-05500-00
Unavailable
