- FX10XTZW (FX NYTRO XTX) 8HL30 2010
TRACK SUSPENSION 2

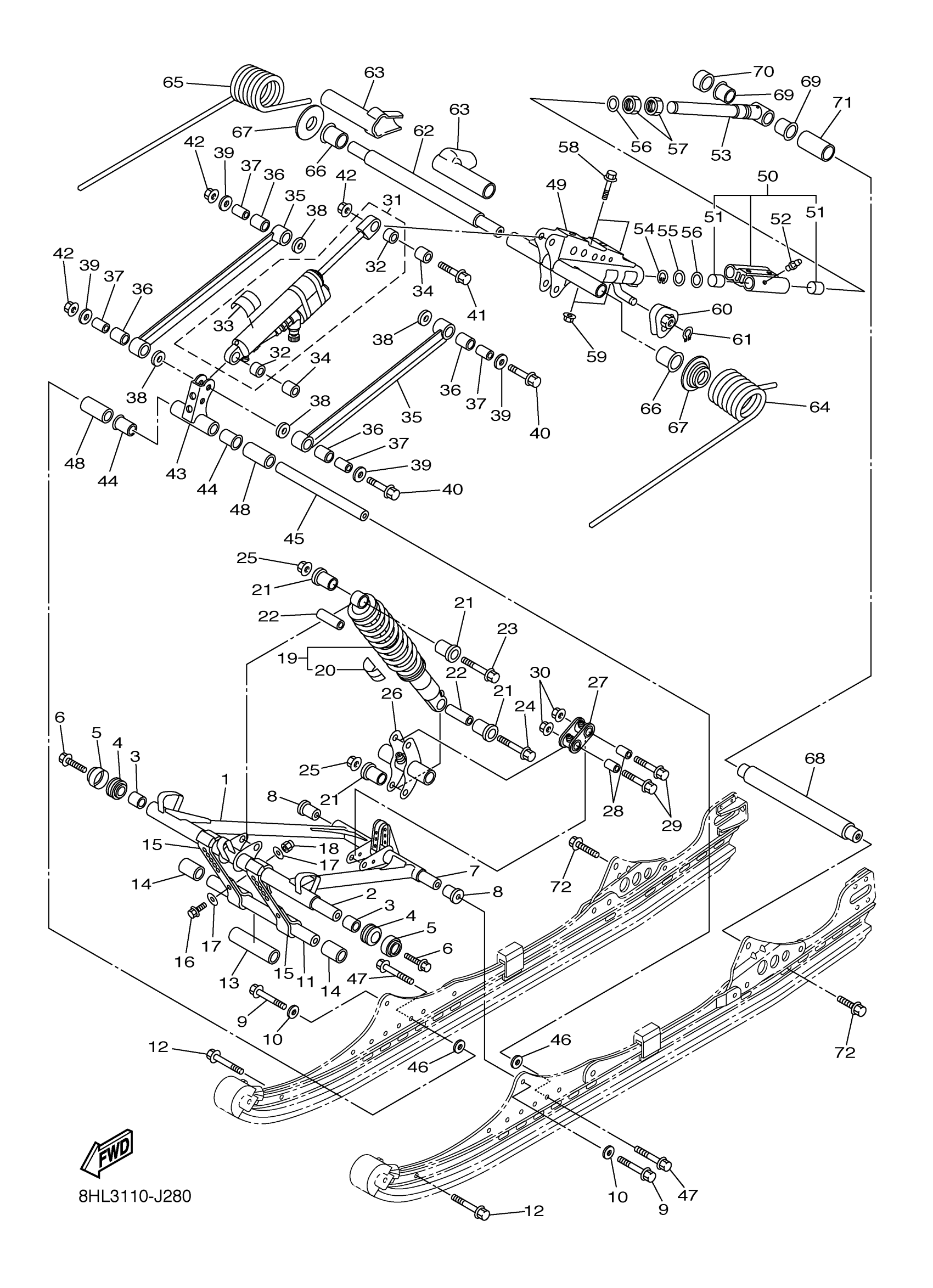

Yamaha FX10XTZW (FX NYTRO XTX) 8HL30 2010 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8HL-47331-00-00
Unavailable
2
SHAFT 1
8HL-47465-00-00
Unavailable
3
BUSH, FORMED
90383-23001-00
$60.99
4
OIL SEAL(37F)
93108-37011-00
$7.49
5
SPACER
8HF-47341-00-00
$25.99
6
BOLT
90109-10032-00
$8.49
7
SHAFT 4
8ES-47486-00-00
$40.99
8
COLLAR
90387-10022-00
$18.99
9
BOLT, FLANGE
90105-10209-00
$8.49
10
WASHER, PLATE
90201-10064-00
$7.49
11
SHAFT 3
8ES-47485-00-00
$55.99
12
BOLT, FLANGE
90105-10209-00
$8.49
13
COLLAR
90387-19002-00
$7.49
14
COLLAR
90387-19001-00
$8.49
15
STOPPER 1
8HL-47495-00-00
$52.99
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
WASHER, PLATE
90201-06081-00
Unavailable
18
NUT, NYLON
95707-06300-00
Unavailable
19
SHOCK ABSORBER 2
8HL-47481-00-00
Unavailable
20
LABEL, WARNING
4AA-22259-60-00
Unavailable
21
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
22
COLLAR (8U7)
90387-105G5-00
Unavailable
23
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
24
BOLT(88R)
90101-10738-00
Unavailable
25
NUT, S/L FLANGE
95602-10200-00
Unavailable
26
BRACKET, ARM PIVOT
8ES-47349-01-00
Unavailable
27
BRACKET 2
8FK-47416-01-00
Unavailable
28
COLLAR
90387-10024-00
Unavailable
29
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
SHOCK ABSORBER
8HL-47480-01-00
Unavailable
32
BUSH, BIMETAL FORMED(39K)
90384-18190-00
Unavailable
33
LABEL, WARNING
4AA-22259-60-00
Unavailable
34
COLLAR
90387-10023-00
Unavailable
35
ROD, RELAY
8FK-47494-00-00
Unavailable
36
BUSH
90386-16001-00
Unavailable
37
COLLAR (8K4)
90387-101A1-00
Unavailable
38
WASHER, PLATE
90201-10046-00
Unavailable
39
WASHER, PLATE
90201-10043-00
Unavailable
40
95812-10090
95812-10090-00
Unavailable
41
BOLT, FLANGE
95812-10040-00
Unavailable
42
NUT, S/L FLANGE
95602-10200-00
Unavailable
43
BRACKET, ARM PIVOT
8HL-47349-00-00
Unavailable
44
BUSH
90386-20001-00
Unavailable
45
SHAFT 5
8HP-47487-00-00
Unavailable
46
WASHER, PLATE
90201-10043-00
Unavailable
47
BOLT, FLANGE
90105-10209-00
$8.49
48
COLLAR
90387-20032-00
Unavailable
49
ARM, PIVOT 2
8HF-47332-00-00
Unavailable
50
STOPPER, CONT. 1
8ES-4745D-00-00
Unavailable
51
BUSH, SOLID
90380-24001-00
Unavailable
52
NIPPLE, GREASE
93700-06M03-00
Unavailable
53
ROD, CONTROL 1
8HL-4745A-00-00
Unavailable
54
CIRCLIP
99009-24400-00
Unavailable
55
WASHER, PLATE
90201-24015-00
Unavailable
56
WASHER, PLATE
90202-25001-00
Unavailable
57
STOPPER, ADJUSTING NUT
8ES-48142-00-00
Unavailable
58
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
59
NUT, S/L FLANGE
95602-10200-00
Unavailable
60
HOOK 2
8ES-47447-00-00
Unavailable
61
CIRCLIP(13H)
99009-14400-00
Unavailable
62
SHAFT 2
8ES-47475-01-00
Unavailable
63
PROTECTOR
8HF-47445-00-00
Unavailable
64
SPRING, REAR 1
8HL-47473-00-00
Unavailable
65
SPRING, REAR 2
8HL-47474-00-00
Unavailable
66
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
67
PLATE, GUIDE
8ES-47467-00-00
Unavailable
68
SHAFT, PIVOT
8ES-47337-00-00
Unavailable
69
BUSH
90386-25001-00
Unavailable
70
COLLAR
90387-26002-00
Unavailable
71
COLLAR
90387-26003-00
Unavailable
72
BOLT, FLANGE
95817-10030-00
Unavailable
