- FX10XTZW (FX NYTRO XTX) 8HL30 2010
TRACK SUSPENSION 1

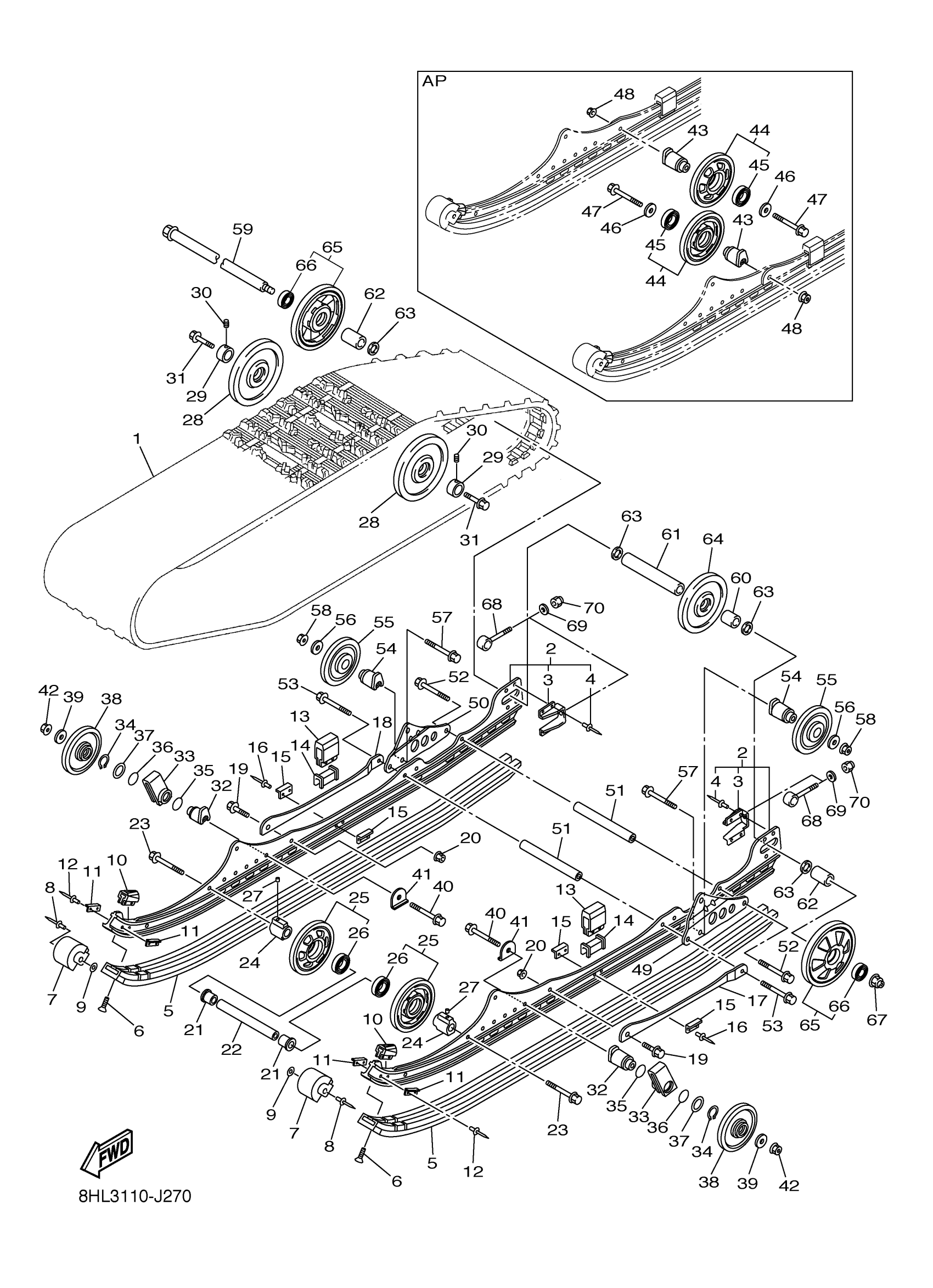

Yamaha FX10XTZW (FX NYTRO XTX) 8HL30 2010 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8ET-47110-11-00
Unavailable
2
FRAME, SLIDING
8HL-W4741-00-00
Unavailable
3
BRACKET
8DM-4741B-00-00
$45.99
4
RIVET
8V0-47468-00-00
$10.49
5
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8CM-47457-00-00
$16.49
14
SPACER
8HL-47341-00-00
$30.99
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
FRAME, SLIDING C
8HL-4741C-00-00
Unavailable
18
FRAME, SLIDING D
8HL-4741D-00-00
Unavailable
19
. BOLT, FLANGE
95812-10025-00
Unavailable
20
NUT, S/L FLANGE
95602-10200-00
Unavailable
21
BUSH
90386-20001-00
Unavailable
22
SHAFT 5
8GN-47487-00-00
Unavailable
23
BOLT, FLANGE
90105-10209-00
Unavailable
24
COLLAR
8ES-47319-01-00
Unavailable
25
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
26
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
27
BOLT, SET (8K2)
90113-06039-00
Unavailable
28
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
29
COLLAR 1
8ES-47365-00-00
Unavailable
30
BOLT, SET (8K2)
90113-06039-00
Unavailable
31
BOLT (8V0)
90109-10771-00
Unavailable
32
BRACKET 7
8ES-47419-10-00
Unavailable
33
HOOK 1
8ES-47446-00-00
Unavailable
34
CIRCLIP(6U2)
93410-35M10-00
Unavailable
35
O-RING (16G)
93210-35537-00
Unavailable
36
O-RING (21A)
93210-34633-00
Unavailable
37
WASHER, PLATE
90201-35013-00
Unavailable
38
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
39
WASHER, PLATE
90201-10038-00
Unavailable
40
BOLT, FLANGE
95812-10080-00
Unavailable
41
WASHER, CLAW
90214-10003-00
Unavailable
42
NUT, S/L FLANGE
95602-10200-00
Unavailable
43
BRACKET 7
8ES-47419-00-00
Unavailable
44
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
45
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
46
WASHER, PLATE
90201-10038-00
Unavailable
47
BOLT, FLANGE
90105-10150-00
Unavailable
48
NUT, S/L FLANGE
95602-10200-00
Unavailable
49
BRACKET 5
8HL-47463-00-00
Unavailable
50
BRACKET 6
8HL-47464-00-00
Unavailable
51
SHAFT 3
8HL-47485-00-00
Unavailable
52
BOLT, FLANGE
90105-08150-00
Unavailable
53
BOLT, FLANGE
90105-08229-00
Unavailable
54
BRACKET 7
8ES-47419-00-00
Unavailable
55
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
56
WASHER, PLATE
90201-10038-00
Unavailable
57
BOLT, FLANGE
90105-10233-00
Unavailable
58
NUT, S/L FLANGE
95602-10200-00
Unavailable
59
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
60
COLLAR
90387-20015-00
Unavailable
61
COLLAR
90387-20016-00
Unavailable
62
COLLAR
90387-20019-00
Unavailable
63
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
64
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
65
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
66
BEARING(8AB)
93306-00444-00
Unavailable
67
NUT, U FLANGE
95602-14200-00
Unavailable
68
COLLAR 3
8DM-47479-00-00
Unavailable
69
WASHER, PLATE
92990-10600-00
Unavailable
70
NUT, NYLON
95707-10300-00
Unavailable
