Description

Price

1

WATER PUMP ASSY

8ES-12420-02-00

$370.99

2

COVER, HOUSING

8ES-12422-00-00

Unavailable

3

GASKET, HOUSING COVER 1

8ES-12427-00-00

$17.49

4

SEAL, MECHANICAL

8ES-12438-00-00

$45.99

5

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

6

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$11.49

7

IMPELLER SHAFT ASSY

8ES-12450-01-00

$37.99

8

SCREW, PAN HEAD

98580-06016-00

Unavailable

9

GEAR, IMPELLER SHAFT

8ES-12459-01-00

Unavailable

10

PIN, DOWEL (409)

93604-16092-00

$3.18

11

CIRCLIP(2R6)

99001-08600-00

$8.49

12

GASKET

8ES-12435-00-00

$15.49

13

GASKET

8ES-12434-00-00

$4.63

14

PIN, DOWEL

99530-08012-00

Unavailable

15

TORNILLO ALLEN

91312-06040-00

$8.49

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

GEAR, DRIVE

8ES-12436-00-00

Unavailable

18

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

19

CIRCLIP(2FL)

93420-26077-00

Unavailable

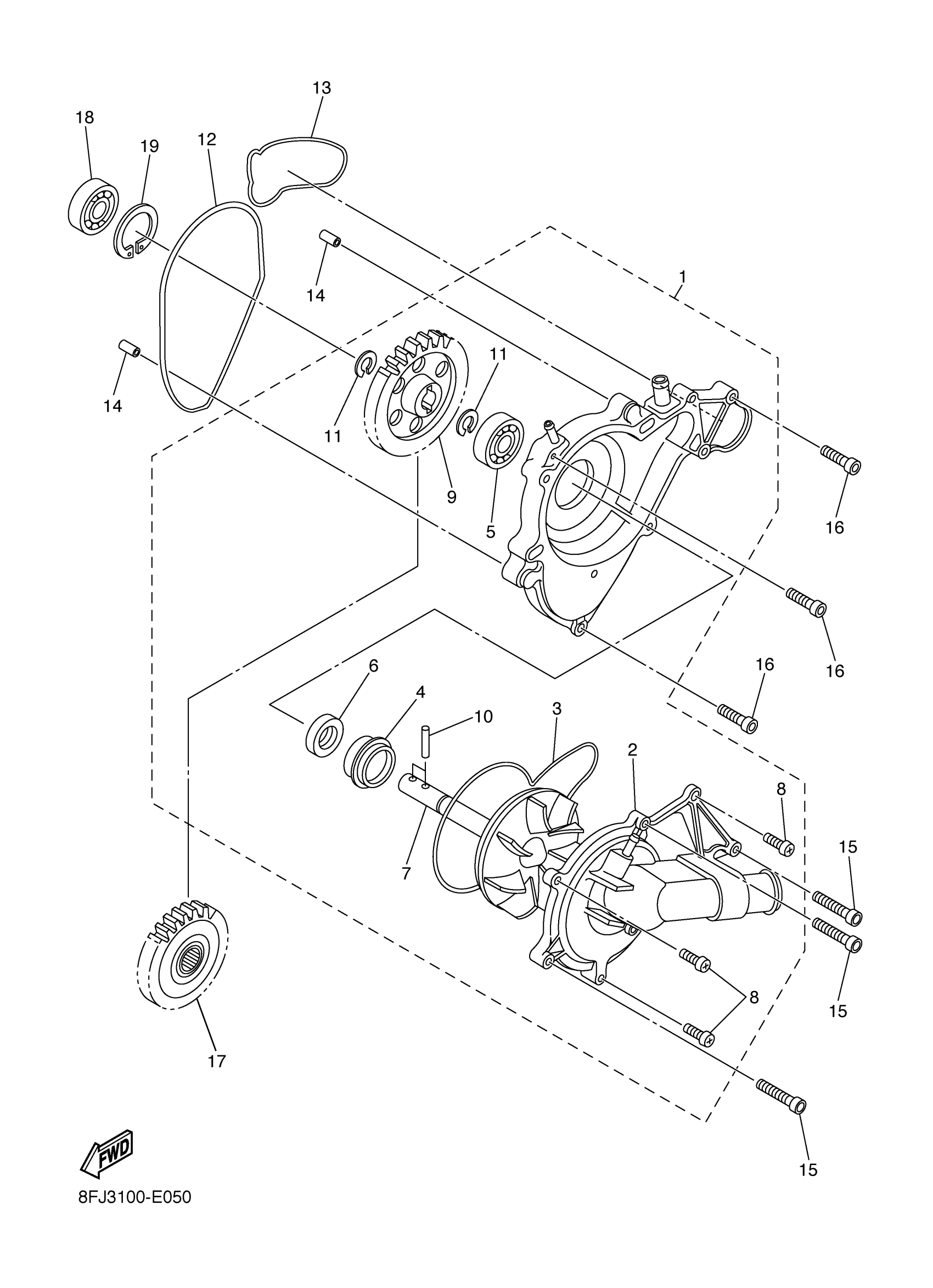

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 WATER PUMP Diagram

WATER PUMP ASSY

COVER, HOUSING

GASKET, HOUSING COVER 1

SEAL, MECHANICAL

BRG,R-B 6000 26MM 19G KY

SEAL,OIL(SD 10-21-5 HS,3Y1)

IMPELLER SHAFT ASSY

SCREW, PAN HEAD

GEAR, IMPELLER SHAFT

PIN, DOWEL (409)

CIRCLIP(2R6)

GASKET

GASKET

PIN, DOWEL

TORNILLO ALLEN

BOLT,SOCKET

GEAR, DRIVE

BRG,R-B 6000 26MM 19G KY

CIRCLIP(2FL)
