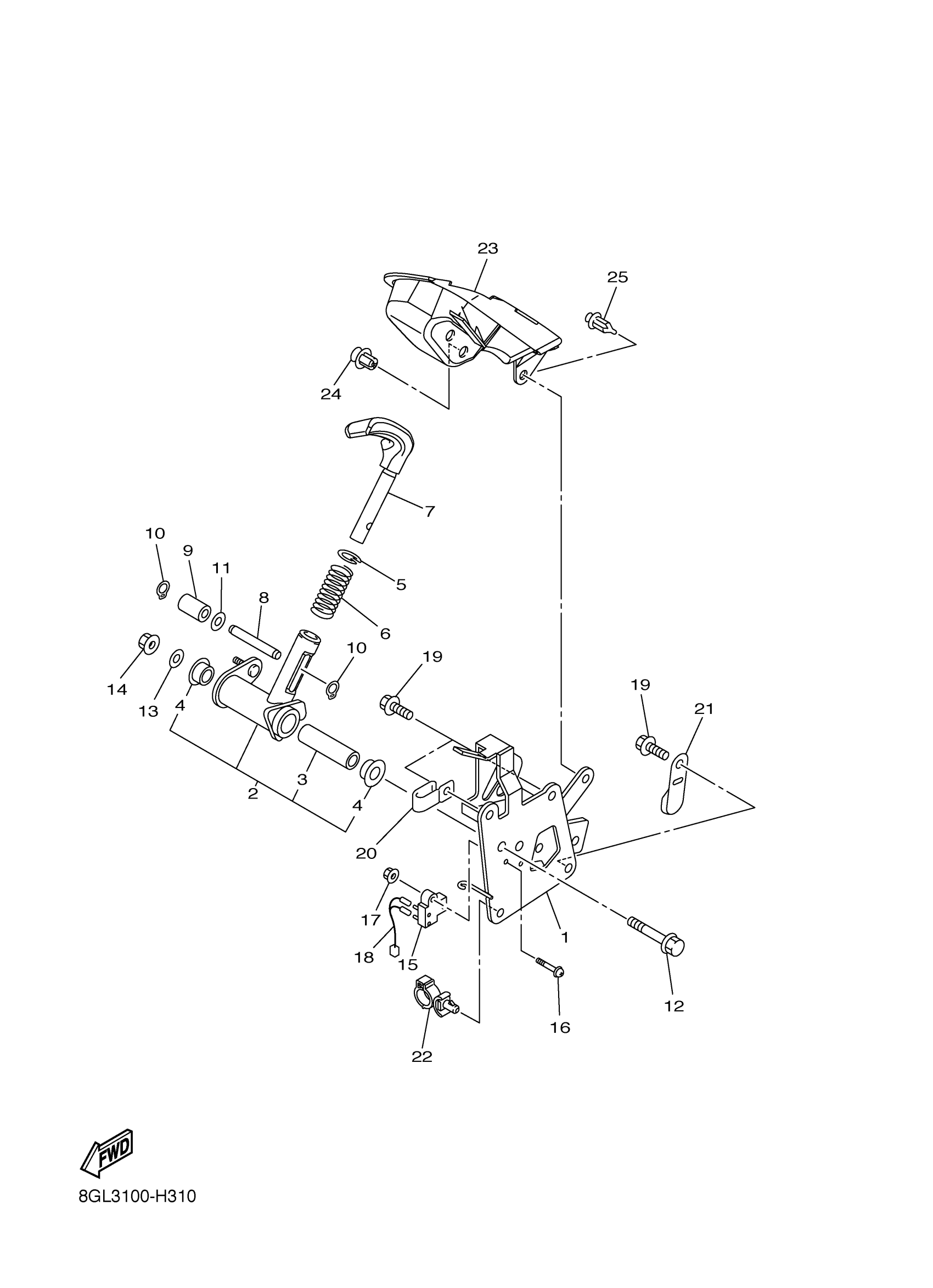

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 TRACK DRIVE 3 Diagram

#

Description
Price

1

GUIDE, PLATE STOPPER

8GL-18161-01-00

$73.55

2

ARM, SHIFT

8GL-18112-00-00

$125.51

3

SHAFT 6

8GL-47488-00-00

Unavailable

4

BUSH(J41)

90386-15139-00

$4.57

5

CIRCLIP(13H)

99009-18400-00

$6.68

6

SPRING, COMPRESSION

90501-130A2-00

$3.91

7

KNOB, SHIFT LEVER

8GL-18174-01-00

$65.48

8

PIN (8FA1)

90249-06002-00

$12.22

9

COLLAR (8FA1)

90387-06059-00

$26.74

10

CIRCLIP (J10)

93410-06053-00

$5.62

11

WASHER, PLATE (8U7)

90201-067F9-00

$2.78

12

BOLT, FLANGE(JN5)

95817-08070-00

$3.20

13

WASHER, PLATE

90201-08054-00

$6.29

14

NUT, SELF-LOCKING

95602-08200-00

$2.77

15

SWITCH

J51-82817-00-00

$121.26

16

SCREW, BINDING

98907-04020-00

$0.42

17

NUT, U (7LY)

95617-04100-00

$6.92

18

WIRE, LEAD

8GL-82541-00-00

$12.48

19

BOLT, FLANGE

95022-08016-00

$0.55

20

CLAMP

90462-10022-00

$5.58

21

CAP, BOLT

8GL-23469-00-00

Unavailable

22

CLAMP

90464-16011-00

$7.31

23

COVER

8GL-47716-00-00

$22.77

24

RIVET

90269-08006-00

$2.72

25

RIVET

90269-07012-00

$2.72
