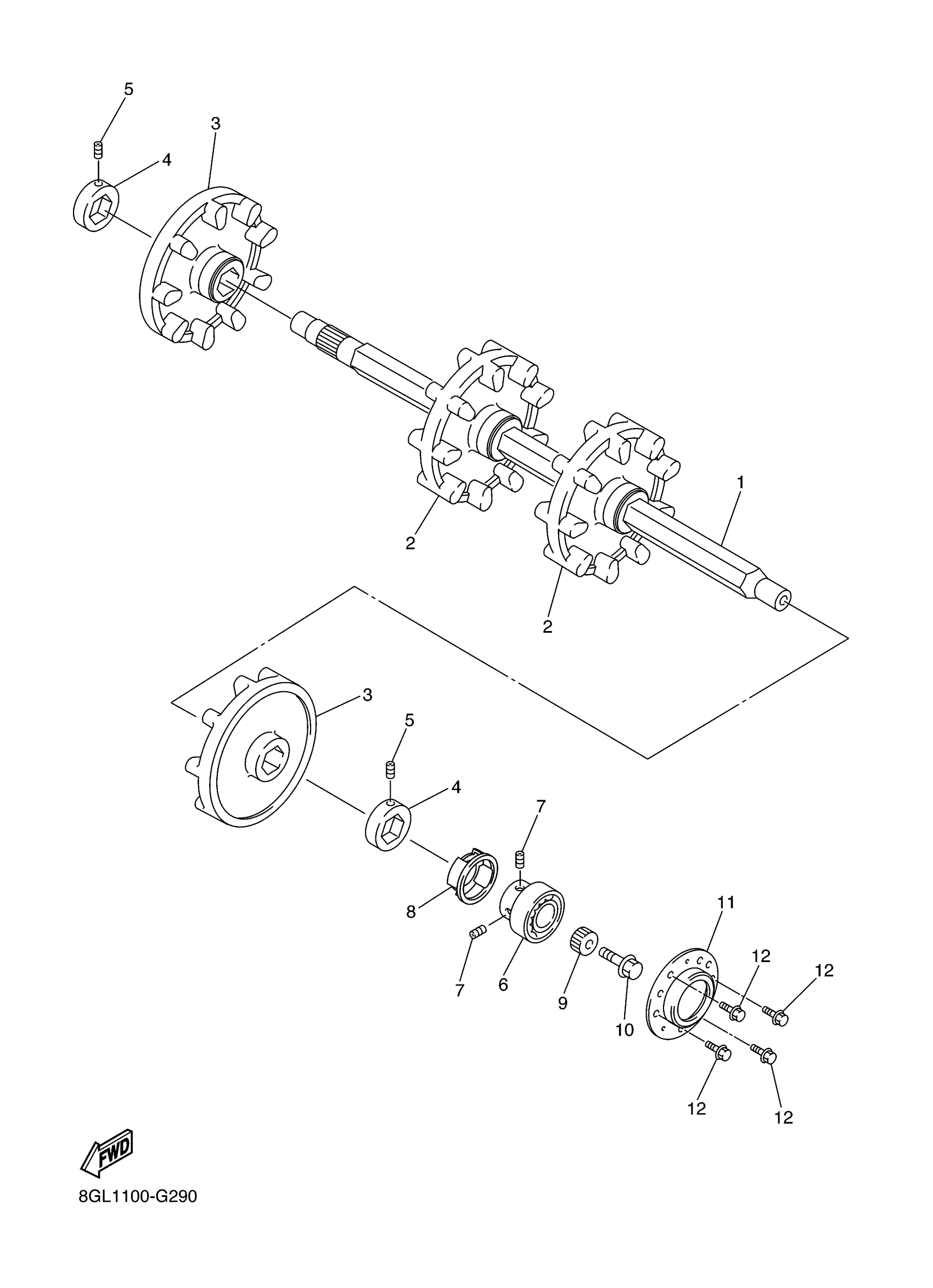

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8GL-47511-10-00

Unavailable

2

WHEEL, SPROCKET 1

8CM-47531-10-00

$139.82

3

WHEEL, SPROCKET 2

8BW-47532-10-00

$113.55

4

COLLAR

8BW-47526-00-00

$52.60

5

BOLT, SET (8K2)

90113-06039-00

$6.97

6

BEARING(8CJ)

93306-20589-00

$51.47

7

BOLT, SET

90113-06006-00

$3.60

8

CAP

8FN-47377-00-00

$21.63

9

JOINT

8EK-47715-00-00

$29.53

10

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

11

HOUSING, FRONT AXLE

8EK-47551-00-00

$8.97

12

BOLT, FLANGE(4LN)

95817-08025-00

$6.17
