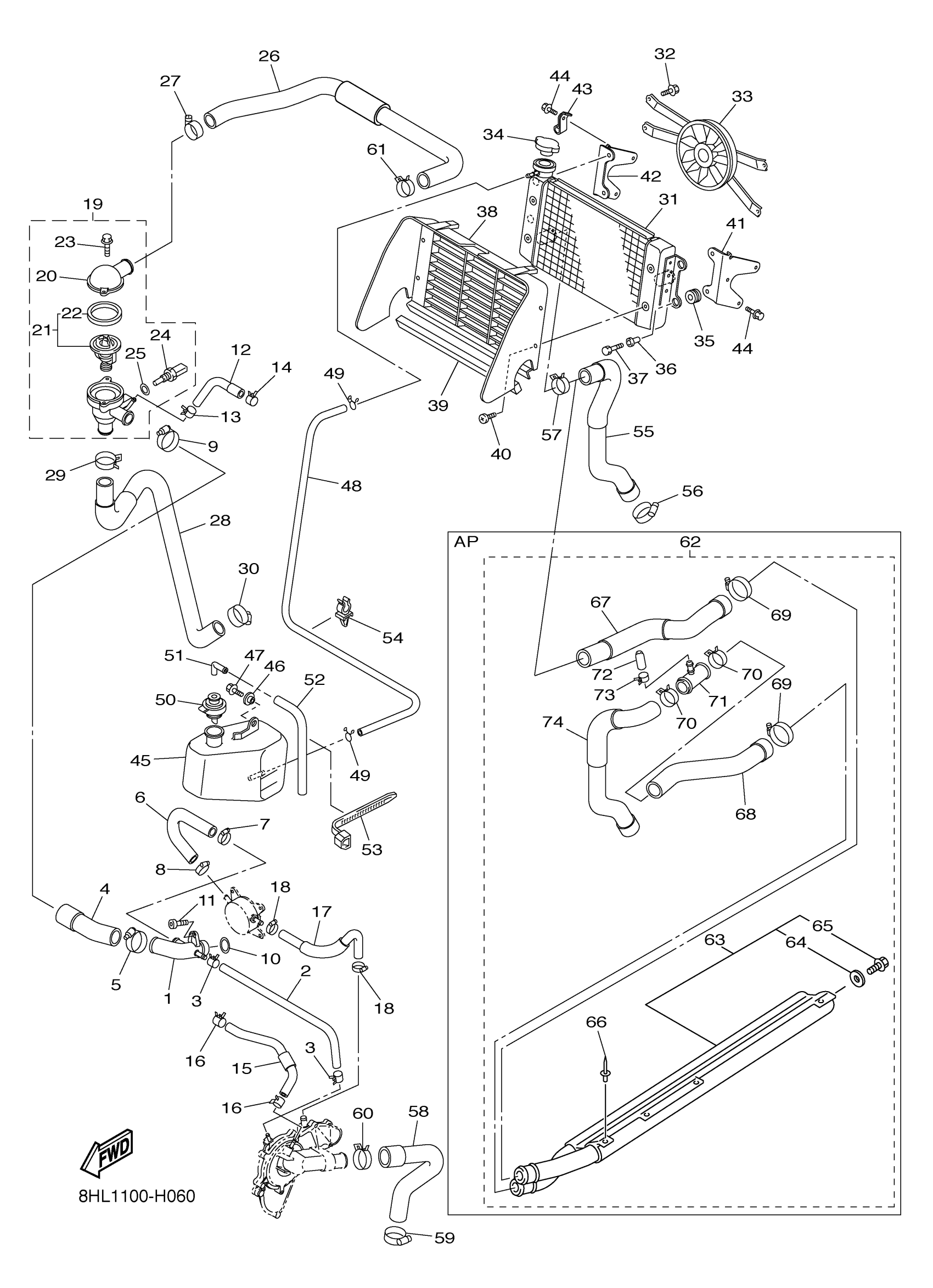

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8GL-12482-00-00

$47.32

2

PIPE 5

8GL-12485-00-00

$9.89

3

CLIP

90467-110A2-00

$6.69

4

HOSE 2

8GL-1243E-00-00

$9.83

5

HOSE CLAMP ASSY

90450-35001-00

$5.25

6

HOSE 6

8GL-12589-00-00

$9.75

7

HOSE CLAMP ASSY

90450-18M09-00

$11.49

8

HOSE CLAMP ASSY

90450-18M09-00

$11.49

9

HOSE CLAMP ASSY

90450-35001-00

$5.25

10

O-RING

93210-235A1-00

$5.75

11

BOLT(3MA)

91312-06016-00

$4.89

12

HOSE 2

8GL-12577-00-00

$4.71

13

CLIP

90467-110A2-00

$6.69

14

CLIP

90467-120A5-00

$6.25

15

HOSE 3

8GL-12578-00-00

$10.26

16

CLIP

90467-110A2-00

$6.69

17

HOSE 5

8ES-12588-00-00

$19.74

18

HOSE CLAMP ASSY

90450-18M09-00

$11.49

19

JOINT ASSY

8GL-12580-00-00

$198.34

20

COVER, THERMOSTAT

8FP-12413-00-00

$11.60

21

THERMOSTAT ASSY

8FP-12410-00-00

$95.82

22

SEAL, THERMOSTAT

8FP-12412-00-00

$4.80

23

BOLT, FLANGE

95022-06020-00

$3.32

24

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

25

WASHER, PLATE

90201-12790-00

$6.85

26

HOSE, 4

8GL-1244G-01-00

$30.37

27

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

28

PIPE 8

8GL-1248A-00-00

Unavailable

29

HOSE CLAMP ASSY

90450-35001-00

$5.25

30

CLIP (8M6)

90467-28046-00

$12.43

31

RADIATOR ASSY

8GL-12461-00-00

$379.57

32

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$6.68

33

BLOWER ASSY

8GL-12405-00-00

$284.46

34

CAP, RADIATOR

5SL-12462-01-00

Unavailable

35

GROMMET (29L)

90480-15363-00

$6.17

36

COLLAR 437216330000

90387-07391-00

$7.74

37

BOLT, HEXAGON

97017-06025-00

$2.98

38

DUCT

8GL-12661-00-00

$33.06

39

DAMPER, RADIATOR

8GL-12465-00-00

$4.86

40

SCREW (5G6)

90149-06165-00

$4.28

41

STAY, RADIATOR

8GL-12464-01-00

$24.72

42

STAY, RADIATOR

8GL-12464-11-00

$24.72

43

HOLDER, BRAKE HOSE

8GL-25886-00-00

Unavailable

44

BOLT, FLANGE

95817-06016-00

$1.49

45

TANK, RECOVERY

8GL-21871-00-00

Unavailable

46

COLLAR

90387-06071-00

$6.69

47

BOLT, FLANGE

95817-06016-00

$1.49

48

HOSE (L1500)

90445-090F6-00

$26.35

49

CLIP 101235600

90467-08003-00

$6.13

50

CAP

8GL-21875-00-00

$7.00

51

ELBOW

26H-21828-00-00

$21.94

52

HOSE (L180)

90445-094K7-00

$3.45

53

CLAMP(4FM)

90464-15195-00

$2.77

54

CLAMP

90464-09008-00

$3.30

55

HOSE 5

8GL-1244H-00-00

$44.69

56

HOSE CLAMP ASSY

90450-35001-00

$5.25

57

CLIP (8M6)

90467-28046-00

$12.43

58

HOSE 6

8GL-1244J-00-00

$26.77

59

HOSE CLAMP ASSY

90450-35001-00

$5.25

60

CLIP

90467-310A0-00

$4.20

61

CLIP (8M6)

90467-28046-00

$12.43

62

HEAT EXCHANGER KIT

8HA-124A0-00-00

Unavailable

63

HEAT EXCHANGER ASSY 4

8HA-1241A-00-00

$437.40

64

WASHER, SEAL (7G5)

90210-06006-00

$5.72

65

BOLT(3JP)

97017-06010-00

$2.62

66

RIVET, BLIND

90267-47195-00

$3.33

67

HOSE 5

8HA-1244H-00-00

$41.86

68

HOSE 7

8HA-12551-00-00

$37.80

69

HOSE CLAMP ASSY

90450-35001-00

$5.25

70

CLIP (8M6)

90467-28046-00

$12.43

71

PIPE 1

8HA-12481-00-00

Unavailable

72

PLUG, BLIND

16G-13569-00-00

$6.72

73

CLIP

90467-11028-00

$5.14

74

HOSE 8

8HA-12552-00-00

$52.48
