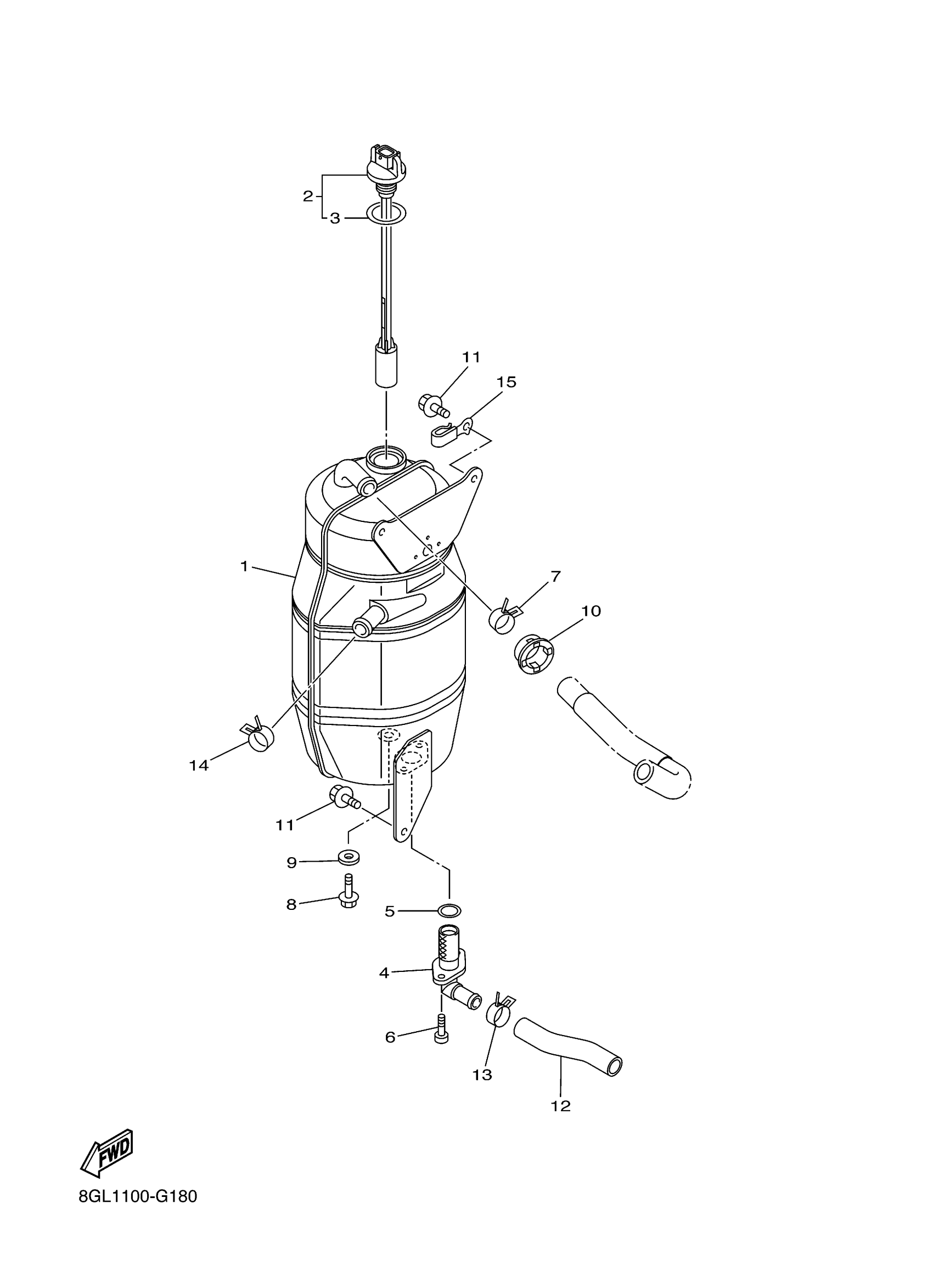

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8GL-21751-01-00

$575.99

2

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$54.92

3

O-RING

8FP-85075-00-00

$8.25

4

OIL PIPE COMP. 2

8GL-13406-00-00

$115.15

5

O-RING

93210-24001-00

$5.45

6

BOLT(3MA)

91312-06016-00

$4.89

7

CLIP(34X)

90467-22097-00

$7.14

8

BOLT, FLANGE

95817-08012-00

$3.98

9

GASKET(3AJ)

90430-08204-00

$6.36

10

GROMMET

90480-27001-00

$1.74

11

BOLT, FLANGE

95817-06016-00

$1.49

12

HOSE, OIL 2

8GL-13465-00-00

$7.40

13

CLIP(34X)

90467-22097-00

$7.14

14

CLIP(34X)

90467-22097-00

$7.14

15

CLAMP(4MX)

90465-06376-00

$7.08
