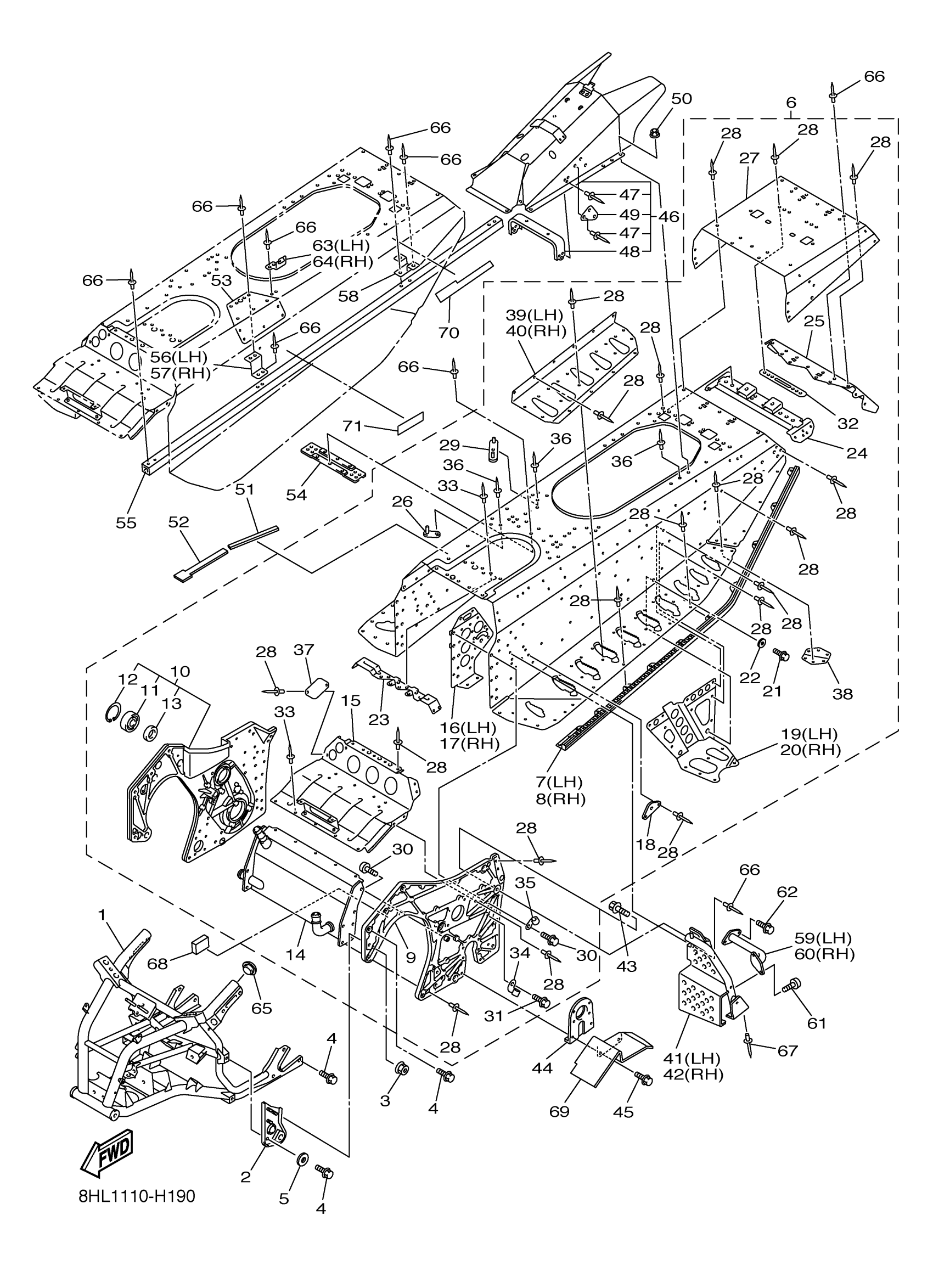

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 FRAME Diagram
#
1
FRONT FRAME COMP.
8GL-21940-03-00
Unavailable
2
BRACKET, ENGINE
8GL-2194E-00-00
$64.99
3
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
4
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
5
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
6
REAR FRAME COMP.
8HL-21950-01-00
Unavailable
7
REINFORCEMENT, FOOTREST 1
8HK-21926-00-00
Unavailable
8
REINFORCEMENT, FOOTREST 2
8HK-21936-00-00
$234.99
9
REINF., HOUSING 1
8GL-21925-00-00
$448.99
10
HOUSING, REINF SUB-ASSY(R.H)
8GL-21930-00-00
Unavailable
11
BEARING (5X5)
93306-20627-00
$75.99
12
CIRCLIP(MF1)
99009-62500-00
$8.49
13
OIL SEAL
93102-30012-00
$32.99
14
HEAT EXCHANGER ASSY
8GL-12440-00-00
Unavailable
15
PANEL, SUB FRAME 4
8GL-21915-00-00
$127.99
16
BRACKET, MAIN TRACK 1
8HL-21943-00-00
Unavailable
17
BRACKET, MAIN TRACK 2
8HL-21953-00-00
Unavailable
18
BRACKET, MAIN TRACK 3
8FU-21919-00-00
Unavailable
19
BRACKET, RR.TRACK SUSPENTION 1
8HL-21944-00-00
Unavailable
20
BRACKET, RR.TRACK SUSPENTION 2
8HL-21954-00-00
Unavailable
21
BOLT, FLANGE
95817-10020-00
Unavailable
22
WASHER, PLATE
90201-10035-00
Unavailable
23
PROTECTOR, MUFFLER
8GL-2194H-00-00
Unavailable
24
BRACKET 7
8GL-2197N-00-00
Unavailable
25
REINEFORCEMENT, FRAME REAR 1
8HL-21923-00-00
Unavailable
26
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
27
PANEL, SUB FRAME 6
8HL-21917-01-00
Unavailable
28
RIVET, BLIND
90267-47195-00
Unavailable
29
BRACKET 8
8GL-22512-00-00
Unavailable
30
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
31
BOLT, FLANGE
95022-08016-00
Unavailable
32
NUT
8GL-21295-00-00
Unavailable
33
RIVET, BLIND
90267-48010-00
Unavailable
34
CLAMP
90462-08061-00
Unavailable
35
CLAMP
90462-08064-00
Unavailable
36
RIVET, BLIND
90267-48023-00
Unavailable
37
PLATE, COVER
8GL-2131D-00-00
Unavailable
38
PATCH 1
8HK-21961-00-00
Unavailable
39
PATCH 3
8HK-21963-00-00
Unavailable
40
PATCH 4
8HK-21964-00-00
Unavailable
41
FOOTREST COMP. 1
8GL-21960-00-00
Unavailable
42
FOOTREST COMP. 2
8GL-21970-01-00
Unavailable
43
BOLT, FLANGE
95817-10030-00
Unavailable
44
HOUSING, REINF SUB-ASSY(L.H)
8GL-21920-00-00
Unavailable
45
BOLT, FLANGE
95812-08020-00
Unavailable
46
PANEL, SUB FRAME 5
8GL-21916-00-00
Unavailable
47
RIVET, BLIND
90267-47195-00
Unavailable
48
STAY, MUFFER
8GL-2194L-00-00
Unavailable
49
BRACKET, SEAT FITTING
8GL-21946-00-00
Unavailable
50
NUT, CROWN
90176-06016-00
Unavailable
51
SEAL, GUARD
8GL-22151-00-00
Unavailable
52
SEAL, GUARD
8GL-22152-00-00
Unavailable
53
PATCH 7
8GL-21967-00-00
Unavailable
54
PATCH 8
8GL-21988-00-00
Unavailable
55
PROTECTOR, FRAME
8HL-21978-00-00
Unavailable
56
BRACKET, 5
8GL-2196M-00-00
Unavailable
57
BRACKET, 6
8GL-2197M-00-00
Unavailable
58
BRACKET, PROTECTOR REAR
8GL-21443-00-00
Unavailable
59
BAR, FOOTREST 1
8GL-27471-00-00
Unavailable
60
BAR, FOOTREST 2
8GL-27472-00-00
Unavailable
61
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
62
BOLT, FLANGE
95817-06012-00
Unavailable
63
BRACKET, REAR FENDER 1
8GL-21151-00-00
Unavailable
64
BRACKET, REAR FENDER 2
8GL-21152-00-00
Unavailable
65
CAP, REAR ARM
180-22117-00-00
Unavailable
66
RIVET, BLIND
90267-47195-00
Unavailable
67
RIVET, BLIND
90267-48016-00
Unavailable
68
DAMPER
8GL-21852-00-00
Unavailable
69
PROTECTOR, FRAME
8GL-2197B-00-00
Unavailable
70
GRAPHIC 1
8GL-2199A-30-00
Unavailable
70
GRAPHIC 1
8GL-2199A-40-00
Unavailable
71
PLATE, EPA OFFROAD 2
8GL-2179D-10-00
Unavailable
