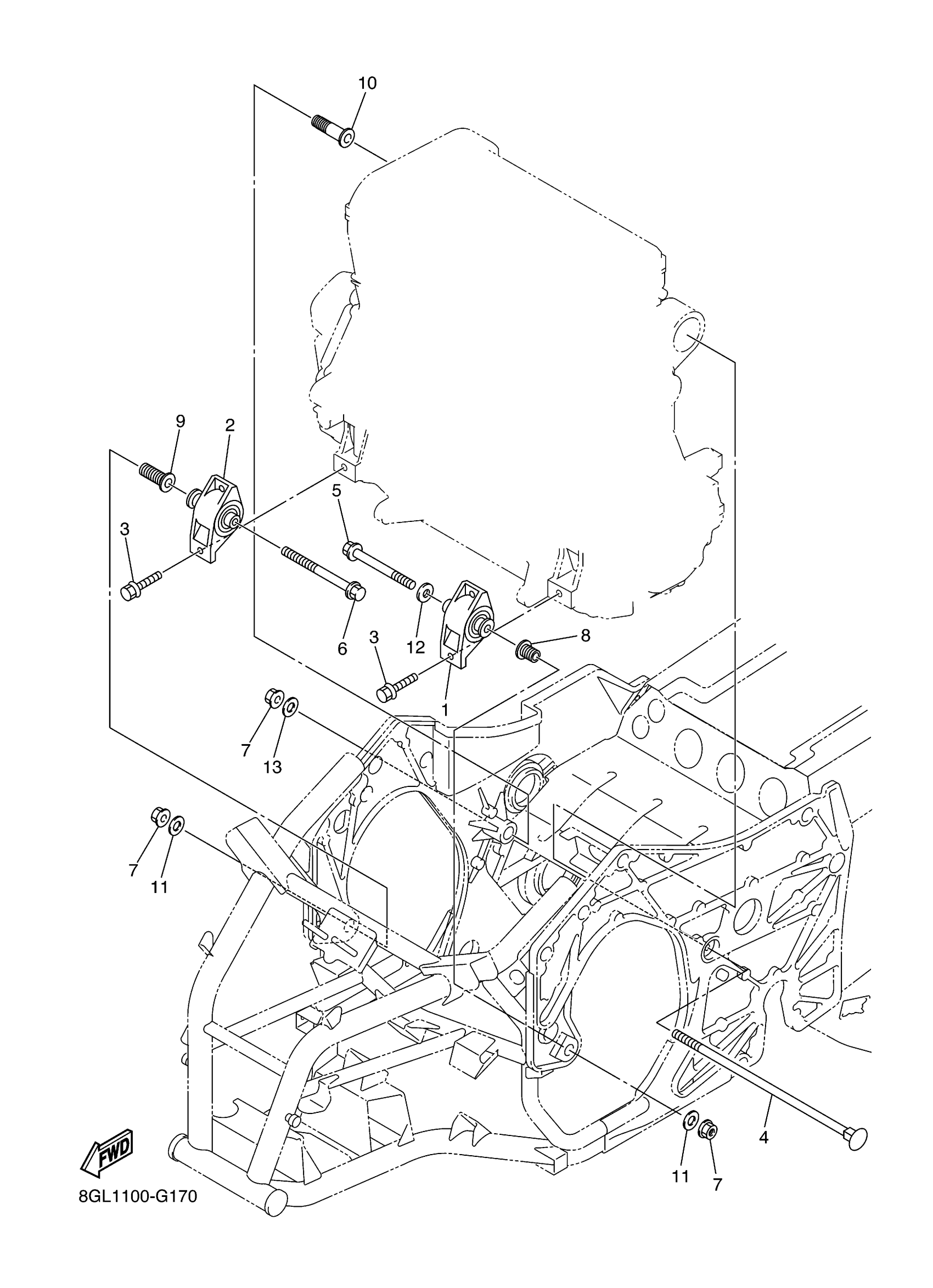

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 ENGINE BRACKET Diagram

#

Description
Price

1

ENGINE BRACKET COMP.

8ES-21410-00-00

$68.37

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

$67.03

3

BOLT, FLANGE

95812-08030-00

$3.25

4

BOLT, ENGINE MOUNT

8FA-21481-02-00

$51.09

5

BOLT, FLANGE

95817-12100-00

$3.02

6

BOLT, FLANGE

95812-12140-00

$10.31

7

Nut

90179-12004-00

$5.23

8

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

$24.86

9

BOLT, ENGINE ADJUSTING

8GL-21495-00-00

$48.88

10

BOLT

8ES-2149C-00-00

$32.60

11

WASHER, PLATE(8CJ)

90201-120T5-00

$4.91

12

WASHER (856)

90201-12317-00

$4.15

13

WASHER, PLATE (4N0)

90201-126A7-00

$6.28
