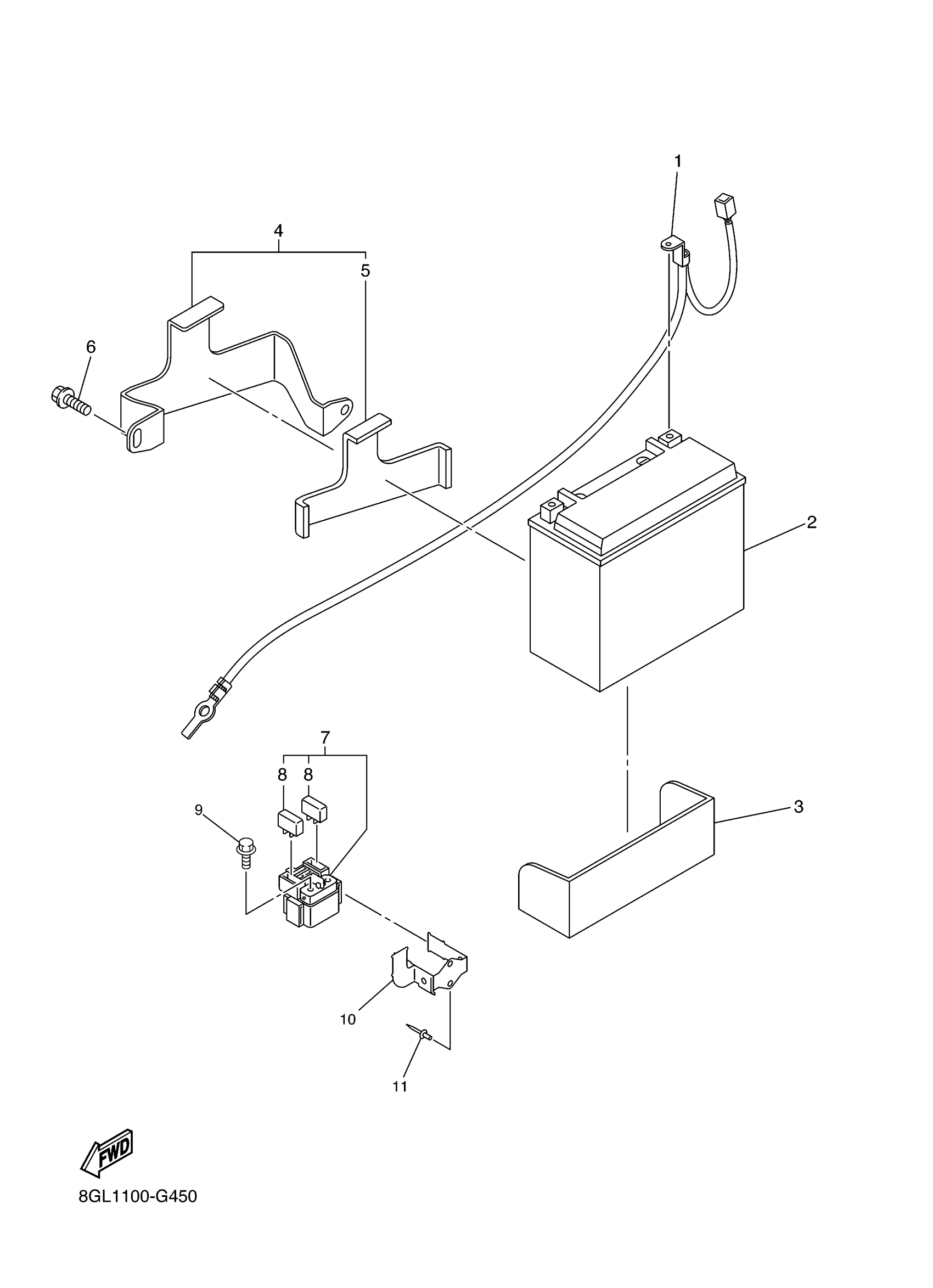

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

8GL-82116-00-00

Unavailable

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$160.64

3

SEAT, BATTERY

8GL-82122-00-00

Unavailable

4

BRACKET, BATTERY

8GL-2199G-00-00

$53.80

5

DAMPER

8GL-82176-00-00

Unavailable

6

BOLT, FLANGE

95822-08014-00

$6.58

7

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$25.08

8

FUSE (10A)

42X-82151-00-00

$2.24

9

BOLT, FLANGE

95022-06008-00

$6.17

10

STAY, RELAY

8GL-81953-01-00

Unavailable

11

RIVET, BLIND

90267-47195-00

$3.18
