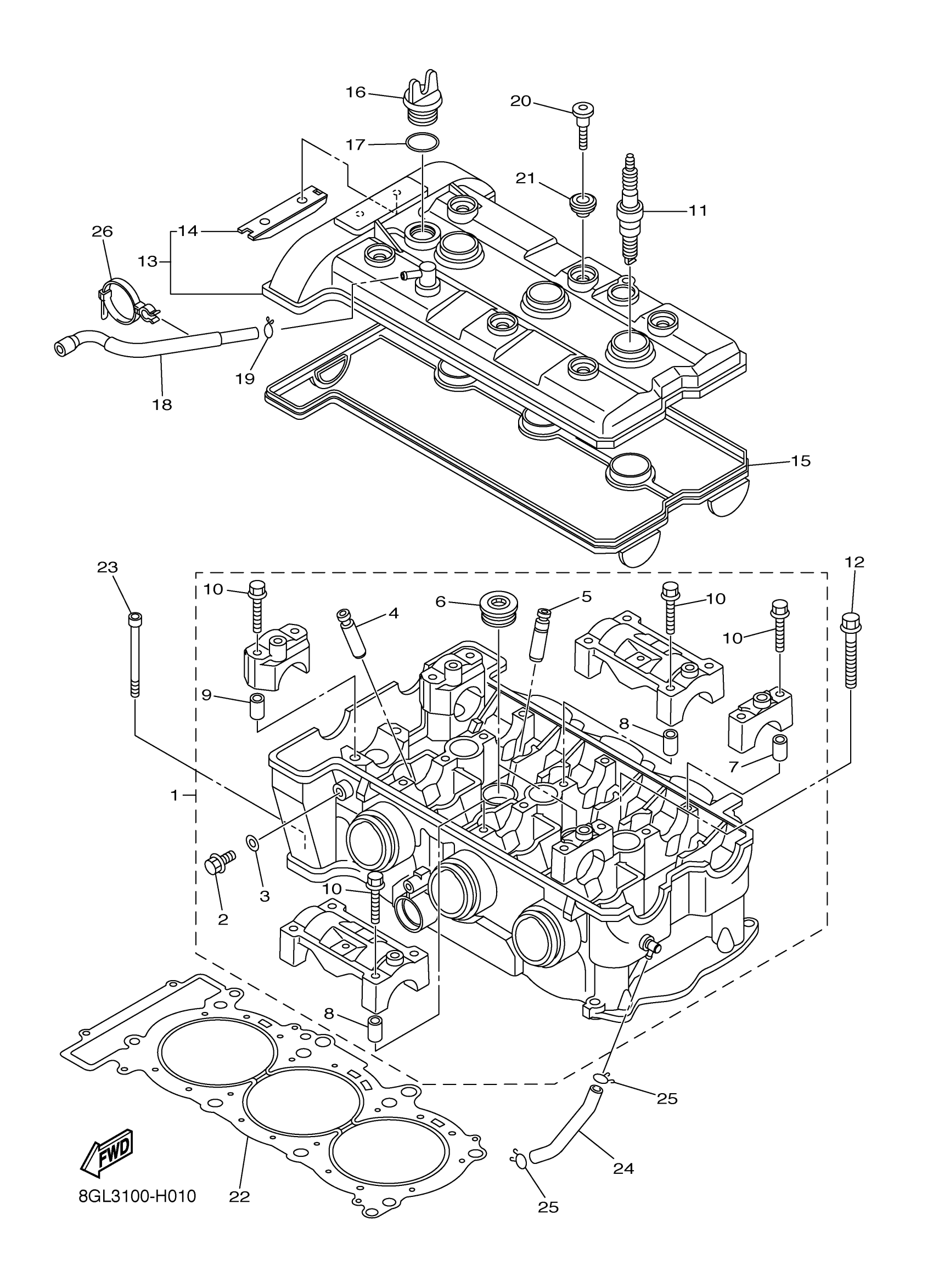

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

8GL-11101-01-00

$1,668.99

2

BOLT, FLANGE

95022-08012-00

$9.51

3

GASKET

90430-08119-00

$4.70

4

GUIDE, VALVE 1

2C0-11133-11-00

$59.59

5

GUIDE, VALVE 2

8HF-11134-10-00

$93.69

6

PLUG, STRAIGHT SCREW

90340-27001-00

$17.68

7

PIN, DOWEL(3XW)

91808-16023-00

$5.48

8

PIN, DOWEL(3XW)

91808-16023-00

$5.48

9

PIN, DOWEL(3XW)

91808-16023-00

$5.48

10

BOLT, WASHER BASED

90105-06027-00

$6.23

11

PLUG, SPARK (NGK R CR9E)

NGK-CR980-00-00

Unavailable

12

BOLT, WITH WASHER

90119-10004-00

$7.91

13

COVER, CYLINDER HEAD 1

8GL-11191-00-00

$164.82

14

GUIDE, STOPPER 2

5BE-12241-01-00

$25.54

15

GASKET, HEAD COVER 1

8GL-11193-00-00

$35.77

16

PLUG, OIL

3Y1-15363-10-00

$17.02

17

O-RING (646)

93210-19123-00

$6.91

18

PIPE, BREATHER 1

8GL-11166-00-00

$14.18

19

CLIP

90467-100A1-00

$6.38

20

BOLT(4BP)

90109-066F0-00

$6.38

21

RUBBER, MOUNT 1

5VY-1111G-00-00

$10.68

22

GASKET, CYLINDER HEAD 1

8GL-11181-20-00

$46.24

23

BOLT, SOCKET

91317-06065-00

$3.26

24

PIPE, OIL 1

8ES-13416-00-00

$6.31

25

CLIP

90467-100A1-00

$6.38

26

CLAMP

90464-30005-00

$4.15
