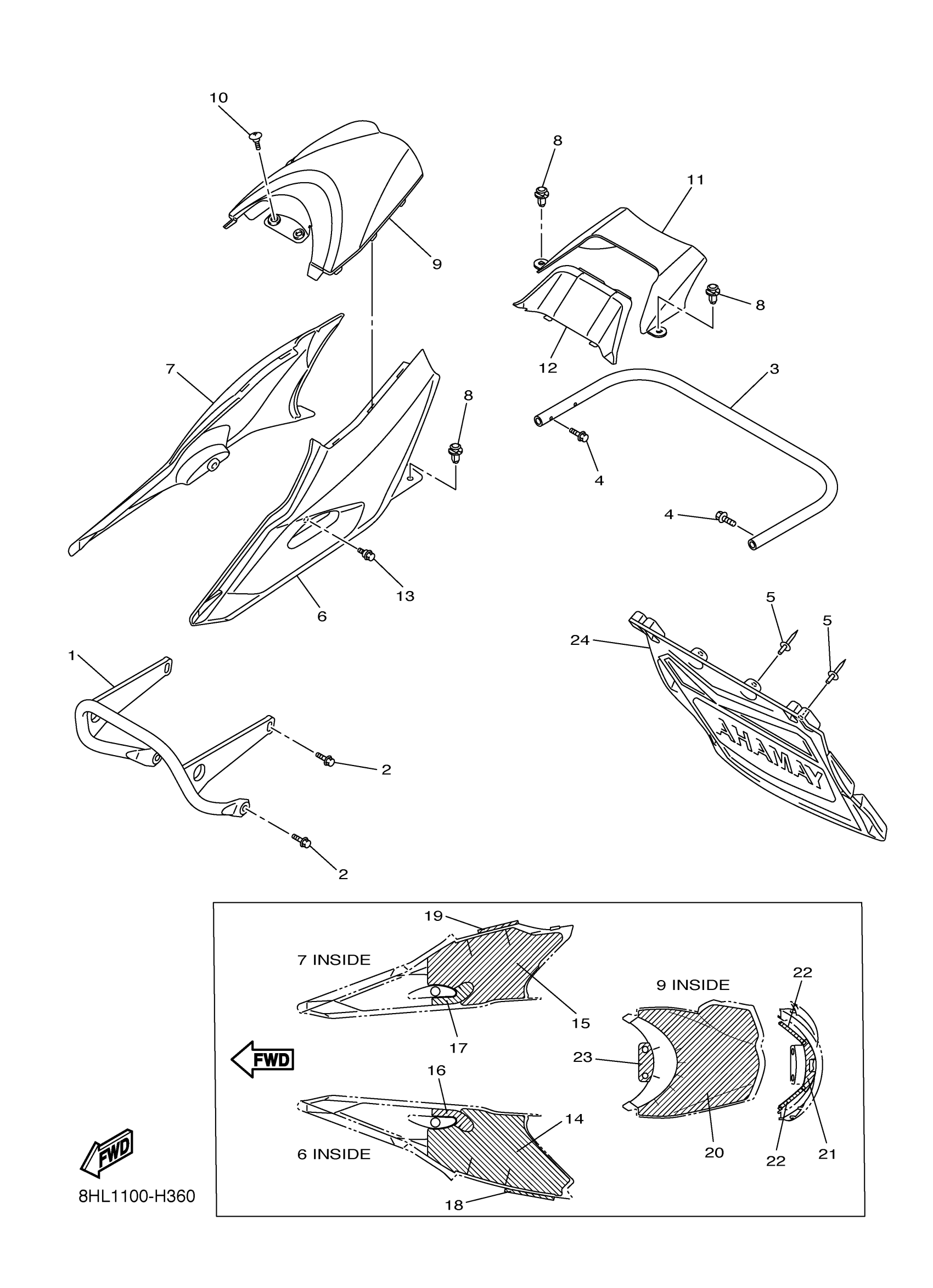

Yamaha FX10XTYW (FXNYTRO XTX) 8HL10 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8GL-77511-00-00

$286.37

2

BOLT, FLANGE

95812-08020-00

$1.69

3

BUMPER, REAR 1

8HL-77541-00-00

$211.88

4

BOLT, FLANGE

95812-08020-00

$1.69

5

RIVET, BLIND

90267-47200-00

$2.28

6

COVER, SIDE 3

8GL-21731-00-00

$68.97

7

COVER, SIDE 4

8GL-21741-00-00

$75.92

8

RIVET

90269-08006-00

$2.72

9

COVER, TAIL

8GL-24756-00-00

$62.52

10

SCREW, BINDING

90154-06009-00

$2.92

11

COVER, TAILLIGHT

8GL-84516-00-00

$26.78

12

COVER

8FS-84544-00-00

Unavailable

13

BOLT

90109-06174-00

$7.35

14

PROTECTOR 1

8GL-77551-00-00

$45.12

15

PROTECTOR 2

8GL-77552-00-00

Unavailable

16

PROTECTOR 3

8GL-77553-00-00

$5.77

17

PROTECTOR 4

8GL-77554-00-00

$5.77

18

PROTECTOR 5

8GL-77555-00-00

$1.91

19

PROTECTOR 5

8GL-77555-10-00

$1.07

20

PROTECTOR 6

8GL-77556-00-00

$48.94

21

PROTECTOR 7

8GL-77557-00-00

$1.54

22

TAPE 1

8GL-7717E-00-00

$1.02

23

LINING, SHROUD 1

8GL-77261-00-00

Unavailable

24

FLAP

8GT-K7595-00-00

Unavailable
