2013 Yamaha FX Nytro XTX (FX10XTDL) Headlight Diagram

← All diagrams

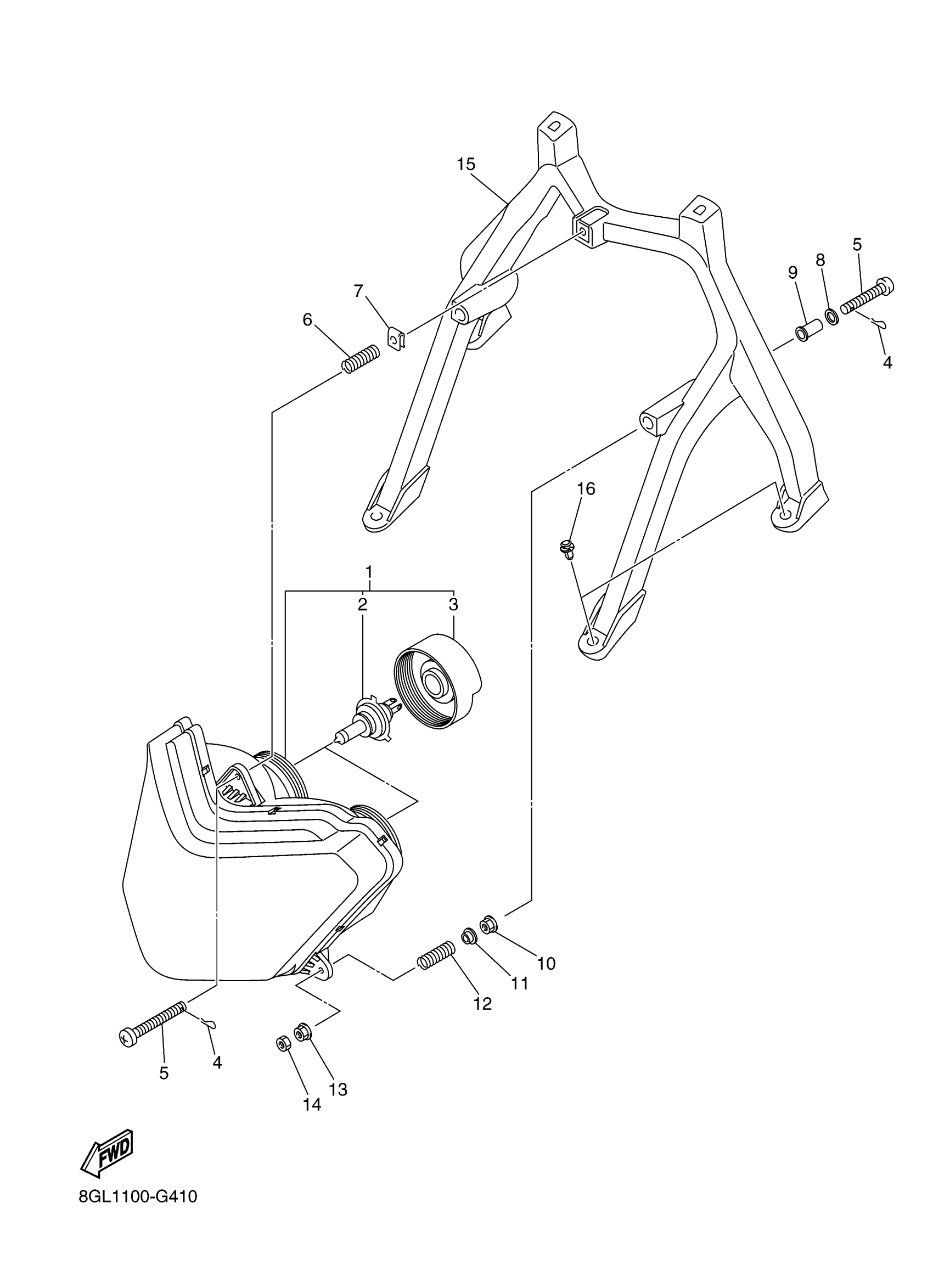

Find the part on the Headlight diagram for your 2013 Yamaha FX Nytro XTX (FX10XTDL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha FX Nytro XTX (FX10XTDL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8GK-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

8GK-84397-01-00

—
Out of stock

4

CLIP

8K4-84374-00-00

1
Out of stock

5

SCREW, ADJUSTING

8M6-84331-00-00

1
Out of stock

6

SPRING, ADJUST SCREW

8A5-84332-00-00

1
Out of stock

7

NUT, SPRING

90183-050A9-00

1
Out of stock

8

WASHER, PLATE(3GM)

90201-050T4-00

1
Out of stock

9

COLLAR(6N6)

90387-05M04-00

—
Out of stock

10

NUT, FLANGE

95702-05500-00

1
Out of stock

11

COLLAR

90387-05035-00

1
Out of stock

12

SPRING (517 CLUTCH)

90501-12369-00

1
Out of stock

13

NUT, FLANGE

95702-05500-00

1
Out of stock

14

NUT, U

95617-05100-00

1
Out of stock

15

STAY, HEADLIGHT 1

8GL-84118-00-00

1
Out of stock

16

RIVET

90269-08005-00

—
Out of stock
