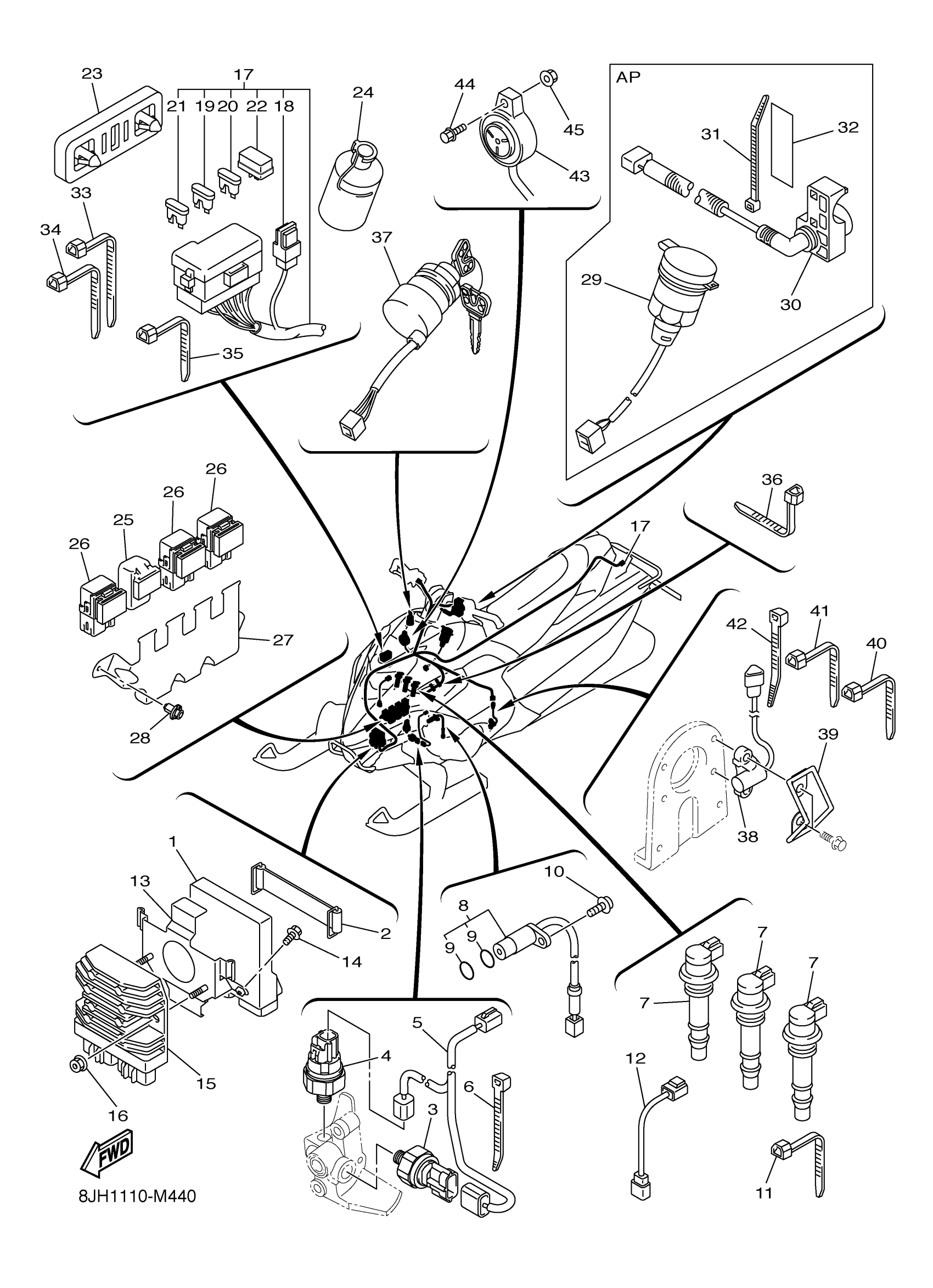

Yamaha FX10XTDL (FX NYTRO XTX) 8HL90 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8GL-8591A-20-00

Unavailable

2

BAND, BATTERY

2T4-82131-00-00

$7.40

3

SENDER, OIL PRESSU

8GN-83651-01-00

$310.32

4

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

5

WIRE, SUB-LEAD

8GL-82318-10-00

$40.83

6

CLAMP

5Y9-12491-00-00

$6.29

7

IGNITION COIL ASSY

8ES-82310-00-00

$128.18

8

PICK-UP ASSY

8GL-81670-01-00

Unavailable

9

O-RING 1

5VY-8A8E1-00-00

$5.55

10

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

$5.18

11

CLAMP(4FM)

90464-15195-00

$2.57

12

LEAD WIRE ASSY

8GL-81515-10-00

Unavailable

13

BRACKET, UNIT

8GL-85991-00-00

$18.92

14

BOLT, FLANGE

95022-06010-00

$5.08

15

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$262.67

16

NUT, U FLANGE

95604-06200-00

Unavailable

17

WIRE HARNESS ASSY

8HK-82590-30-00

Unavailable

18

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

19

. FUSE (10A)

67F-82151-40-00

$6.07

20

FUSE

5JJ-82151-20-00

Unavailable

21

. FUSE (3A)

67F-82151-30-00

$4.69

22

DIODE ASSY

4WA-81980-00-00

Unavailable

23

BRACKET

8FA-83614-00-00

Unavailable

24

COVER

8GL-8252U-00-00

Unavailable

25

RELAY ASSY

5DM-81950-01-00

Unavailable

26

RELAY ASSY (8HG-10

8HG-81951-10-00

Unavailable

27

HOLDER, RELAY

8GL-81952-00-00

Unavailable

28

RIVET

90269-08006-00

Unavailable

29

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

30

TERMINAL COMP.

8HK-8254B-00-00

Unavailable

31

CLAMP(3XW)

90464-35132-00

Unavailable

32

DAMPER

8HF-84527-00-00

Unavailable

33

CLAMP(4FM)

90464-15195-00

$2.57

34

CLAMP(4FM)

90464-15195-00

$2.57

35

CLAMP

90464-13077-00

Unavailable

36

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

37

MAIN SWITCH ASSY

8HK-82510-00-00

Unavailable

38

SENSOR, SPEED

8GL-83755-00-00

Unavailable

39

COVER 2

8GC-2198G-00-00

Unavailable

40

CLAMP(4FM)

90464-15195-00

$2.57

41

CLAMP(3XW)

90464-35132-00

Unavailable

42

CLAMP(4FM)

90464-15195-00

$2.57

43

BUZZER

8GL-83383-00-00

Unavailable

44

SCREW, WITH WASHER

90159-05035-00

Unavailable

45

NUT, S/L FLANGE

95607-05200-00

Unavailable
