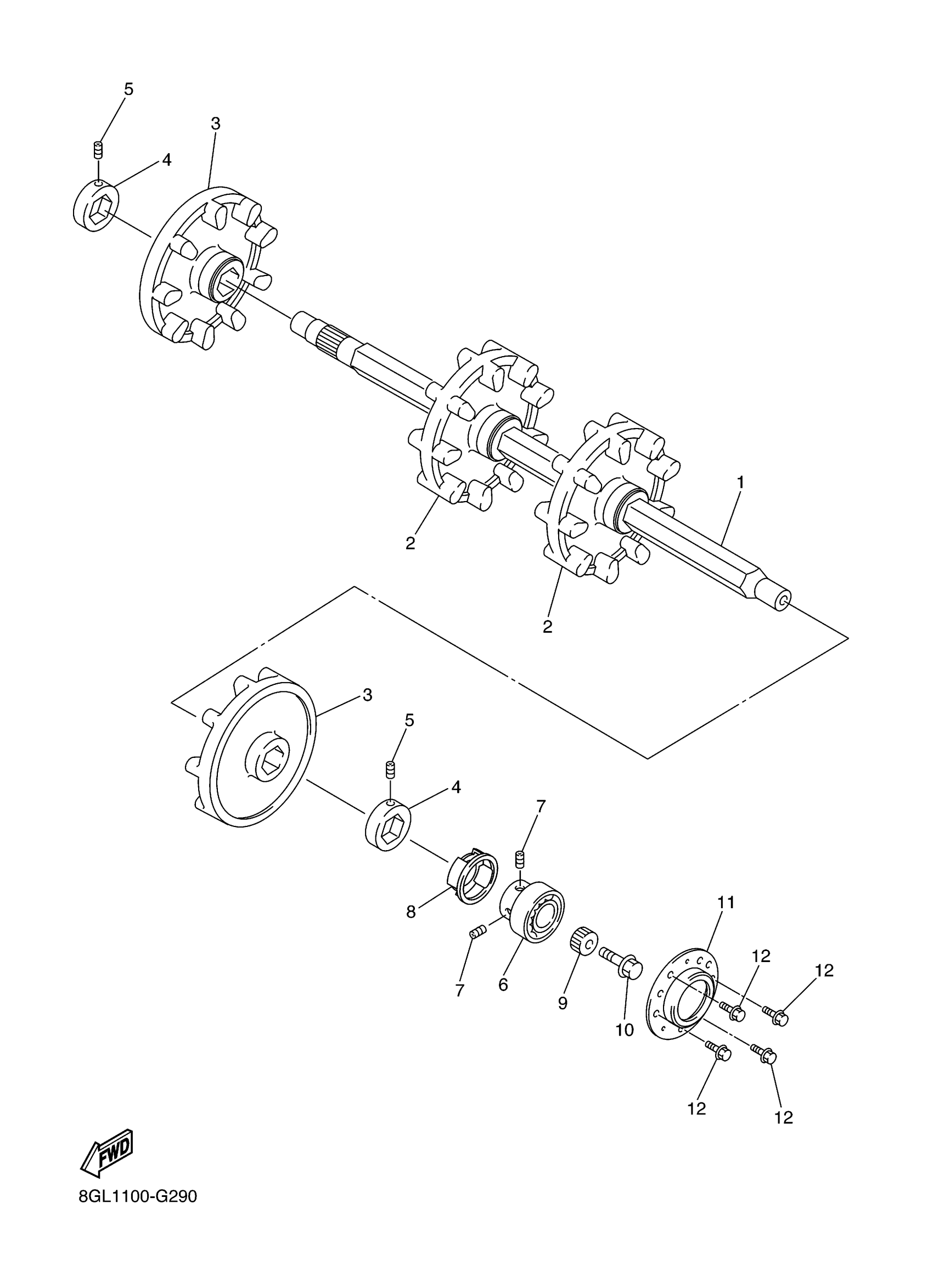

Yamaha FX10XTBL (FX NYTRO XTX) 8HL70 2012 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8GL-47511-20-00

Unavailable

2

WHEEL, SPROCKET 1

8CM-47531-10-00

$145.99

3

WHEEL, SPROCKET 2

8BW-47532-10-00

$122.99

4

COLLAR

8BW-47526-00-00

$59.99

5

BOLT, SET (8K2)

90113-06039-00

$9.49

6

BEARING(8CJ)

93306-20589-00

$59.99

7

BOLT, SET

90113-06006-00

$4.29

8

CAP

8FN-47377-00-00

$28.99

9

JOINT

8EK-47715-00-00

$35.99

10

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

11

HOUSING, FRONT AXLE

8EK-47551-00-00

$10.99

12

BOLT, FLANGE(4LN)

95817-08025-00

$8.49
