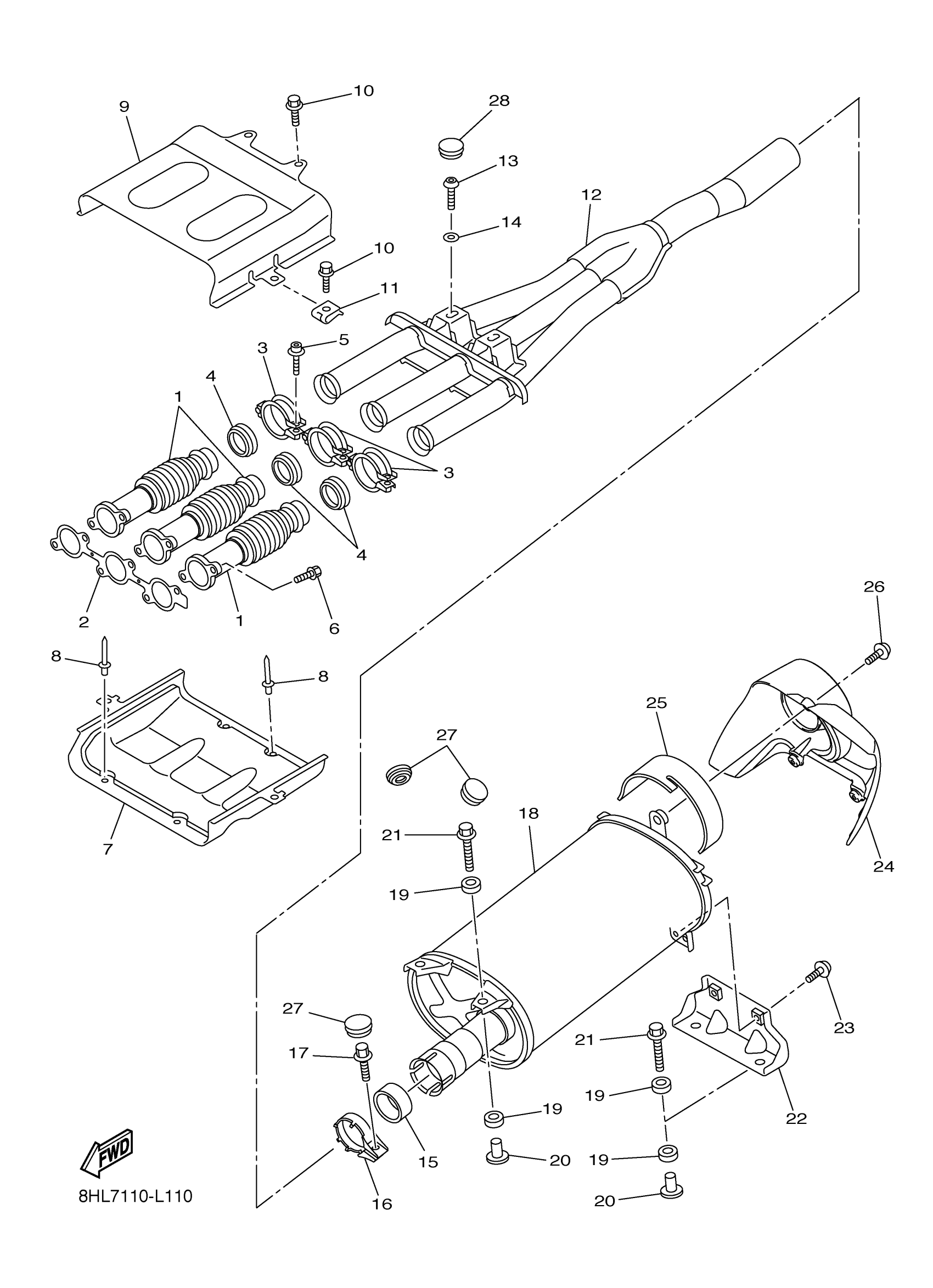

Yamaha FX10XTBL (FX NYTRO XTX) 8HL70 2012 EXHAUST Diagram
#
Description
Price
1
JOINT, EXHAUST 1
8GL-14615-00-00
$180.99
2
GASKET, EXHAUST PIPE
8GL-14613-00-00
$23.99
3
BAND, MUFFLER
8FA-14715-00-00
$37.99
4
GASKET, EXHAUST PIPE
8FA-14623-10-00
$33.99
5
BOLT
90109-06031-00
Unavailable
6
BOLT, FLANGE
95022-08020-00
$8.49
7
COVER, EXHAUST
8GL-14627-00-00
Unavailable
8
RIVET, BLIND
90267-47195-00
$3.88
9
EXHAUST COVER ASS'Y
8GL-14637-00-00
Unavailable
10
BOLT, FLANGE
95812-06010-00
$2.98
11
NUT, SPRING
90183-060A0-00
Unavailable
12
EXHAUST PIPE ASSY 1
8GL-14610-11-00
Unavailable
13
BOLT, BUTTON HEAD
92012-08025-00
$7.49
14
WASHER, PLAIN
92990-08200-00
Unavailable
15
GASKET, MUFFLER
8GL-14714-00-00
$39.99
16
BAND, SILENCER
8GL-14789-00-00
Unavailable
17
BOLT, FLANGE
95812-08020-00
Unavailable
18
SILENCER ASSY
8GL-14750-00-00
Unavailable
19
DAMPER, MUFFLER
8GL-14737-00-00
Unavailable
20
COLLAR
90387-08071-00
Unavailable
21
BOLT, WITH WASHER
90119-08112-00
Unavailable
22
BRACKET
8GL-14744-00-00
Unavailable
23
BOLT, BUTTON HEAD
92012-08012-00
Unavailable
24
CAP
8GL-14799-00-00
Unavailable
25
PROTECTOR, MUFFLER 1
8GL-14718-00-00
Unavailable
26
SCREW, WITH WASHER
90159-06005-00
Unavailable
27
PLUG
90338-20004-00
Unavailable
28
PLUG
90338-20007-00
Unavailable
