Description

Price

1

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

2

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$42.99

3

CAP, WHEEL

8HF-47317-00-00

$15.99

4

BRACKET 7

8CM-47419-10-00

$39.99

5

WASHER, PLATE (2Y4)

90201-10714-00

$7.49

6

COLLAR

90387-10031-00

$21.99

7

WASHER, PLATE

90201-101U2-00

$7.49

8

BOLT, FLANGE

90105-10241-00

$8.49

9

NUT, S/L FLANGE

95602-10200-00

$4.82

10

BOLT

90101-08063-00

$7.49

11

NUT, SELF-LOCKING

95602-08200-00

$3.20

12

BRACKET 7

8ES-47419-00-00

$27.99

13

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

14

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$42.99

15

WASHER, PLATE

90201-101U2-00

$7.49

16

BOLT, FLANGE

90105-10150-00

Unavailable

17

NUT, S/L FLANGE

95602-10200-00

$4.82

18

SUSPENSION WHEEL COMP.

8GP-47320-10-00

Unavailable

19

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

20

BEARING(8AB)

93306-00444-00

Unavailable

21

CIRCLIP(5U8)

99009-42500-00

Unavailable

22

COLLAR

8GP-47319-00-00

Unavailable

23

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

24

WASHER, PLATE

90201-10052-00

Unavailable

25

BRACKET 7

8GP-47419-10-00

Unavailable

26

BOLT, FLANGE

95817-10030-00

Unavailable

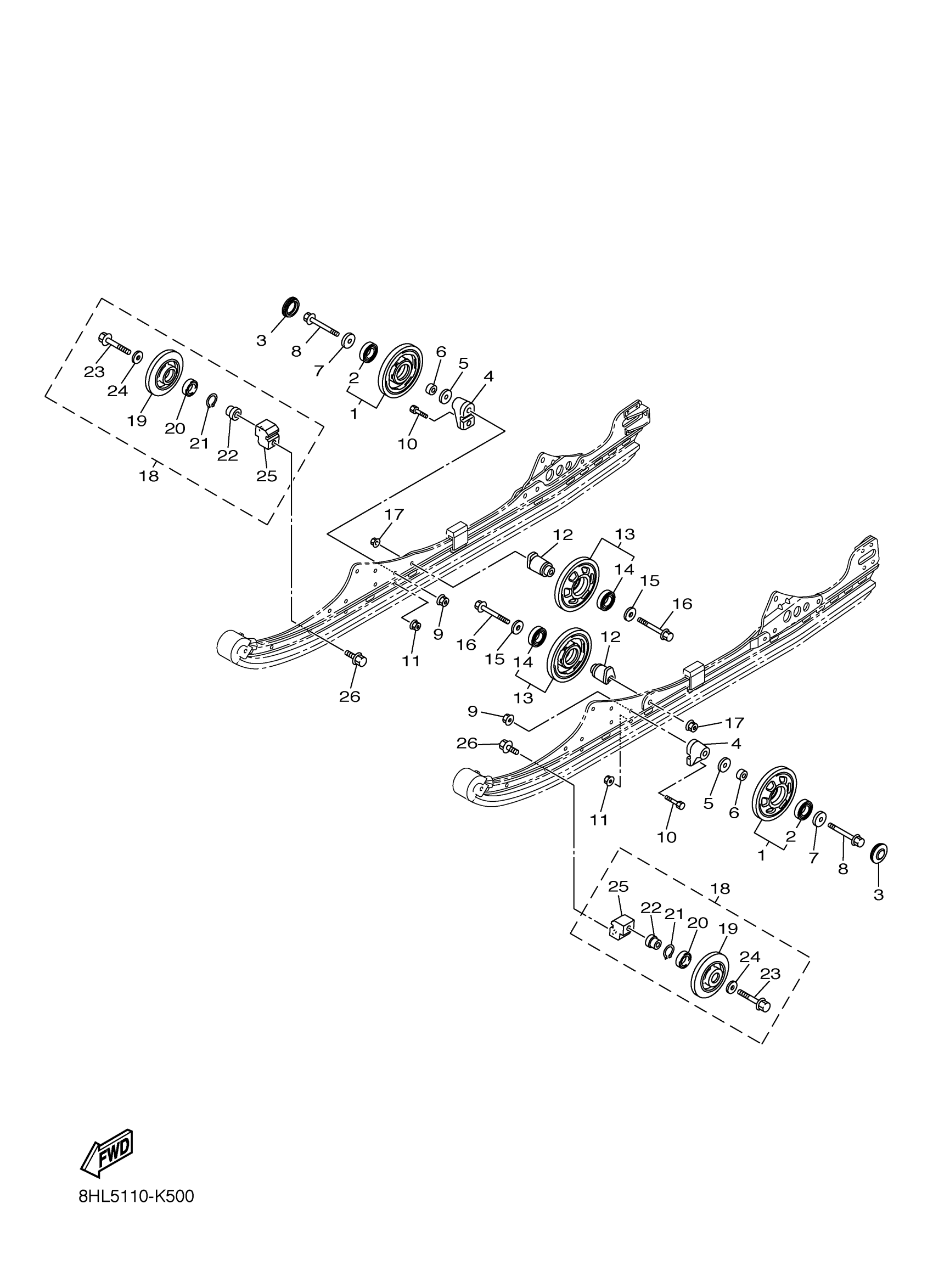

Yamaha FX10XT75EL (FX NYTRO XTX 1.75) 8JJ30 2014 ALTERNATE TRACK SUSPENSION Diagram

WHEEL BLK 130MM

BRG,R-B 6005 47MM 85G KY

CAP, WHEEL

BRACKET 7

WASHER, PLATE (2Y4)

COLLAR

WASHER, PLATE

BOLT, FLANGE

NUT, S/L FLANGE

BOLT

NUT, SELF-LOCKING

BRACKET 7

WHEEL BLK 130MM

BRG,R-B 6005 47MM 85G KY

WASHER, PLATE

BOLT, FLANGE

NUT, S/L FLANGE

SUSPENSION WHEEL COMP.

SUSPENSION WHEEL COMP.

BEARING(8AB)

CIRCLIP(5U8)

COLLAR

BOLT, FLANGE (8V9)

WASHER, PLATE

BRACKET 7

BOLT, FLANGE
