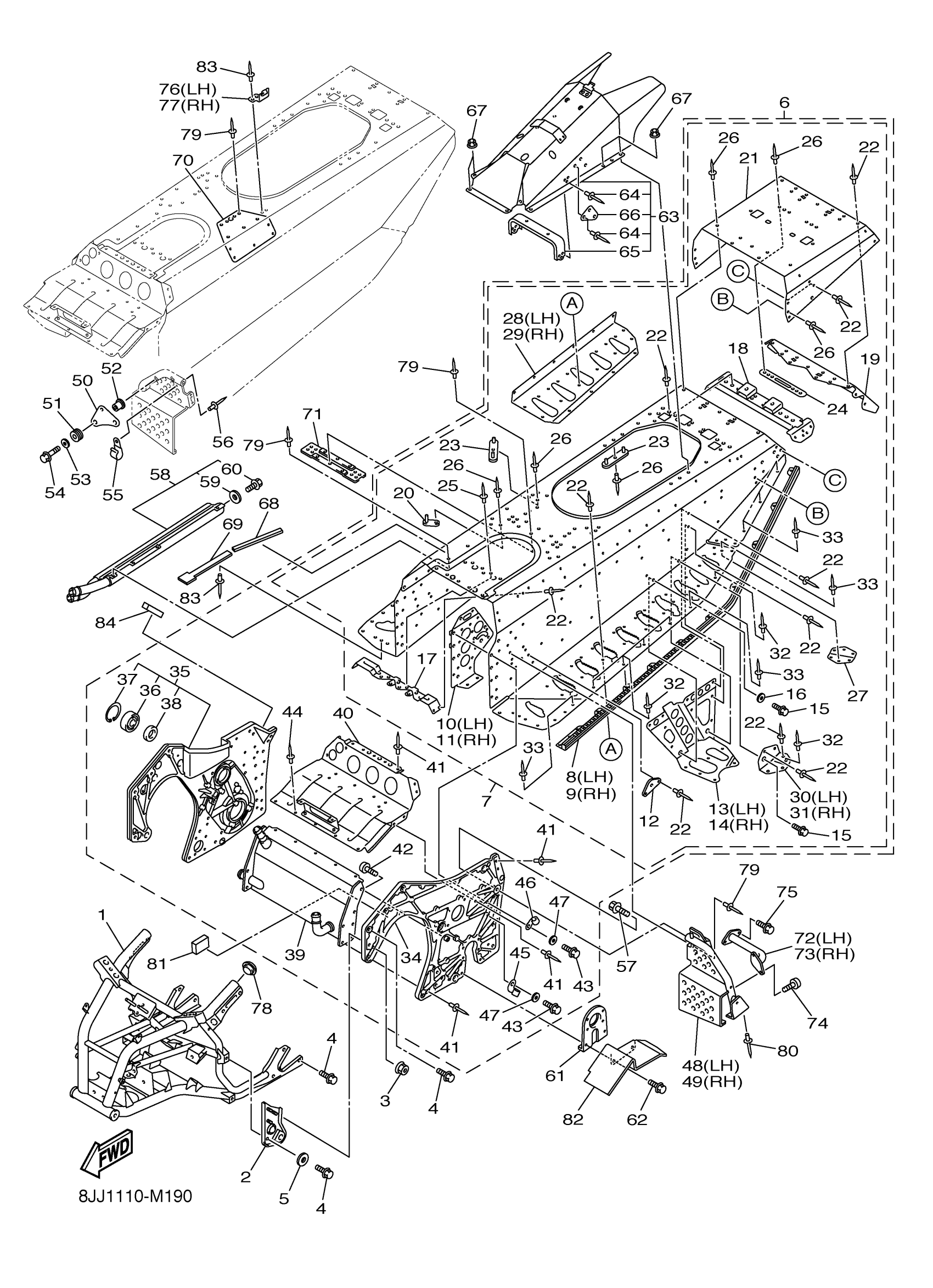

Yamaha FX10XT75DL (FX NYTRO XTX 1.75) 8JJ10 2013 FRAME Diagram
#
1
FRONT FRAME COMP.
8GL-21940-03-00
Unavailable
2
BRACKET, ENGINE
8GL-2194E-00-00
$64.99
3
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
4
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
5
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
6
REAR FRAME COMP.
8JJ-21950-00-00
Unavailable
7
. REAR FRAME COMP
8JJ-21950-09-00
Unavailable
8
REINFORCEMENT, FOOTREST 1
8HK-21926-00-00
Unavailable
9
REINFORCEMENT, FOOTREST 2
8HK-21936-00-00
$234.99
10
BRACKET, MAIN TRACK 1
8HL-21943-00-00
Unavailable
11
BRACKET, MAIN TRACK 2
8HL-21953-00-00
$115.99
12
BRACKET, MAIN TRACK 3
8FU-21919-00-00
Unavailable
13
BRACKET, RR.TRACK SUSPENTION 1
8HL-21944-00-00
Unavailable
14
BRACKET, RR.TRACK SUSPENTION 2
8HL-21954-00-00
$108.99
15
BOLT, FLANGE
95817-10020-00
$8.49
16
WASHER, PLATE
90201-10035-00
Unavailable
17
PROTECTOR, MUFFLER
8GL-2194H-00-00
Unavailable
18
BRACKET 7
8GL-2197N-00-00
Unavailable
19
REINEFORCEMENT, FRAME REAR 1
8HL-21923-00-00
Unavailable
20
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
21
PANEL, SUB FRAME 6
8HL-21917-01-00
Unavailable
22
RIVET, BLIND
90267-47195-00
Unavailable
23
BRACKET 8
8GL-22512-00-00
Unavailable
24
NUT
8GL-21295-00-00
Unavailable
25
RIVET, BLIND
90267-48010-00
Unavailable
26
RIVET, BLIND
90267-48023-00
Unavailable
27
PATCH 1
8HK-21961-00-00
Unavailable
28
PATCH 3
8HK-21963-00-00
Unavailable
29
PATCH 4
8HK-21964-00-00
Unavailable
30
PATCH 5
8HK-21965-00-00
Unavailable
31
PATCH 6
8HK-21966-00-00
Unavailable
32
RIVET, BLIND
90267-48016-00
Unavailable
33
RIVET, BLIND
90267-48177-00
Unavailable
34
REINF., HOUSING 1
8GL-21925-00-00
Unavailable
35
HOUSING, REINF SUB-ASSY(R.H)
8GL-21930-00-00
Unavailable
36
BEARING (5X5)
93306-20627-00
Unavailable
37
CIRCLIP(MF1)
99009-62500-00
Unavailable
38
OIL SEAL
93102-30012-00
Unavailable
39
HEAT EXCHANGER ASSY
8HA-12440-00-00
Unavailable
40
PANEL, SUB FRAME 4
8GL-21915-00-00
Unavailable
41
RIVET, BLIND
90267-47195-00
Unavailable
42
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
43
BOLT, HEXAGON
97017-08016-00
Unavailable
44
RIVET, BLIND
90267-48010-00
Unavailable
45
CLAMP
90462-08061-00
Unavailable
46
CLAMP
90462-08064-00
Unavailable
47
WASHER, PLATE (5F7)
90201-08512-00
Unavailable
48
FOOTREST COMP. 1
8GL-21960-00-00
Unavailable
49
FOOTREST COMP. 2
8GL-21970-02-00
Unavailable
50
STAY, BUZZER
8JH-83386-00-00
Unavailable
51
GROMMET
90480-14004-00
Unavailable
52
COLLAR 437216330000
90387-07391-00
Unavailable
53
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
54
BOLT, FLANGE
95822-06025-00
Unavailable
55
CLAMP
90462-06022-00
Unavailable
56
RIVET, BLIND
90267-48023-00
Unavailable
57
BOLT, FLANGE
95817-10030-00
Unavailable
58
HEAT EXCHANGER ASSY 4
8HA-1241A-00-00
Unavailable
59
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
60
BOLT(3JP)
97017-06010-00
Unavailable
61
HOUSING, REINF SUB-ASSY(L.H)
8GL-21920-00-00
Unavailable
62
BOLT, FLANGE
95812-08020-00
Unavailable
63
PANEL, SUB FRAME 5
8GL-21916-00-00
Unavailable
64
RIVET, BLIND
90267-47195-00
Unavailable
65
STAY, MUFFER
8GL-2194L-00-00
Unavailable
66
BRACKET, SEAT FITTING
8GL-21946-00-00
Unavailable
67
NUT, CROWN
90176-06016-00
Unavailable
68
SEAL, GUARD
8GL-22151-00-00
Unavailable
69
SEAL, GUARD
8GL-22152-00-00
Unavailable
70
PATCH 7
8GL-21967-00-00
Unavailable
71
PATCH 8
8GL-21988-00-00
Unavailable
72
BAR, FOOTREST 1
8GL-27471-00-00
Unavailable
73
BAR, FOOTREST 2
8GL-27472-00-00
Unavailable
74
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
75
BOLT, FLANGE
95817-06012-00
Unavailable
76
BRACKET, REAR FENDER 1
8GL-21151-00-00
Unavailable
77
BRACKET, REAR FENDER 2
8GL-21152-00-00
Unavailable
78
CAP, REAR ARM
180-22117-00-00
Unavailable
79
RIVET, BLIND
90267-47195-00
Unavailable
80
RIVET, BLIND
90267-48016-00
Unavailable
81
DAMPER
8GL-21852-00-00
Unavailable
82
PROTECTOR, FRAME
8GL-2197B-00-00
Unavailable
83
RIVET, BLIND
90267-48023-00
Unavailable
84
DAMPER, PLATE
90520-05012-00
Unavailable
