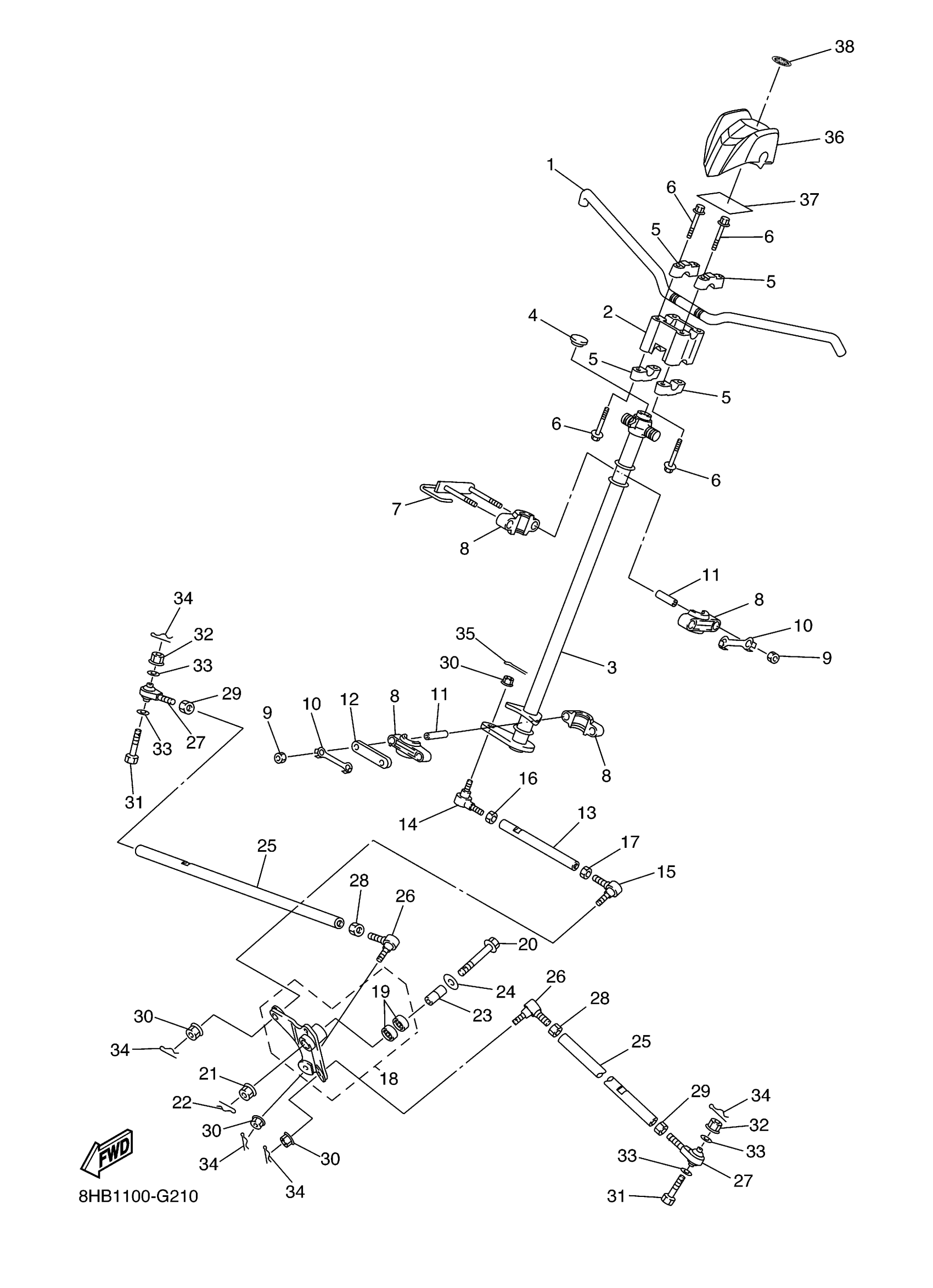

Yamaha FX10RTRYL (FX NYTRO RTX) 8HB50 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8HB-26111-00-00

$133.38

2

JOINT

8HB-2381B-00-00

$223.40

3

COLUMN, STEERING 2

8HB-23813-00-00

Unavailable

4

PLUG (7Y6)

90338-21145-00

$11.69

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

6

BOLT, FLANGE

95817-08035-00

$6.68

7

HOLDER, BEARING

8GL-23872-00-00

$21.23

8

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

9

NUT(6L2)

95333-08600-00

$3.20

10

WASHER, LOCK 1

1UY-23894-01-00

$6.86

11

COLLAR

8HF-2412G-00-00

$6.18

12

HOLDER 2

8FA-23867-00-00

$2.49

13

ROD, STEERING RELAY

8GL-23821-00-00

$38.88

14

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

15

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

16

NUT (682)

95380-10700-00

$5.78

17

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

18

ARM PIVOT ASSY

8GL-2389K-00-00

$167.83

19

BEARING

93317-420A7-00

$39.17

20

BOLT, FLANGE

90105-12070-00

$13.71

21

NUT, SELF-LOCKING

95602-12200-00

$3.82

22

PIN, COTTER

91490-20035-00

$3.25

23

COLLAR

8GL-2412G-00-00

$17.31

24

WASHER, PLATE

90201-13016-00

$5.34

25

ROD, TIE

8HK-23831-00-00

$51.86

26

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

27

JOINT, UNIVERSAL 3

8GC-23847-00-00

$68.89

28

NUT (682)

95380-10700-00

$5.78

29

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

30

NUT, FLANGE(3BM)

95704-10500-00

$1.71

31

BOLT

8GC-23493-00-00

$6.18

32

NUT,FLANGE(J10)

95702-08500-00

$0.80

33

WASHER, PLATE

90201-06018-00

$3.74

34

PIN, COTTER (648)

91490-20015-00

$1.85

35

PIN, COTTER

91490-20025-00

$1.31

36

PROTECTOR, HANDLEBAR

8GL-26124-00-00

$21.78

37

DAMPER

8GL-26113-00-00

$1.42

38

EMBLEM

8AC-2414B-01-00

$33.63
