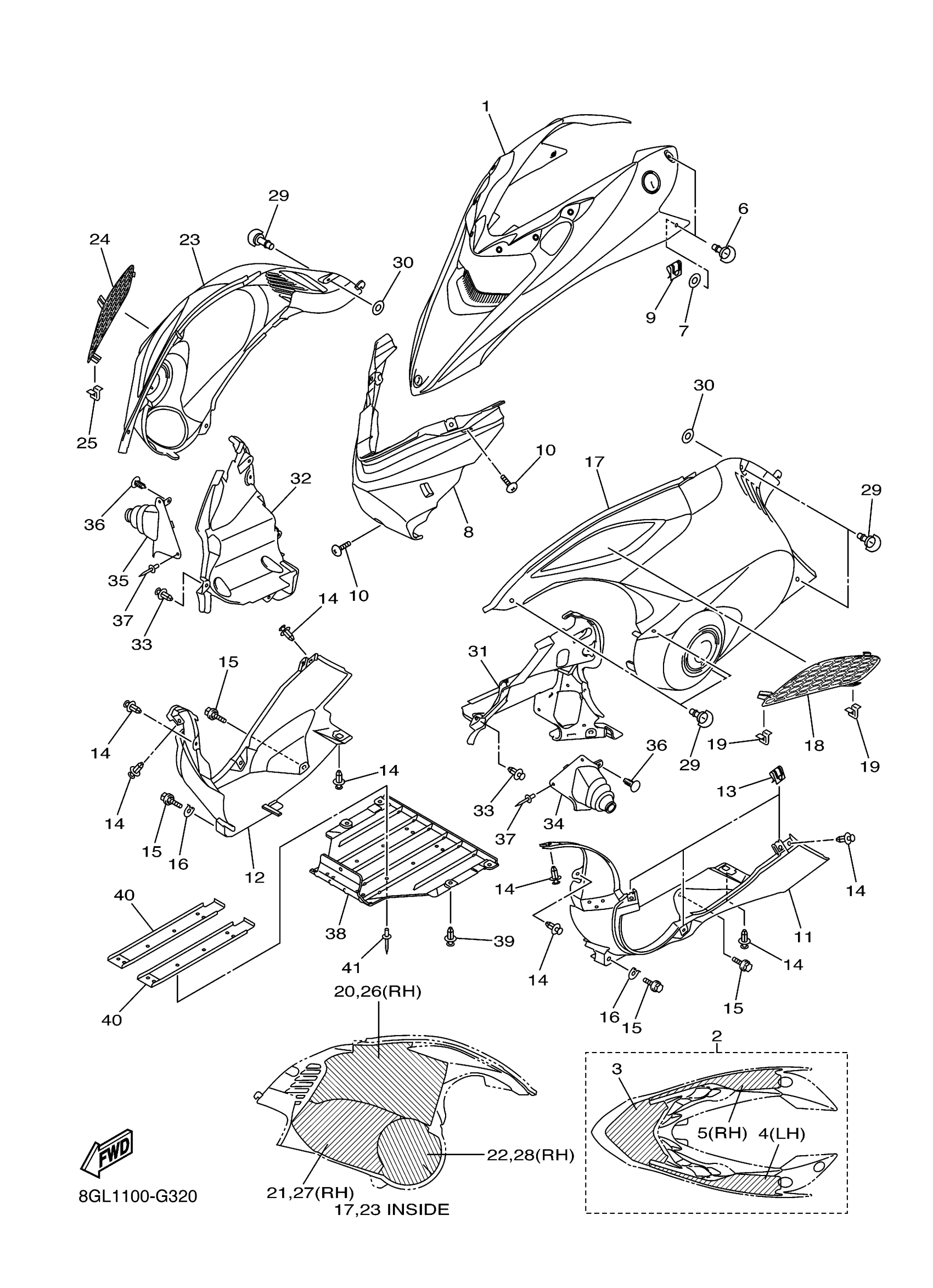

Yamaha FX10RTRYL (FX NYTRO RTX) 8HB50 2009 SHROUD Diagram

#

Description
Price

1

SHROUD

8GL-77111-40-00

$303.89

2

LINING SET

8GL-W7726-00-00

$52.60

3

DAMPER, NOISE 11

8GL-77271-00-00

$14.98

4

DAMPER, NOISE 12

8GL-77272-00-00

$15.92

5

DAMPER, NOISE 13

8GL-77273-00-00

$15.92

6

HEAD

3FV-28386-00-00

$22.96

7

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.43

8

PANEL, SUB FRAME 1

8GL-21912-00-00

$141.46

9

PLATE, SPRING

4XV-2177L-01-00

$6.20

10

SCREW(2XF)

90149-06263-00

$5.21

11

HOOD 1

8GL-21982-00-00

$155.11

12

HOOD 2

8GL-21983-00-00

$170.15

13

PLATE, SPRING

4XV-2177L-01-00

$6.20

14

RIVET

90269-08006-00

$2.72

15

BOLT

90109-06174-00

$7.35

16

PLATE 1

8GL-77185-00-00

$6.42

17

HOOD 3

8GL-2197H-00-00

$240.69

18

LOUVER 5

8GL-77109-01-00

$75.37

19

CLIP

90468-06001-00

$3.49

20

DAMPER, NOISE 14

8GL-77274-00-00

$28.74

21

DAMPER, NOISE 15

8GL-77275-00-00

$15.88

22

DAMPER, NOISE 16

8GL-77276-00-00

$10.45

23

HOOD 4

8GL-2198H-00-00

$240.69

24

LOUVER 6

8GL-77108-00-00

$75.37

25

CLIP

90468-06001-00

$3.49

26

DAMPER, NOISE 17

8GL-77277-00-00

$28.74

27

DAMPER, NOISE 18

8GL-77278-00-00

$15.88

28

DAMPER, NOISE 19

8GL-77279-00-00

$10.45

29

HEAD

3FV-28386-00-00

$22.96

30

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.43

31

FRAME UNDER 1

8GL-2196A-00-00

$111.83

32

FRAME, UNDER 2

8GL-2196E-00-00

Unavailable

33

RIVET

90269-08006-00

$2.72

34

COVER 1

8GL-2198F-00-00

$29.66

35

COVER 3

8GL-2198J-00-00

$29.66

36

RIVET

90269-05003-00

$1.78

37

RIVET, BLIND

90267-48024-00

$1.88

38

PROTECTOR

8GL-2193A-00-00

$51.86

39

RIVET

90269-08006-00

$2.72

40

PATCH 10

8GL-21997-00-00

$25.22

41

RIVET, BLIND

90267-48018-00

$7.35
