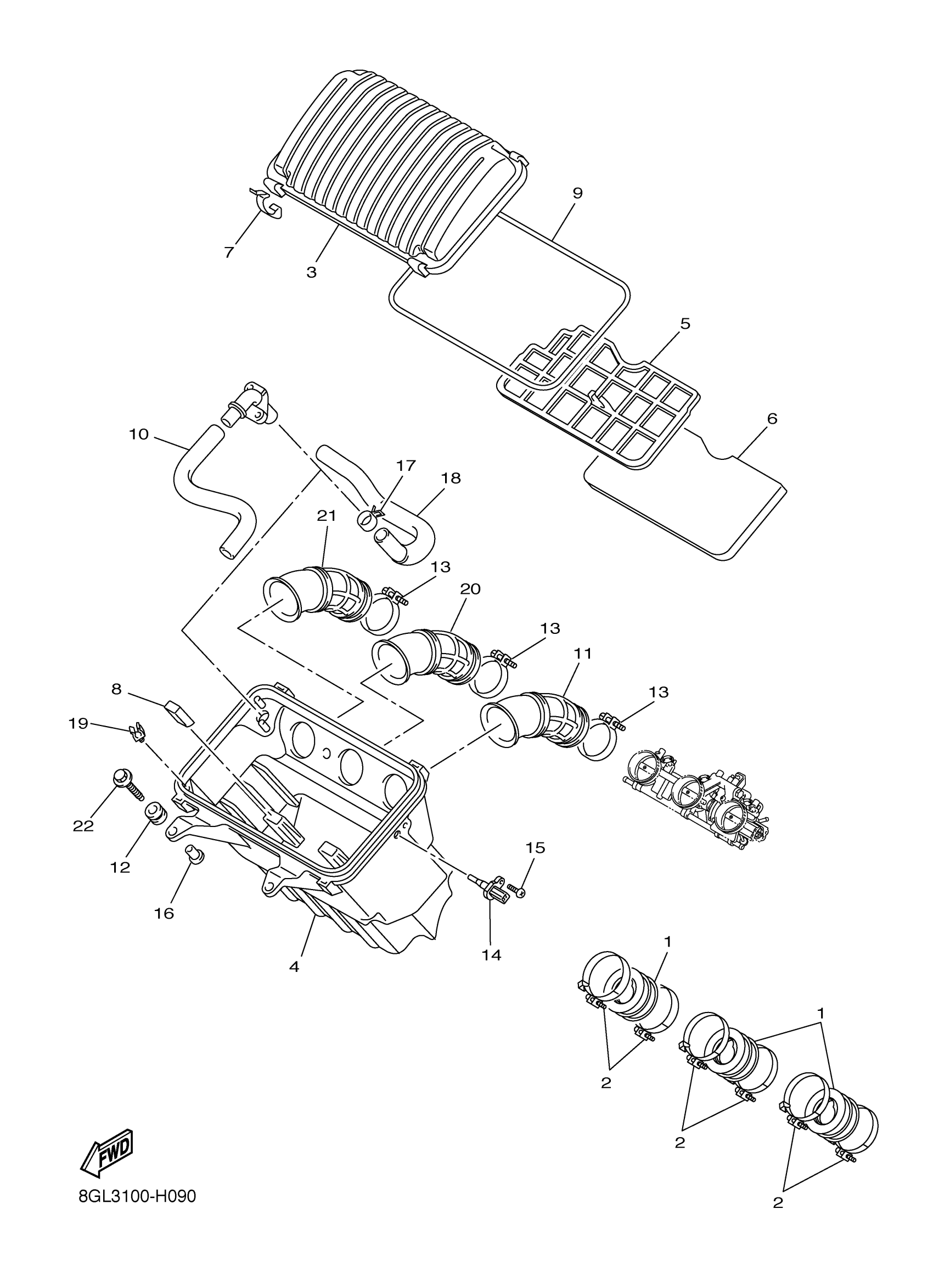

Yamaha FX10RTRYL (FX NYTRO RTX) 8HB50 2009 INTAKE Diagram

#

Description
Price

1

JOINT

8GL-13595-00-00

$16.69

2

HOSE CLAMP ASSY

90450-60004-00

$14.64

3

SILENCER, INTAKE 1

8GL-14431-00-00

$37.94

4

SILENCER, INTAKE 2

8GL-W1444-10-00

Unavailable

5

PLATE, ELEMENT

8GL-14472-00-00

Unavailable

6

ELEMENT, AIR CLEANER

8GL-14451-00-00

$8.31

7

HOOK

8GL-14436-00-00

Unavailable

8

DAMPER 1

8GL-14425-00-00

Unavailable

9

SEAL

8GL-14452-00-00

$3.49

10

PIPE

8GL-14419-00-00

Unavailable

11

JOINT, AIR CLEANER 1

8GL-14453-00-00

$25.32

12

GROMMET

90480-14198-00

$7.60

13

HOSE CLAMP ASSY

90450-56007-00

$11.49

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$49.83

15

SCREW, PANHEAD TAPPING

97702-50520-00

$0.28

16

COLLER (6F5)

90387-08M45-00

$3.84

17

CLIP(34X)

90467-22097-00

$7.14

18

PIPE, OIL TANK BREATHER

8GL-21745-00-00

$40.46

19

HOLDER, GUIDE

8GL-14459-00-00

$2.15

20

JOINT, AIR CLEANER 2

8GL-14463-00-00

$28.28

21

JOINT

8GL-14454-00-00

$28.28

22

BOLT, WITH WASHER

90119-06231-00

Unavailable
