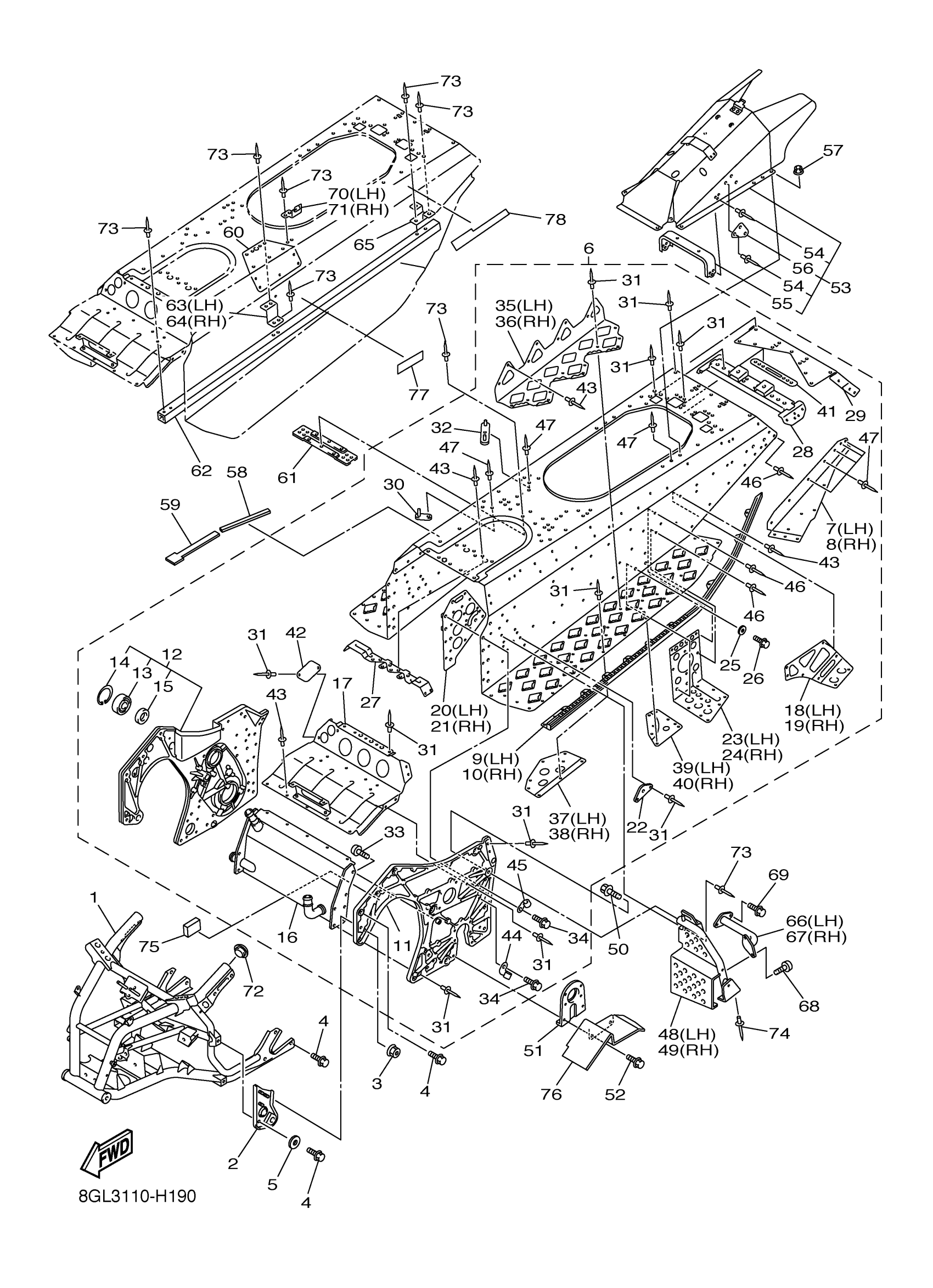

Yamaha FX10RTRYL (FX NYTRO RTX) 8HB50 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GL-21940-03-00

$1,292.99

2

BRACKET, ENGINE

8GL-2194E-00-00

Unavailable

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$7.31

4

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

5

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

6

REAR FRAME COMP.

8GL-21950-01-00

Unavailable

7

. BRACKET, FOOTREST 1

8GL-27452-00-00

Unavailable

8

. BRACKET, FOOTREST 2

8GL-27462-00-00

Unavailable

9

REINFORCEMENT, FOOTREST 1

8GL-21926-01-00

$198.95

10

REINFORCEMENT, FOOTREST 2

8GL-21936-01-00

Unavailable

11

REINF., HOUSING 1

8GL-21925-00-00

Unavailable

12

HOUSING, REINF SUB-ASSY(R.H)

8GL-21930-00-00

Unavailable

13

BEARING (5X5)

93306-20627-00

$66.08

14

CIRCLIP(MF1)

99009-62500-00

$6.23

15

OIL SEAL

93102-30012-00

$29.09

16

HEAT EXCHANGER ASSY

8GL-12440-00-00

$611.99

17

PANEL, SUB FRAME 4

8GL-21915-00-00

Unavailable

18

PATCH 3

8GL-21963-00-00

$33.89

19

PATCH 4

8GL-21964-00-00

$33.89

20

BRACKET, MAIN TRACK 1

8GL-21943-00-00

$65.48

21

BRACKET, MAIN TRACK 2

8GL-21953-00-00

Unavailable

22

BRACKET, MAIN TRACK 3

8FU-21919-00-00

$4.65

23

BRACKET, RR.TRACK SUSPENTION 1

8GL-21944-00-00

$67.83

24

BRACKET, RR.TRACK SUSPENTION 2

8GL-21954-00-00

$67.83

25

WASHER, PLATE

90201-10064-00

$3.60

26

BOLT, FLANGE

95817-10020-00

$5.10

27

PROTECTOR, MUFFLER

8GL-2194H-00-00

$65.03

28

BRACKET 7

8GL-2197N-00-00

$103.06

29

REINEFORCEMENT, FRAME REAR 1

8GL-21923-00-00

$95.48

30

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

31

RIVET, BLIND

90267-47195-00

$3.33

32

BRACKET 8

8GL-22512-00-00

$6.74

33

BOLT, BUTTON HEAD

92012-08016-00

$6.98

34

BOLT, FLANGE

95022-08016-00

$0.55

35

REINFORCEMENT, RR. FOOTREST 1

8HB-21927-00-00

$136.82

36

. REINFORCEMENT, REAR FOOTREST 2

8HB-21937-00-00

Unavailable

37

PATCH 1

8GL-21961-00-00

$20.03

38

PATCH 2

8GL-21962-00-00

$20.03

39

PATCH 5

8GL-21965-00-00

$15.42

40

PATCH 6

8GL-21966-00-00

$15.42

41

NUT

8GL-21295-00-00

$8.97

42

PLATE, COVER

8GL-2131D-00-00

$8.71

43

RIVET, BLIND

90267-48010-00

$2.00

44

CLAMP

90462-08061-00

Unavailable

45

CLAMP

90462-08064-00

Unavailable

46

RIVET, BLIND

90267-48016-00

$7.85

47

RIVET, BLIND

90267-48023-00

$8.18

48

FOOTREST COMP. 1

8GL-21960-00-00

$201.08

49

FOOTREST COMP. 2

8GL-21970-01-00

Unavailable

50

BOLT, FLANGE

95817-10030-00

$6.17

51

HOUSING, REINF SUB-ASSY(L.H)

8GL-21920-00-00

$23.55

52

BOLT, FLANGE

95812-08020-00

$1.69

53

PANEL, SUB FRAME 5

8GL-21916-00-00

$330.69

54

RIVET, BLIND

90267-47195-00

$3.33

55

STAY, MUFFER

8GL-2194L-00-00

$38.37

56

BRACKET, SEAT FITTING

8GL-21946-00-00

Unavailable

57

NUT, CROWN

90176-06016-00

$3.57

58

SEAL, GUARD

8GL-22151-00-00

Unavailable

59

SEAL, GUARD

8GL-22152-00-00

$4.08

60

PATCH 7

8GL-21967-00-00

$19.11

61

PATCH 8

8GL-21988-00-00

Unavailable

62

PROTECTOR, FRAME

8GL-21978-00-00

$72.46

63

BRACKET, 5

8GL-2196M-00-00

$14.02

64

BRACKET, 6

8GL-2197M-00-00

Unavailable

65

BRACKET, PROTECTOR REAR

8GL-21443-00-00

$7.34

66

BAR, FOOTREST 1

8GL-27471-00-00

$47.06

67

BAR, FOOTREST 2

8GL-27472-00-00

$47.06

68

BOLT, BUTTON HEAD

92012-06014-00

$6.18

69

BOLT, FLANGE

95817-06012-00

$1.49

70

BRACKET, REAR FENDER 1

8GL-21151-00-00

Unavailable

71

BRACKET, REAR FENDER 2

8GL-21152-00-00

Unavailable

72

CAP, REAR ARM

180-22117-00-00

$6.52

73

RIVET, BLIND

90267-47195-00

$3.33

74

RIVET, BLIND

90267-48016-00

$7.85

75

DAMPER

8GL-21852-00-00

$2.25

76

PROTECTOR, FRAME

8GL-2197B-00-00

$60.82

77

PLATE, EPA OFFROAD 2

8GL-2179D-10-00

$3.25

78

GRAPHIC 1

8GL-2199A-40-00

Unavailable
